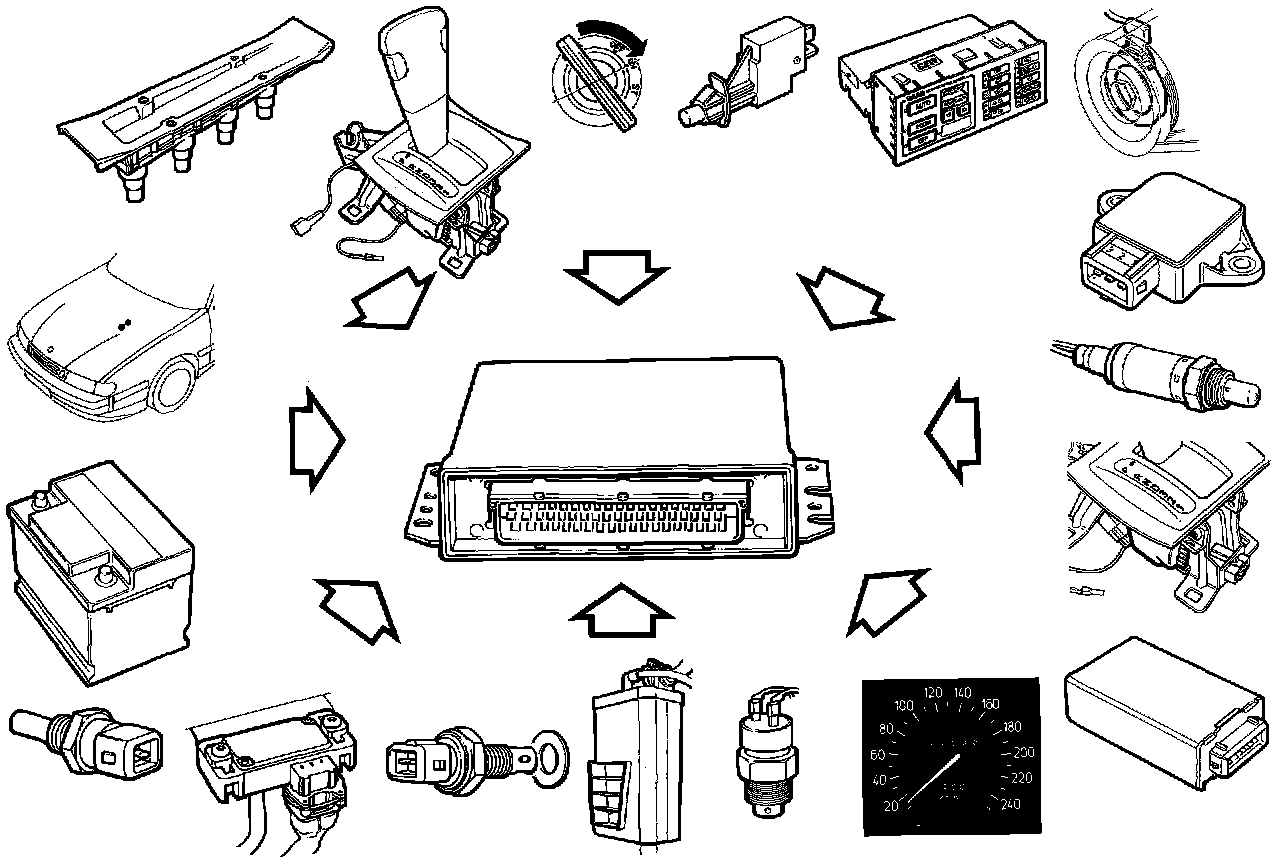

Signal Overview
ECM Inputs:
^
Knocking signal
^
Combustion detection
^
DRIVE signal
^
Ignition switch^
Brake signal^
A/C on
^
Crankshaft position sensor^
Throttle position sensor^
Heated oxygen sensor
^
Torque limiting
^
Cruise Control
^
Vehicle speed
^
Cooling fan on
^
Canister purge valve
^
Intake air temperature
^
Intake manifold pressure
^
Engine coolant temperature
^
Battery positive voltage
^
Ground
