Engine Speed

Engine Speed:

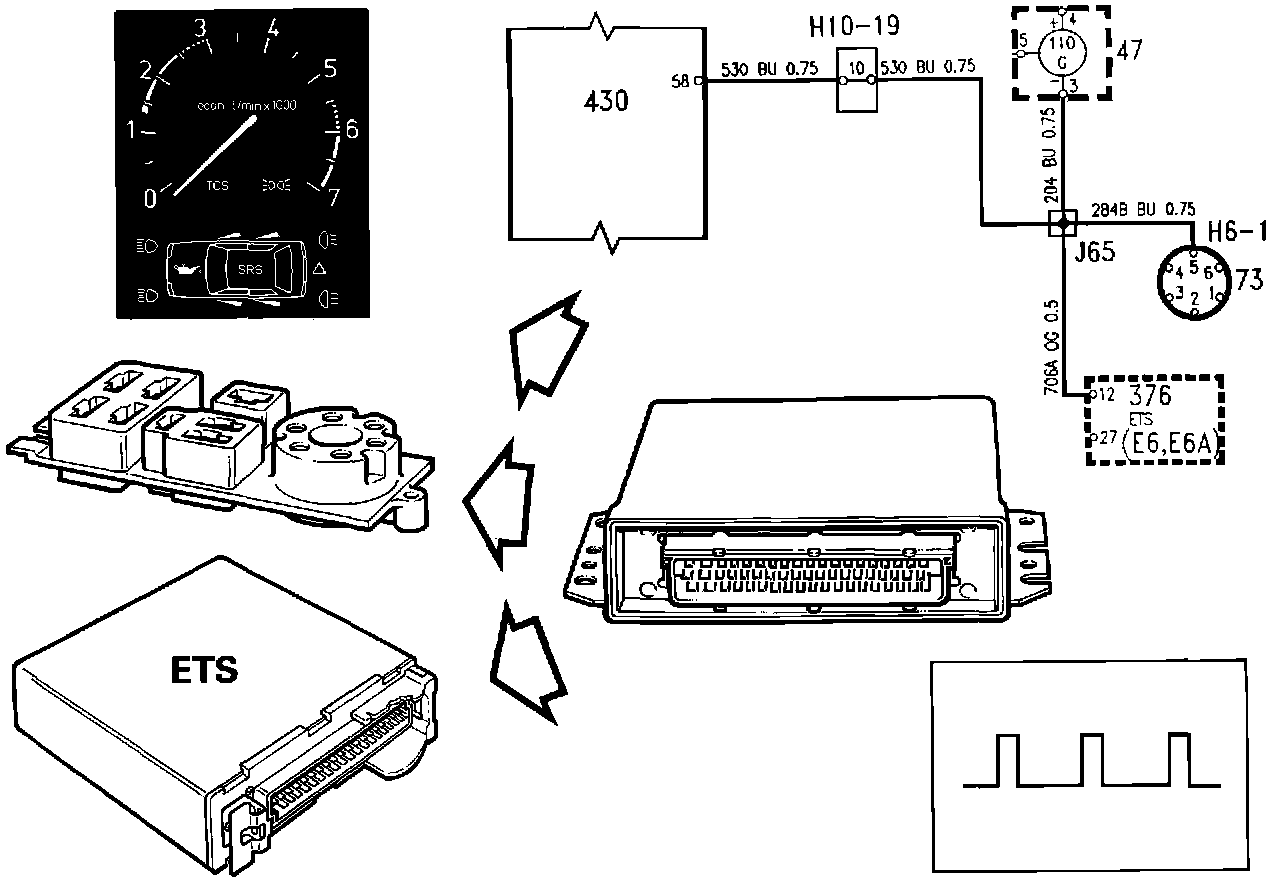

An engine speed signal (Td) is sent from pin 58 of the ECM to pin 3 of the tachometer (rev counter) and to pin 5 of the TSI instrument.
