Boost Solenoid: Service and Repair

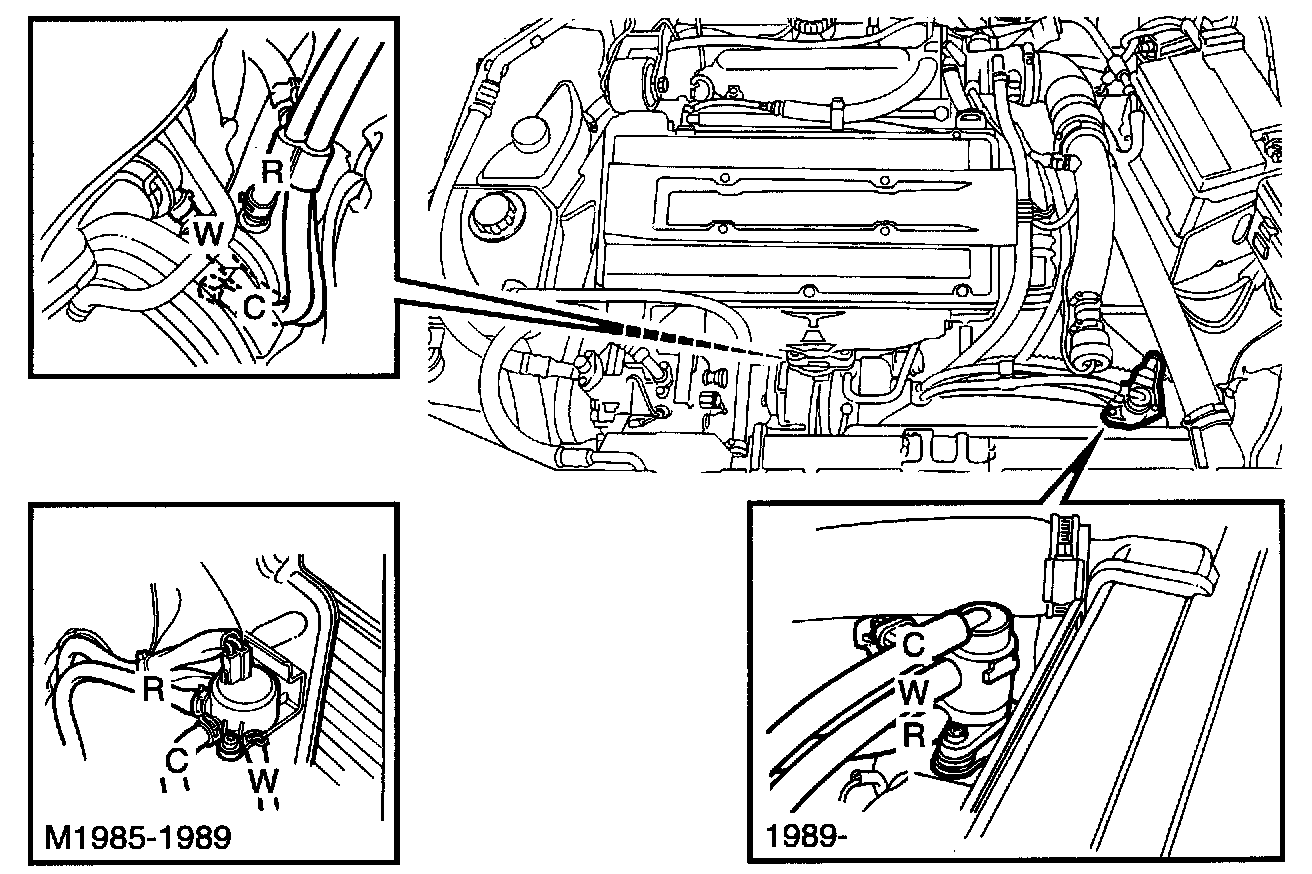

Boost pressure control valve To remove 1
Unplug the boost pressure control valve's connector.
2
Undo the hose clips and disconnect the hoses from the valve.
3
Undo the bolts securing the valve to the fan cowl.
To fit 1
Position the boost pressure control valve correctly on the fan cowl and bolt it in place.
2
Connect the hoses to each fitting.
3
Plug in the valve's connector.
