Main Relay (Computer/Fuel System): Locations



Fuse/Relay Location and Identification

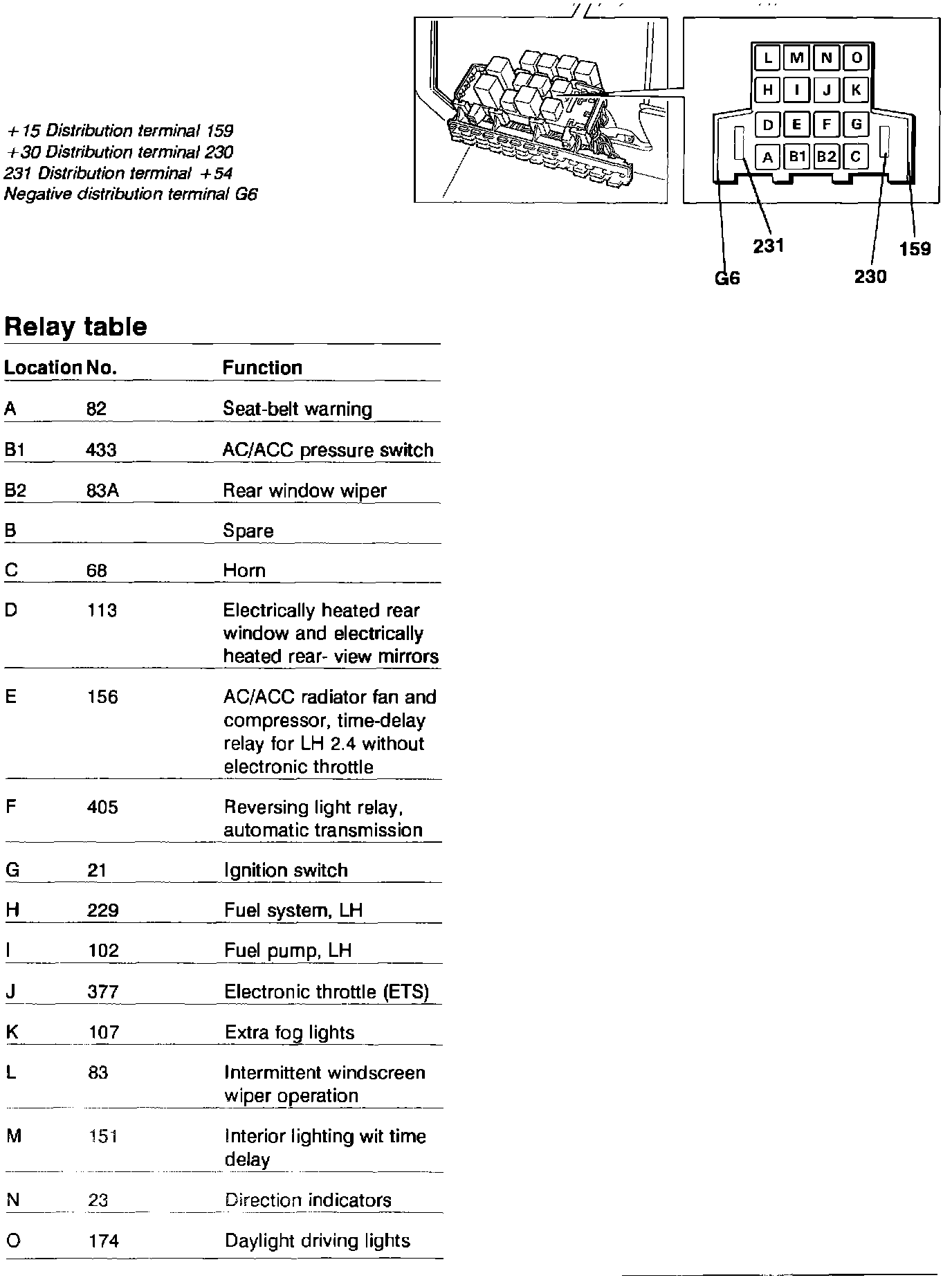

Electrical Distribution Box Behind the Glove Compartment

Location:




Fuses:




Relays:

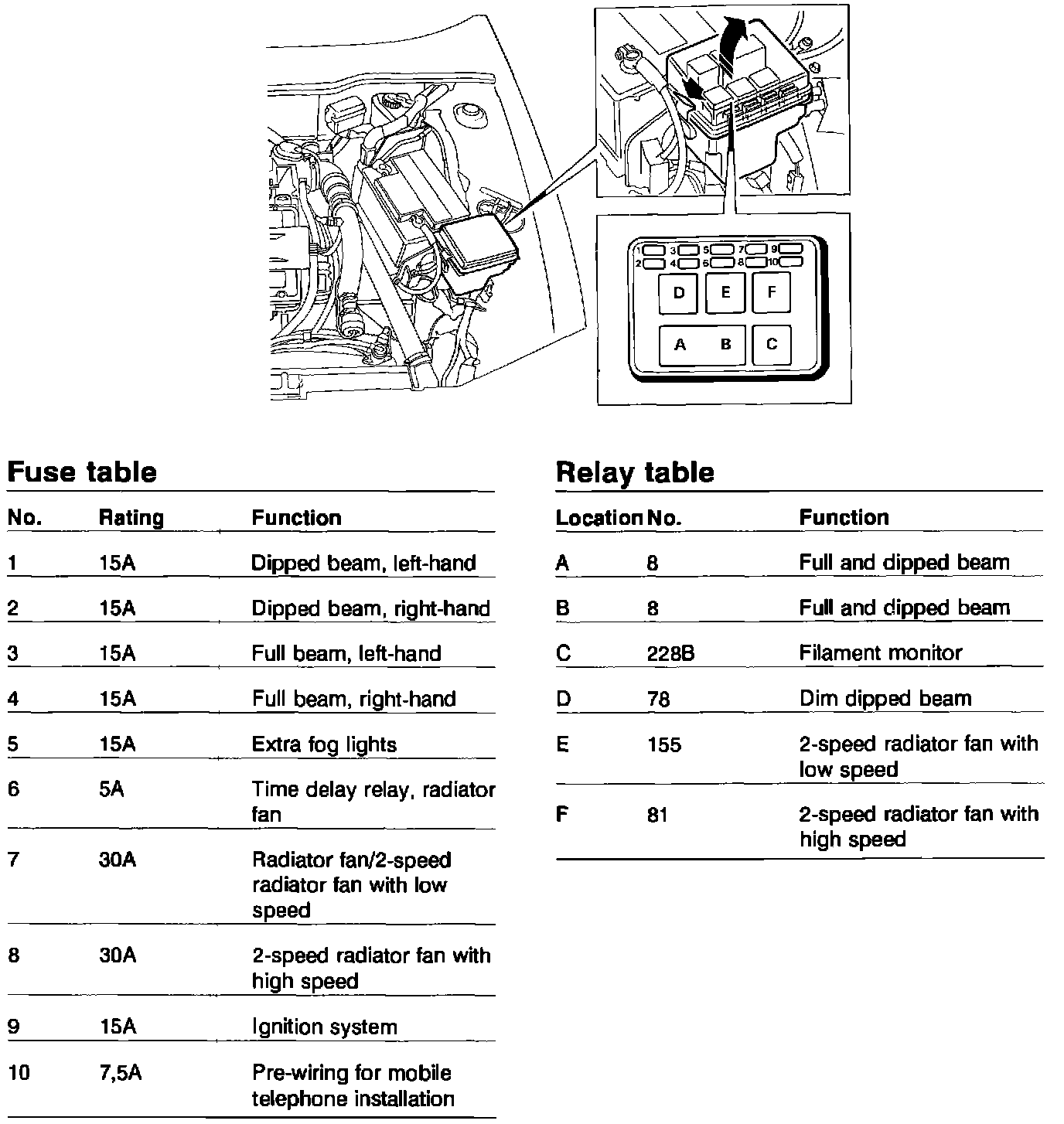

Electrical Distribution Box in the Engine Compartment

Electrical Distribution Box (Engine Compartment):

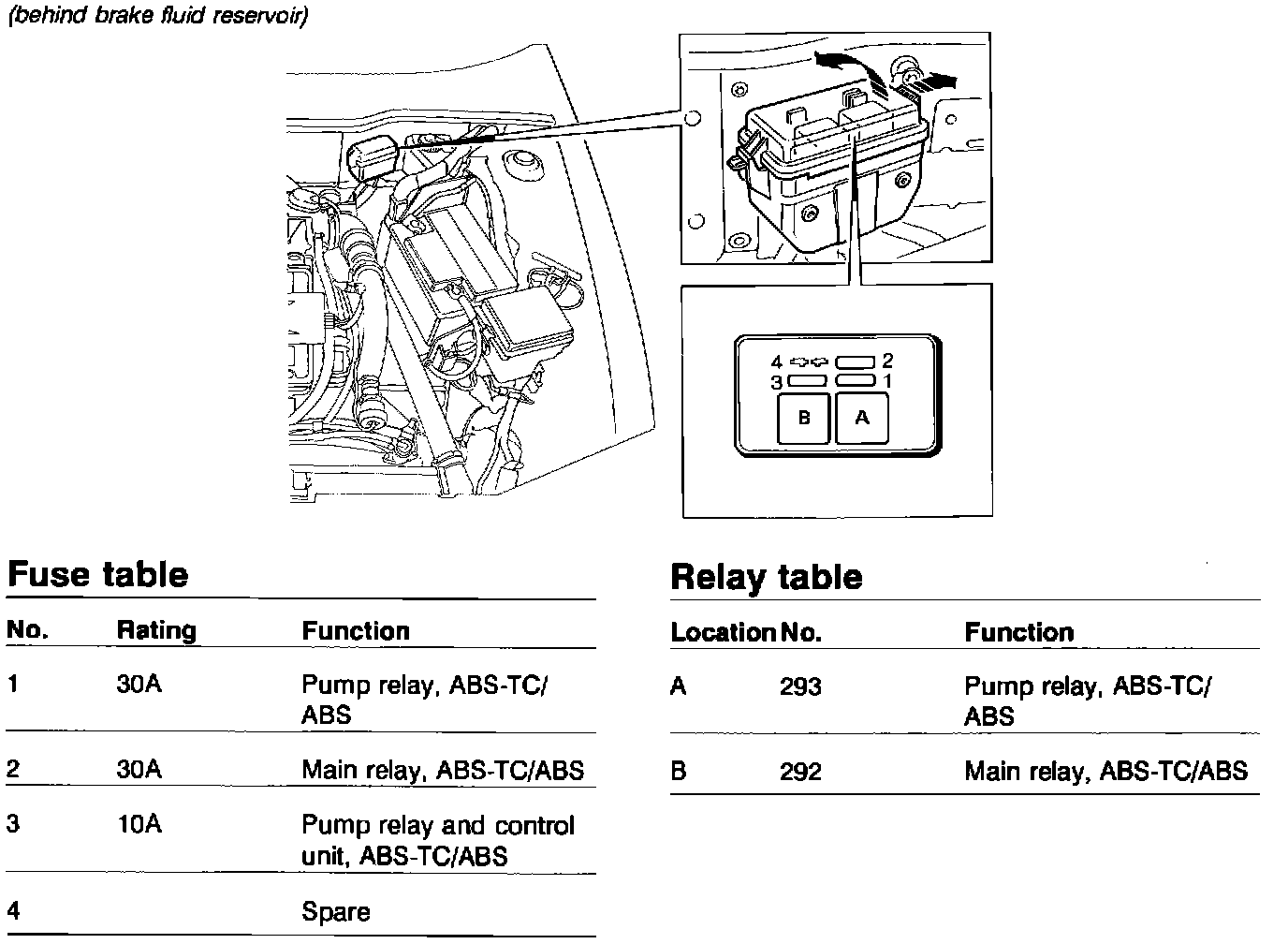

Electrical Distribution Box, ABS/TCS
(behind brake fluid reservoir)

Electrical Distribution Box (ABS/TCS):

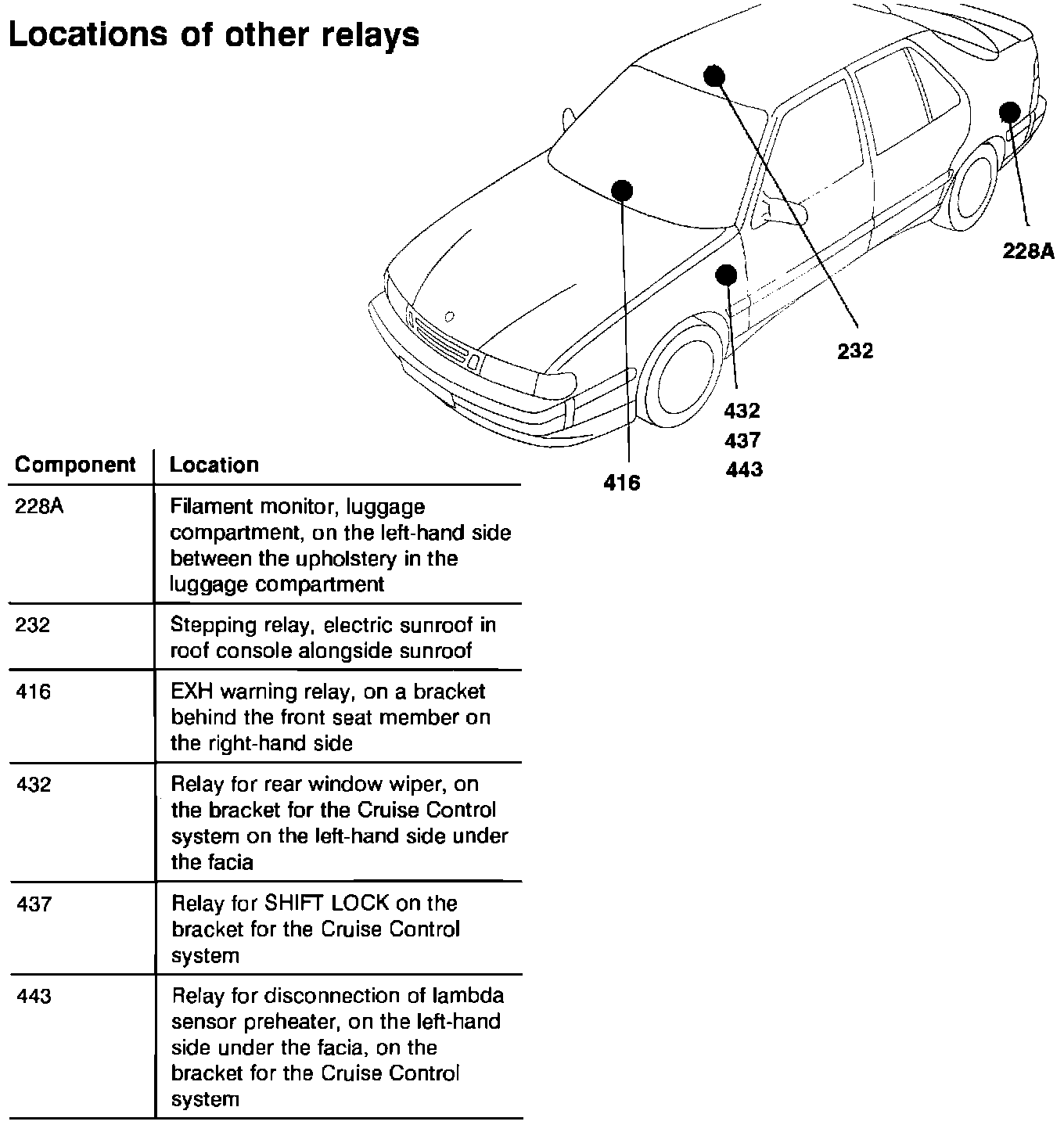

Additional Relay Locations

Locations Of Other Relays:
