Control Units

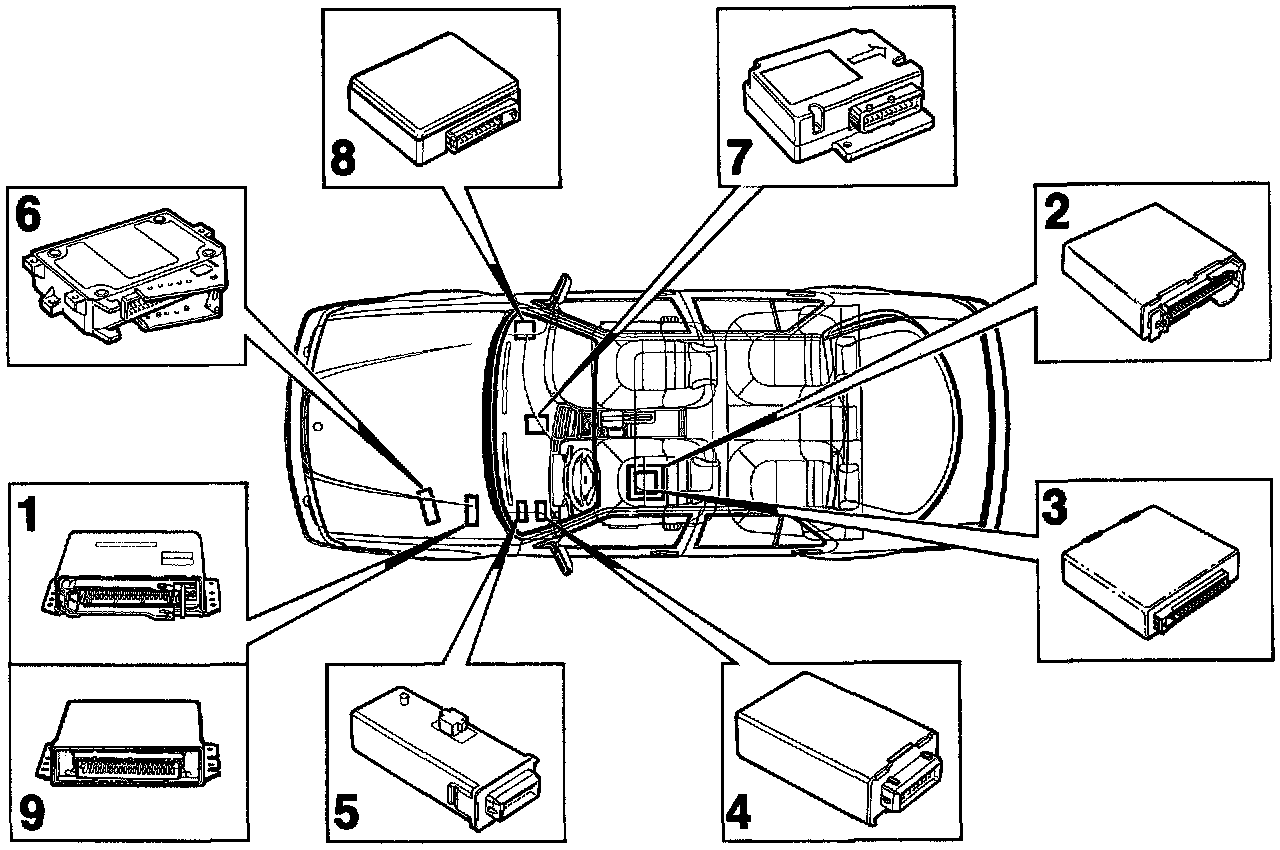

Control Unit Locations:

ENGINE SYSTEMS
1. LH and DI/APC (EZK)

9. AFM

The control units for LH and DI/APC (or EZK) or AFM are located on a bracket in the bulkhead space. The bracket is fitted on the left-hand side of the front upper bulkhead panel.


2. ETS

3. ASR

The ETS control unit is located on a bracket under the left-hand front seat. On cars with the anti-spin system, the ASR control unit is also fitted on top of the ETS control unit.


COMFORT SYSTEMS
4. Cruise Control

5. Central locking

The control units for Cruise Control and central locking are fitted on a bracket under the facia to the left of the steering wheel (LHD).


SAFETY SYSTEMS

6. ABS or TC/ABS

The ABS or TC/ABS control unit is fitted on the battery tray.

7. Airbag or seat-belt tensioner

The control units for the airbag or seat-belt tensioner are located on a bracket in the front section of the center console inside the car under the facia.

8. Anti-theft alarm

The control unit for the anti-theft alarm is located inside the car behind the glove box and knee shield on the right-hand side of the facia.
