Spark Plug: Service and Repair

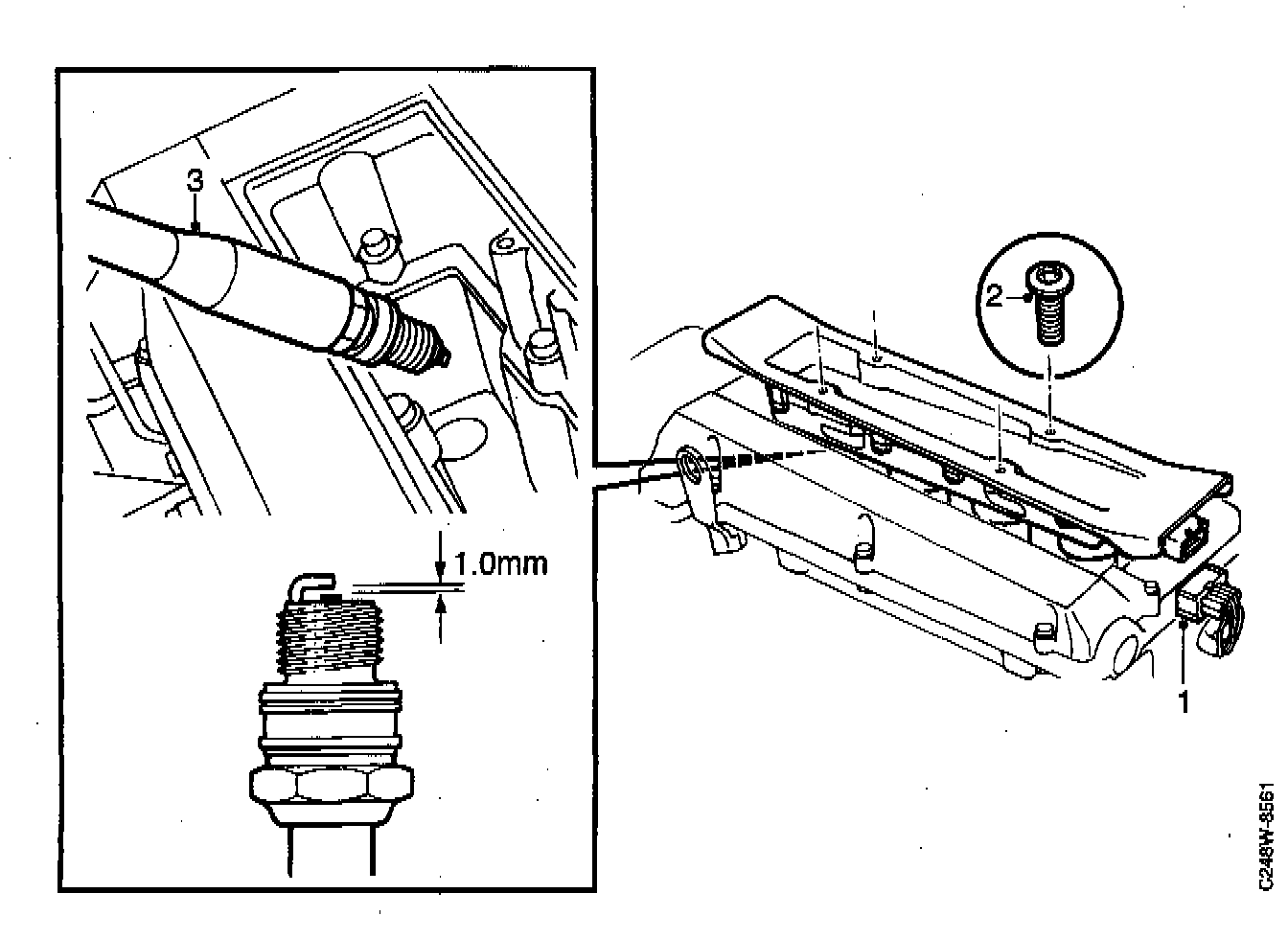

To Remove 1.
Unplug the ignition discharge module's 10-pin connector.
2.
Remove the ignition discharge module's 4 retaining bolts.
3.
Remove the
spark plugs.
To FitCheck the electrode gap on the
spark plugs. It should be
1.0 mm.
Fit in reverse order.
Tightening torque,
spark plugs:
27 Nm (20 ft lbs)Tightening torque, ignition discharge module:
11 Nm (8 ft lbs)
