Compact Disc Autochanger - Installation Components

CATEGORY
Accessory

SECTION
19

PAGE
38

ISSUE
11/92-0272

CODE
936


Replaces 11/91-0147



Subject:
Compact Disc Autochanger Installation Components

Application:
M92- 900 and 9000

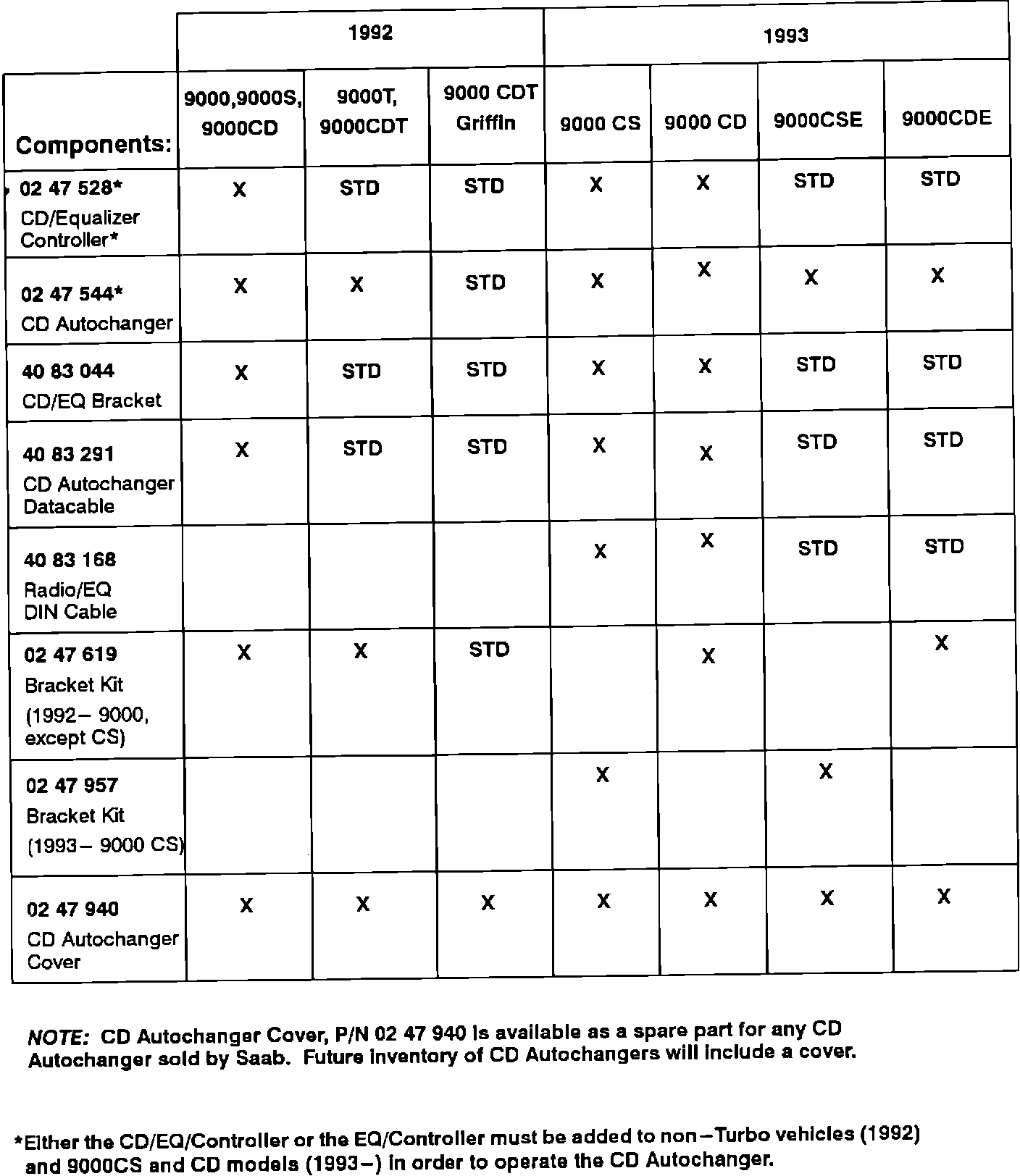

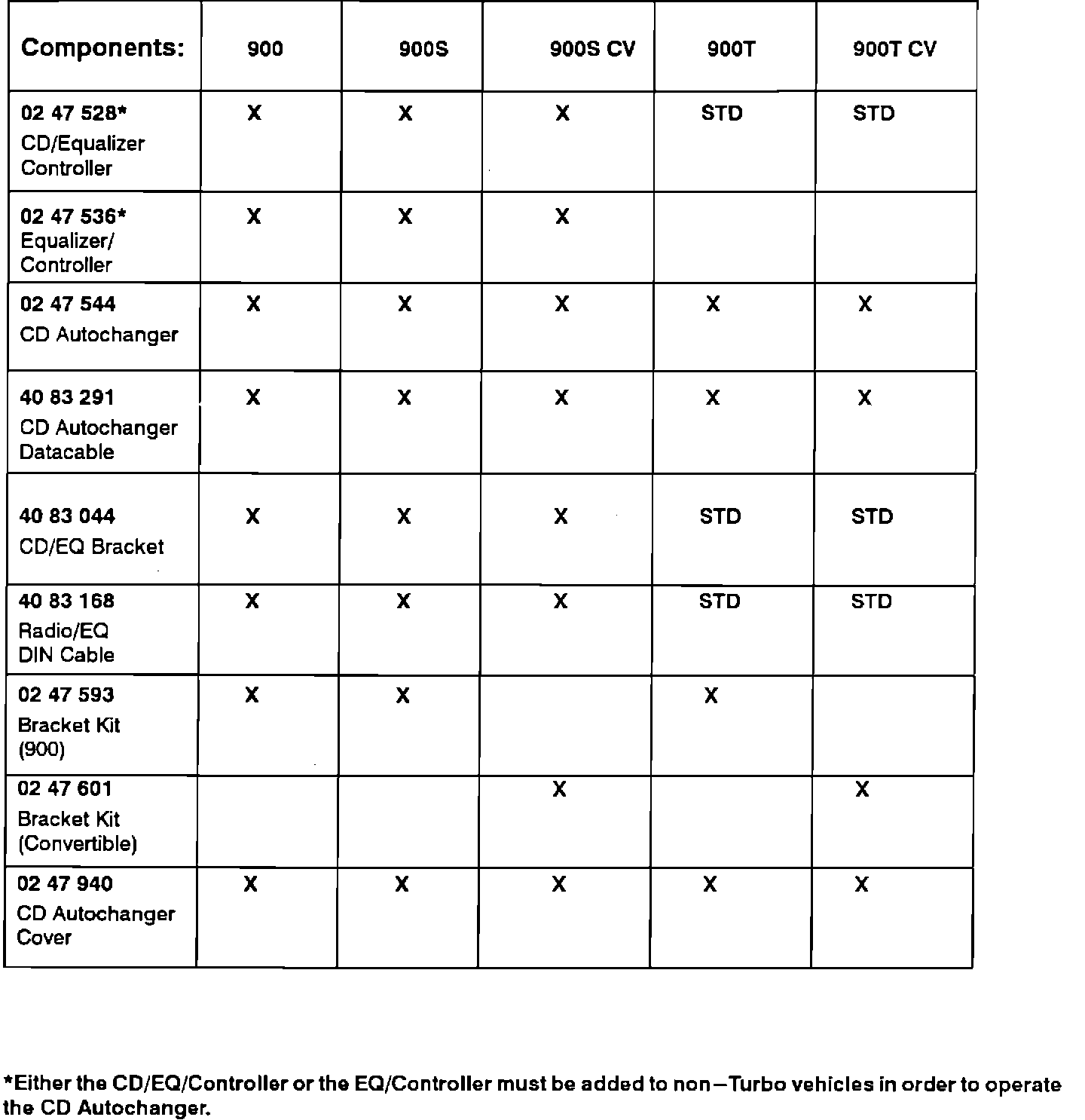

The two tables of components (marked "X") required for installation of the Compact Disc Autochanger.





Installation instructions for all models are packaged with the CD bracket kits.


Note:
The CD Autochanger is designed to be used with a two component in-dash audio system comprised of either one of the 1992- AM/FM/Cassette units plus either the CD/EQ Controller or the EQ/Controller.






900 Models, 1992-






9000 Models, 1992-
