Seat Temperature Switch: Service and Repair
1

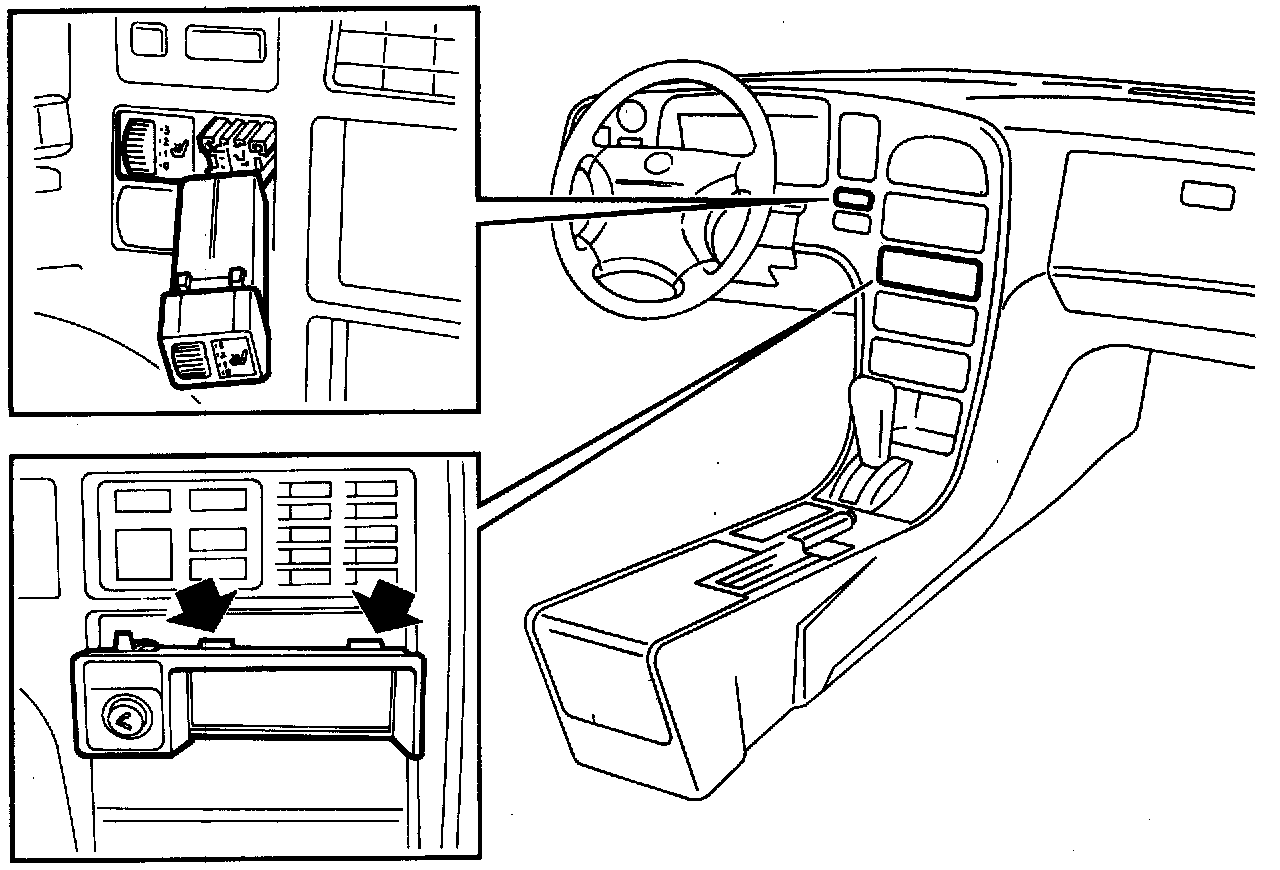

Remove the ashtray.
2
Bend down the two upper catches and pull the ashtray holder forwards.
3
Press out the switch.
On cars with Automatic Climate Control
(ACC), removal of the switch will be facilitated if the ACC panel is pressed out.
4
Unplug the connector.
