ASR Control Unit

ASR Control Unit





To remove
1 Move the left-hand front seat all the way forward and tip the backrest forward.
2 Remove two retaining clips and fold the carpet back under the seat.
3 Remove the two retaining screws for the cover plate and move it aside.

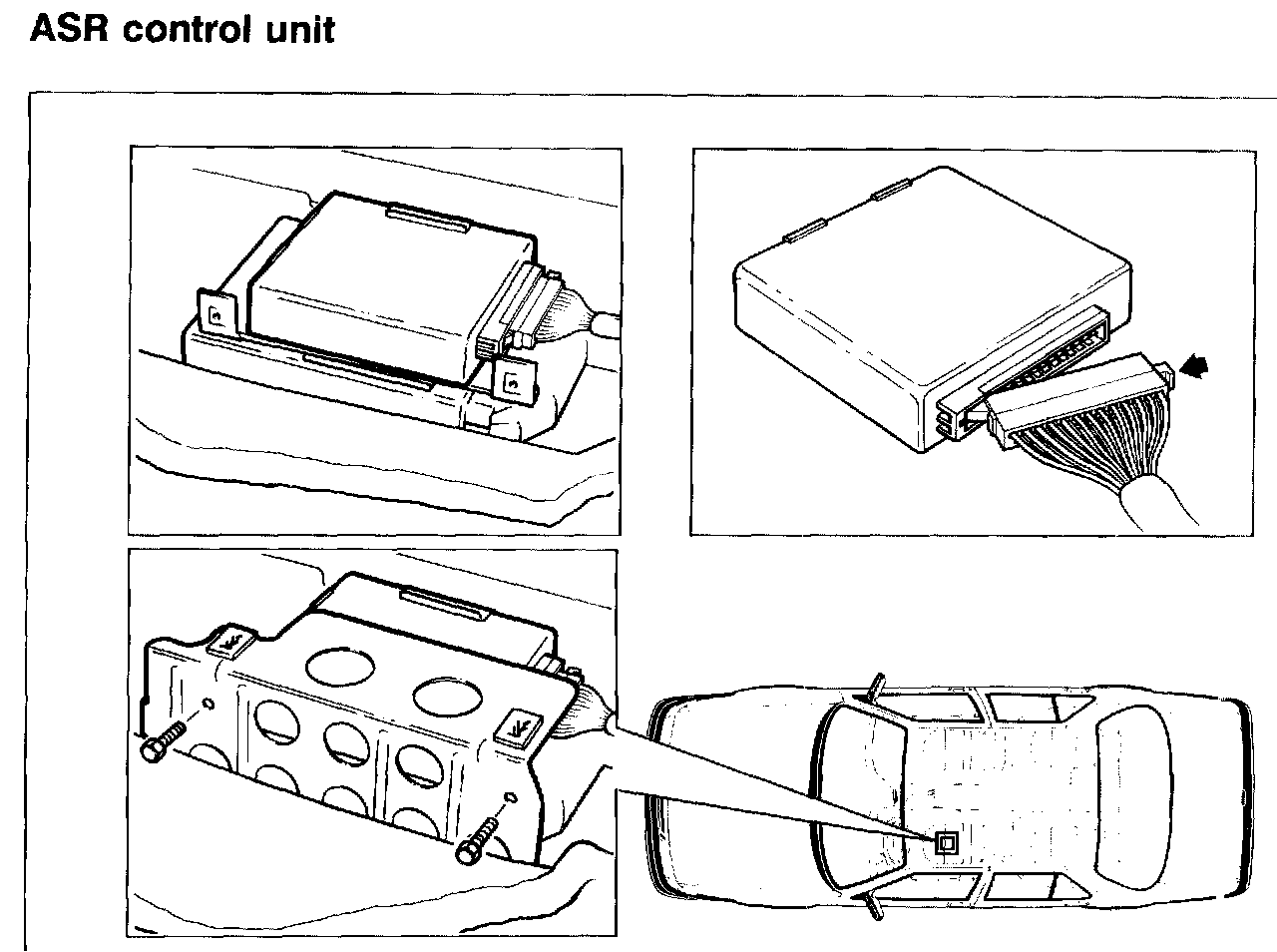

4 Withdraw the control unit from its position under the spring-loaded metal retaining tongue.Release the catch for the connector by depressing the lip (see Fig.) and then unplug the connector.

To fit
1 Refit the control unit in reverse order.
2 Enter the correct code for the engine variant. Coding When Fitting A New ECU
3 Use an ISAT instrument to calibrate the actuator motor for the KDW. Calibration of TCS
