TC/ABS System Control Unit

TC/ABS System Control Unit





Object code: 52160

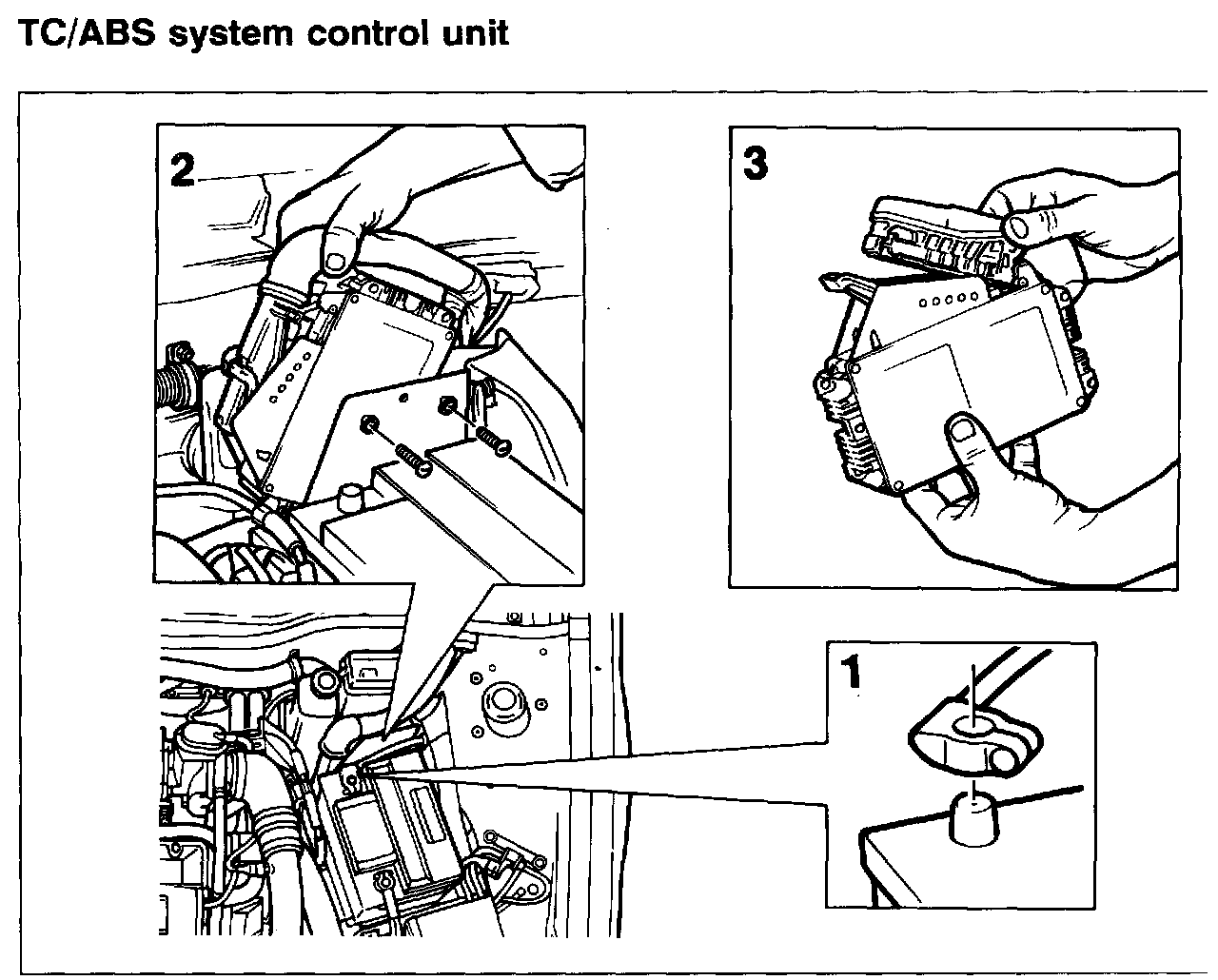

To remove
1 Disconnect the negative (-) battery cable.
2 Remove the two retaining screws.
3 Lift our the control unit and unplug the connector.

To fit
1 Plug in the connector.
2 Fit the control unit in position and tighten the retaining screws.
3 Reconnect the battery cable.
