Installation
1.

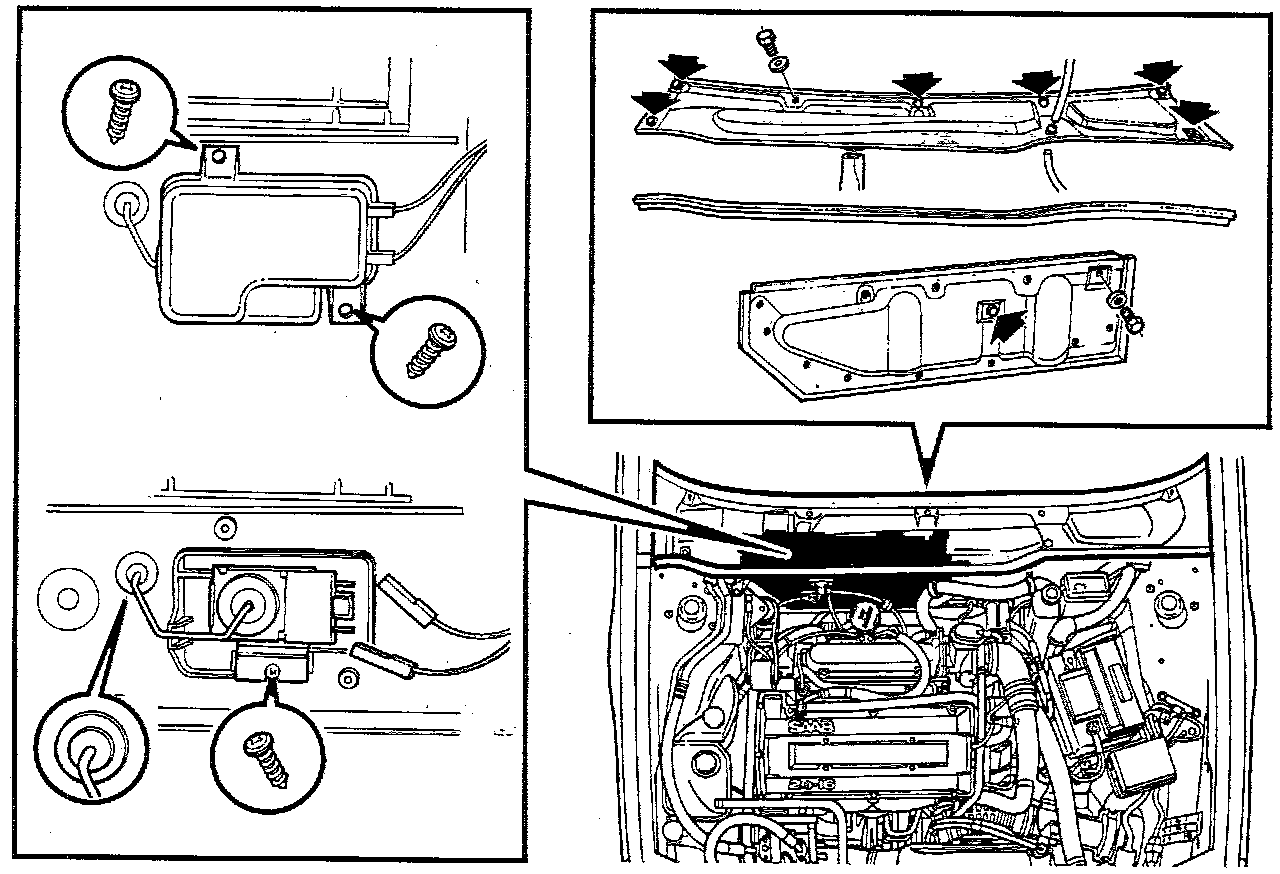

Carefully insert the capillary tube into the evaporator. Make sure that the tube goes all the way down. Do up the screw securing the anti-freeze thermostat.
2.
Screw on the casing.
3.
Connect cables.
4.
Screw on the partition panel and press on the rubber strip.
5.
Connect the drain hose and the washer fluid hose to the cover and screw the cover over the bulkhead space.
