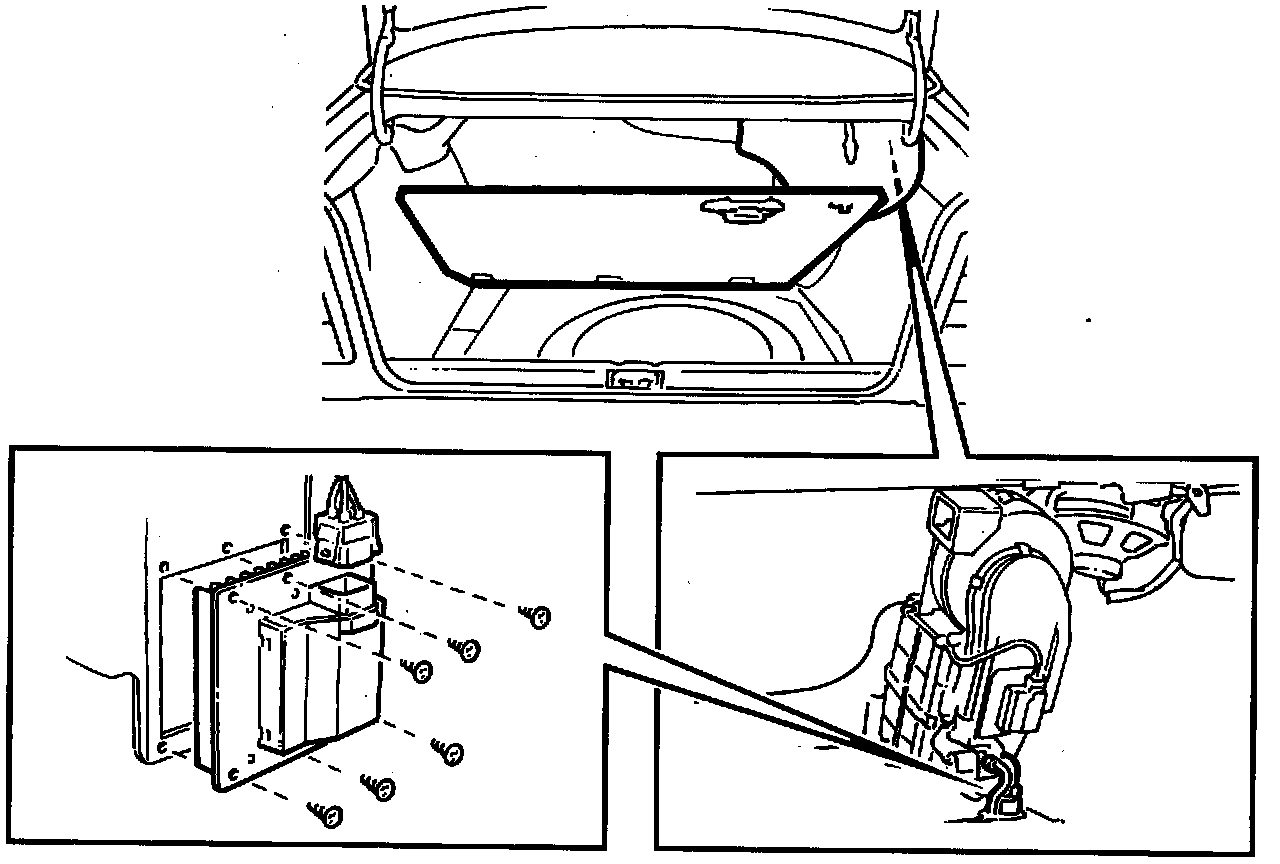

Rear ACC Fan Control Module, Changing
To Remove 1
Remove the luggage compartment floor.
2
Remove the trim from around the evaporator casing.
3
Unplug connector.
4
Unscrew control module.
To Install 5
Screw control module onto evaporator housing.
6
Plug in the connector.
7
Reinstall the trim around the evaporator housing.
8
Reinstall the luggage compartment floor.
