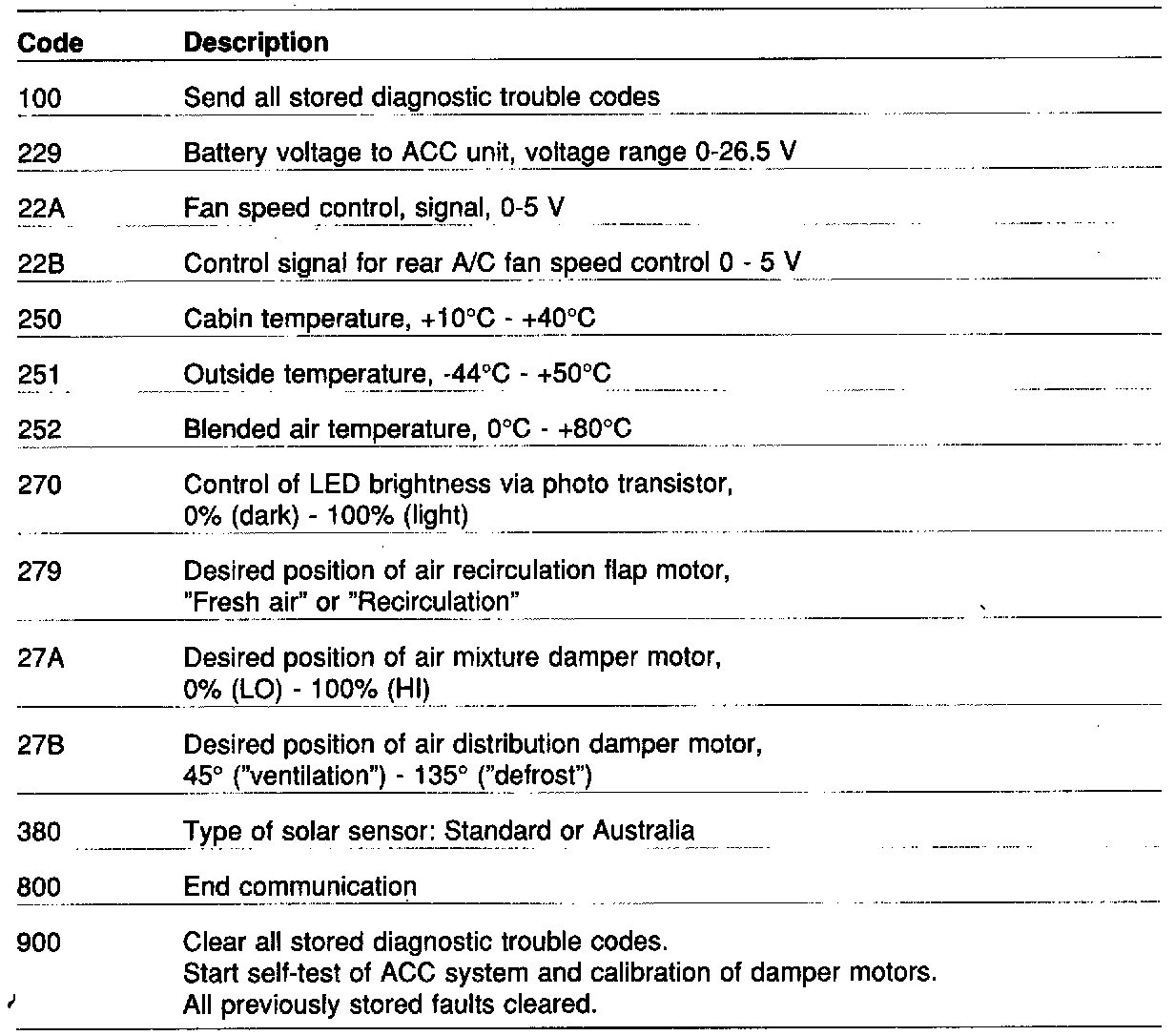

Command Codes, ISAT Scan Tool






Important: Commands 27A, 27B and 279 refer to the desired positions of damper motors. This means that it is never possible to know if the motor really has moved the damper to the desired position. This can only be checked visually.
