Front

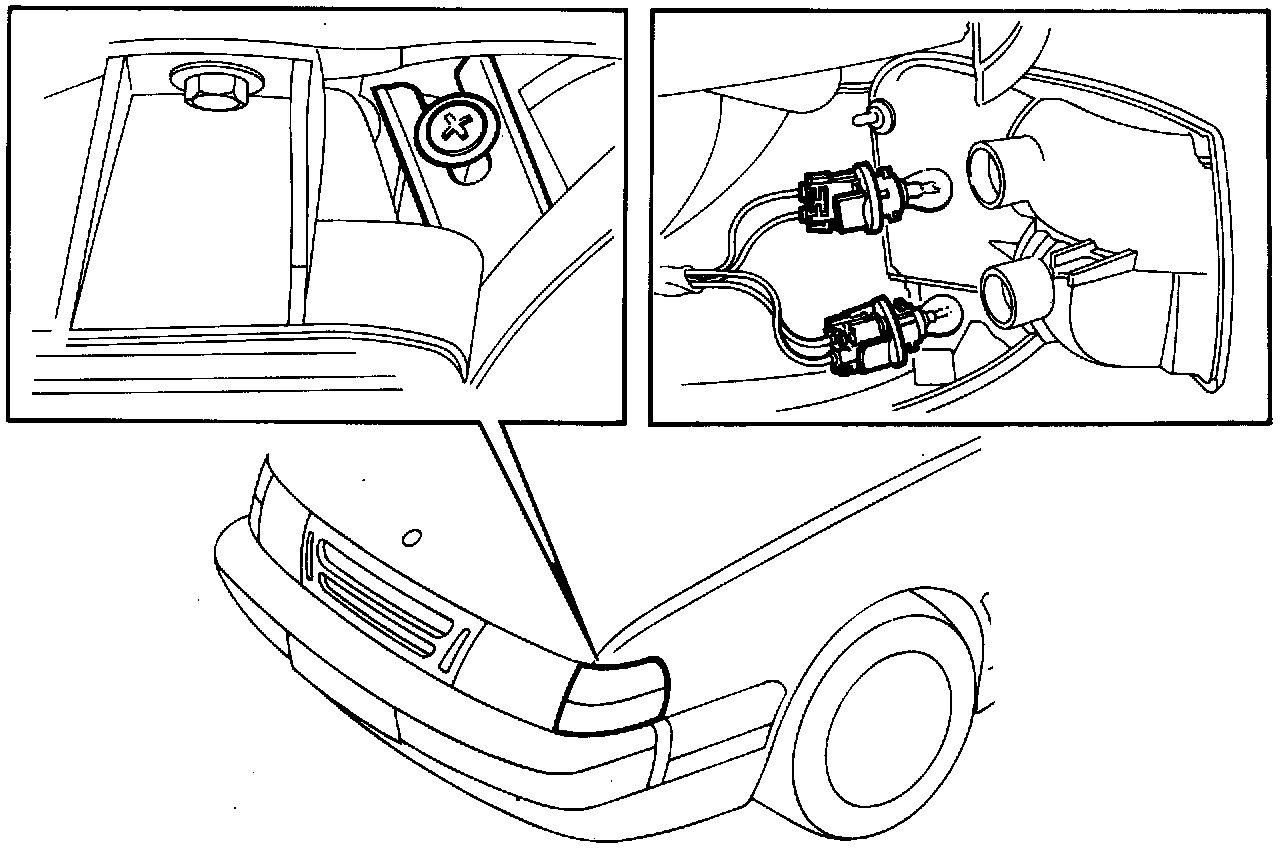

Front light cluster, 5-d (CC) and CD 1
Remove the screw and pull out the lamp.
2
Turn the bulb holder to remove it and change the bulb. Do not touch the glass envelope of the new bulb with your fingers.
On certain versions and in certain markets, a side reversing light and side marker light are also incorporated in the light cluster.
3
Install in reverse order.
