ABS and TCS Fuse Box

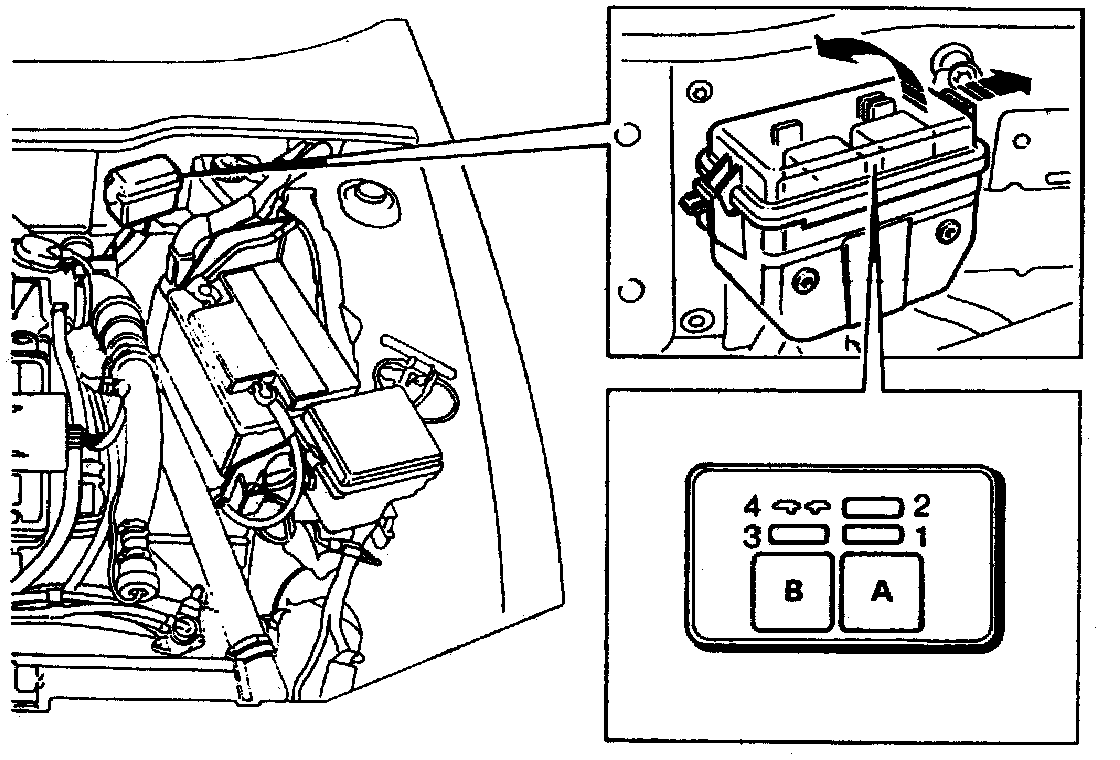

ABS/TCS Fuse Box:






Table of fuses

Fuse No. Rating Function
1 30A Pump relay, ABS-TC/ABS
2 30A Main relay, ABS-TC/ABS
3 10A Pump relay and control module, ABS-TC/ABS
4 Spare

Table of relays

Location No. Function
A 293 Pump relay, ABS-TC/ABS
B 292 Main relay, ABS-TC/ABS
