Windshield Washer Pump: Service and Repair

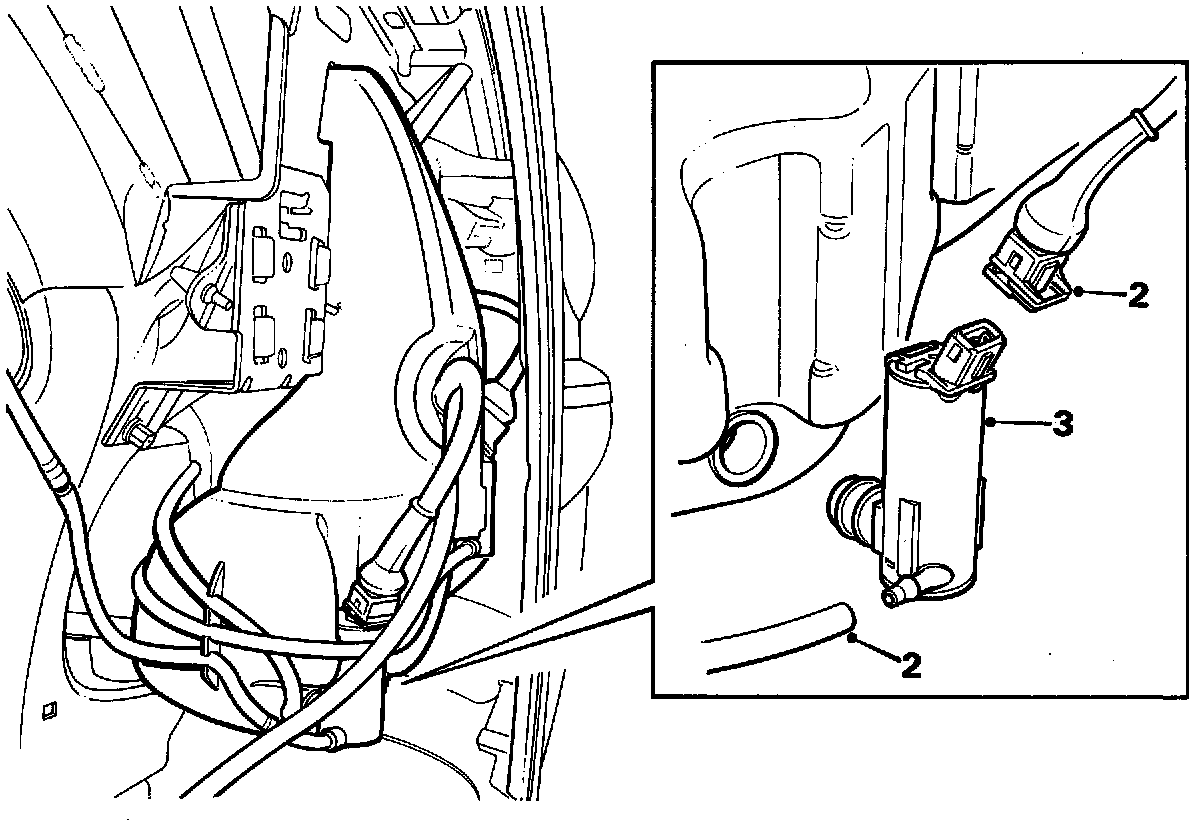

To Remove 1
Remove the lower spoiler section on the right-hand side.
2
Disconnect the hoses and unplug the connector from the pump that is to be changed.
Important : The reservoir should not contain more than
0.5 litres (0.5 qts) of fluid as it will otherwise run out when the washer pump is removed.
3
Remove the pump.
To InstallInstall in reverse order.
