Programming For Car Key






The basic version of the theft alarm can be armed/ disarmed with the remote control and the car key. Arming/disarming with the car key can be deprogrammed for countries that require this.

Programming

Car key for arming/disarming the alarm
Connect the Intelligent Saab Tester (ISAT) scan tool.
Select "PROGRAMMING".

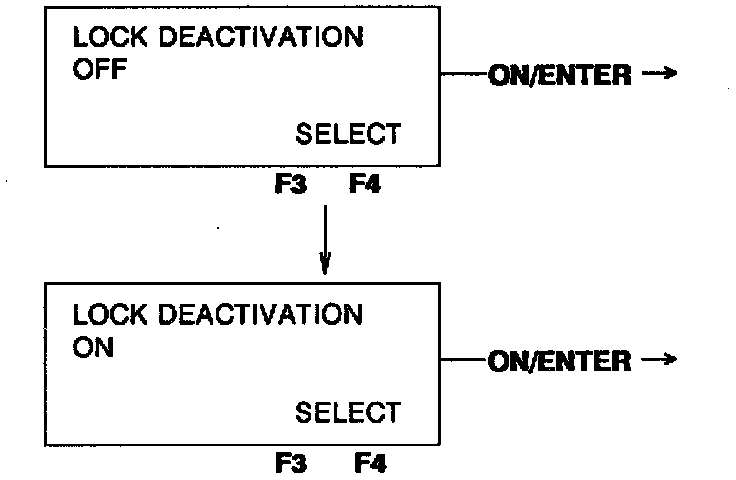

Select "LOCK DEACTIVATION" and then:
1 "OFF" if only the remote control is to be able to be used to arm/disarm the alarm.
2 "ON" if the car key and the remote control are to be able to be used to arm/disarm the alarm.






Car key to arm/disarm the tailgate
Select "PROGRAMMING".

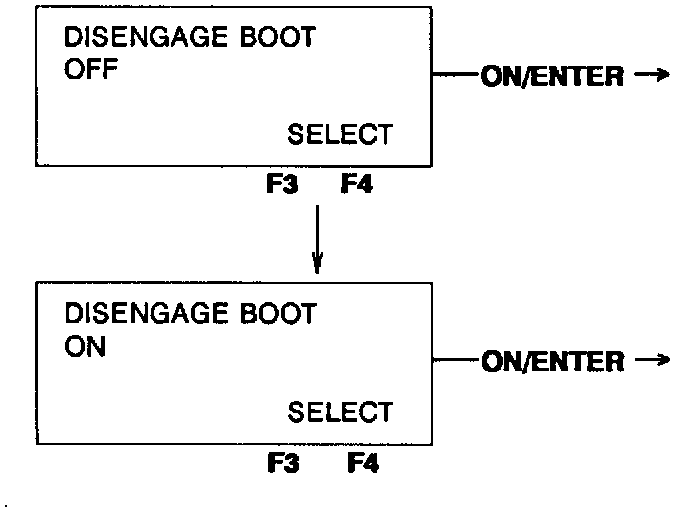

Select "DISENGAGE BOOT" and then:
1 "OFF" if only the remote control is to be able to be used.
2 "ON" if the car key and the remote control are to be able to be used to open the tailgate when the car is armed.
When the tailgate is opened, it is removed from alarm monitoring. When it is closed, it is included in the alarm monitoring after the delay period.


Important : If this function is selected "OFF", the alarm will be set off by any attempt to open the tailgate using the key.
