Control Modules Location Overview

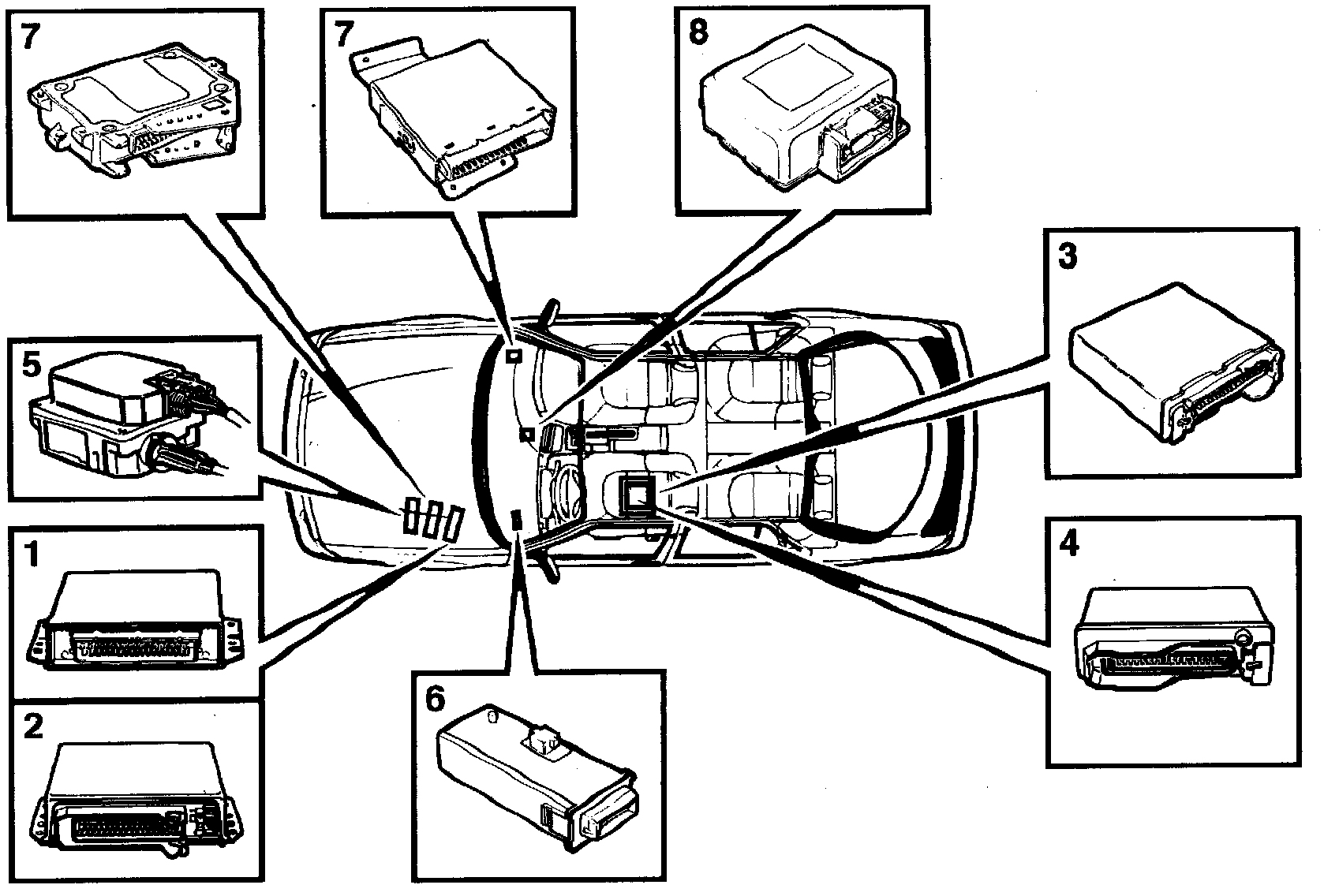

Control Module Locations:

ENGINE SYSTEMS
1. Saab Trionic
2. Motronic
The control modules are located on a bracket in the bulkhead partition space. The bracket is mounted on the front upper left-hand side of the bulkhead plate.
3. ETS
4. TTS
The control modules are located on a bracket under the left-hand front seat.

COMFORT SYSTEMS
5. Cruise Control System
The Cruise Control system control module is mounted beside the battery tray.
6. Central Locking System
The central locking control module is mounted on a bracket at the far left under the dashboard.

SAFETY SYSTEMS
7. ABS or TC/ABS
The ABS or TC/ABS control module is mounted on the battery tray.
8. SRS (airbag)
The SRS control module is located on a bracket in the front part of the centre console inside the cabin under the dashboard.
9. Anti-Theft Alarm
The anti-theft alarm control module is located inside the cabin behind the glove box and knee shield on the right-hand side behind the dashboard.
