Relay Table

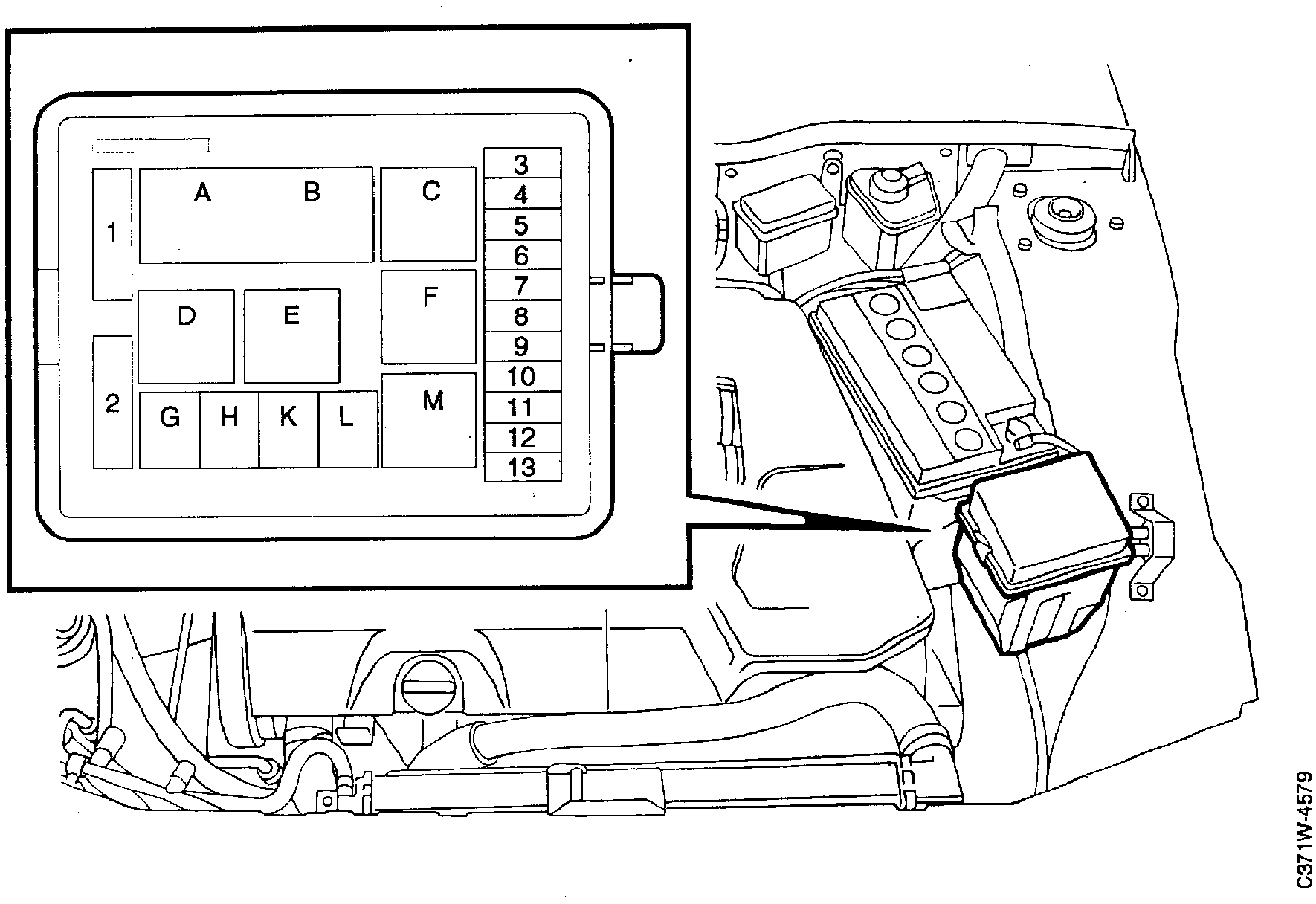

Main Fuse Box (Engine Bay):




Location No Function
A 8 Full and dipped beams
B 8 Full and dipped beams
C 228B Filament monitor
D 324 Air Pump
E 81 2-speed radiator fan, high speed
F 156 A/C
G 107 Fog lights
H 433 Radiator fan disengagement
K 78 Dimmed dipped beam
L 68 Horn
M 155 2-speed radiator fan, low speed
