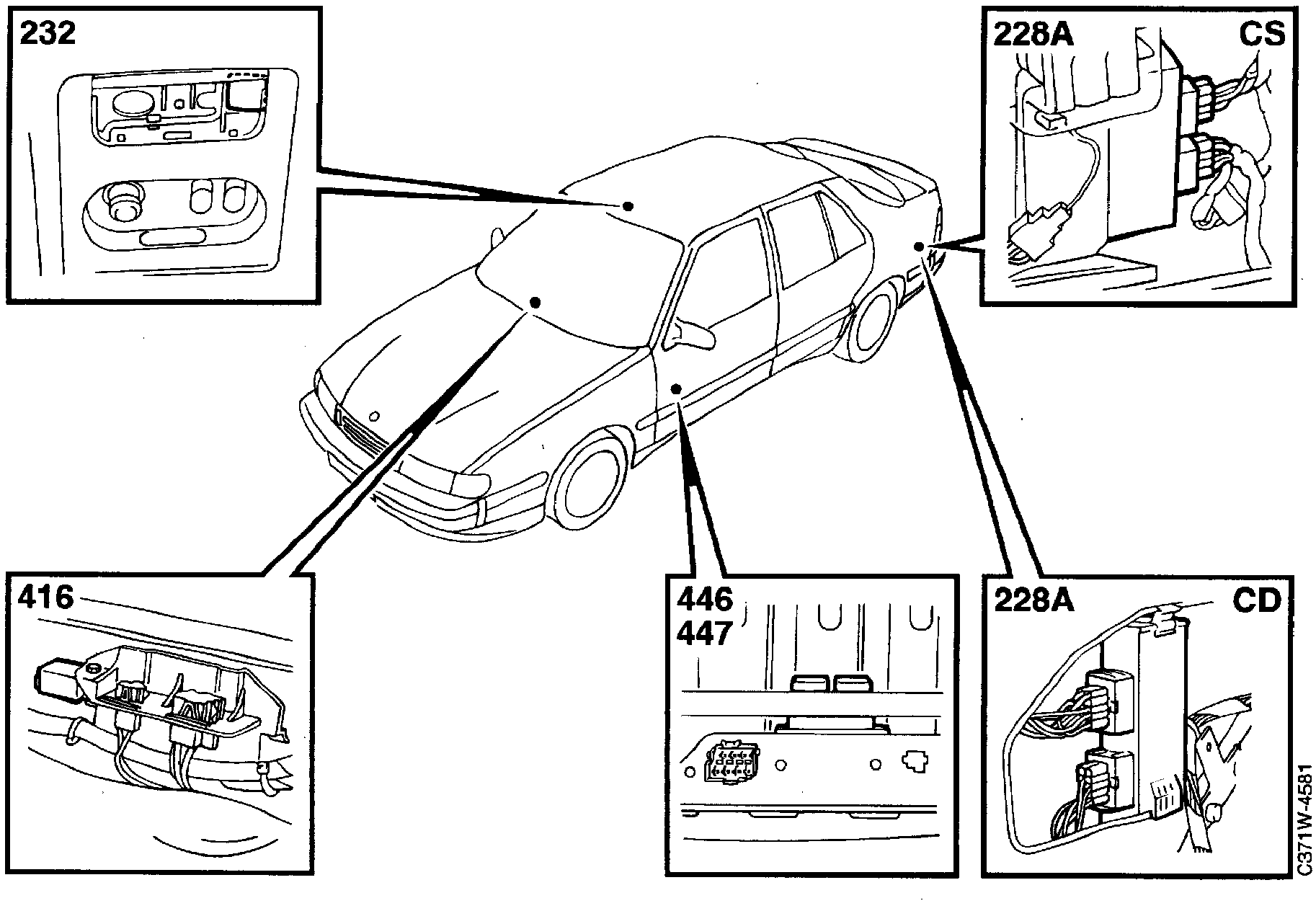

Other Relay Locations

Other Relay Locations:

Component Location
228A Luggage compartment filament monitor, on the left-hand side behind the trim in the luggage compartment
232 Stepping relay for electrically operated sunroof, in the roof console beside the sunroof
416 EXH warning relay, on a bracket behind the front seat member on the right-hand side
446 Electrically adjustable seat relay (ignition switch), on the seat frame under the seat cushion.
447 Electrically adjustable seat relay (door switch), on the seat frame under the seat cushion.
