Air Injection Control Valve: Service and Repair

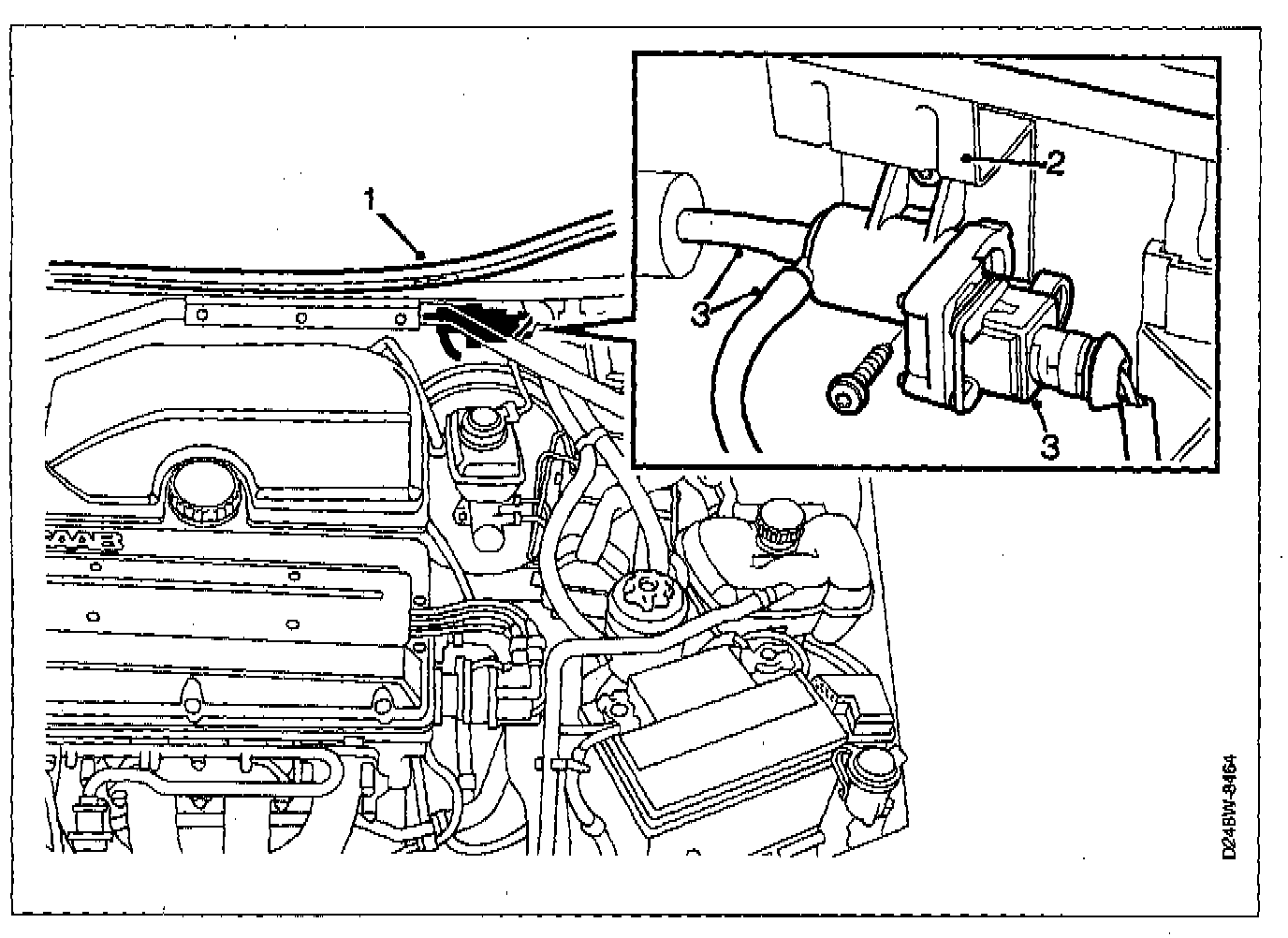

To Remove 1
Lift up the sealing strip from the top of the bulkhead partition.
2
Undo the clamp and lift up the valve.
3
Unplug the connector and disconnect the two hoses.
4
Remove the valve.
To InstallInstall in reverse order.
