Air Injection Pump: Service and Repair

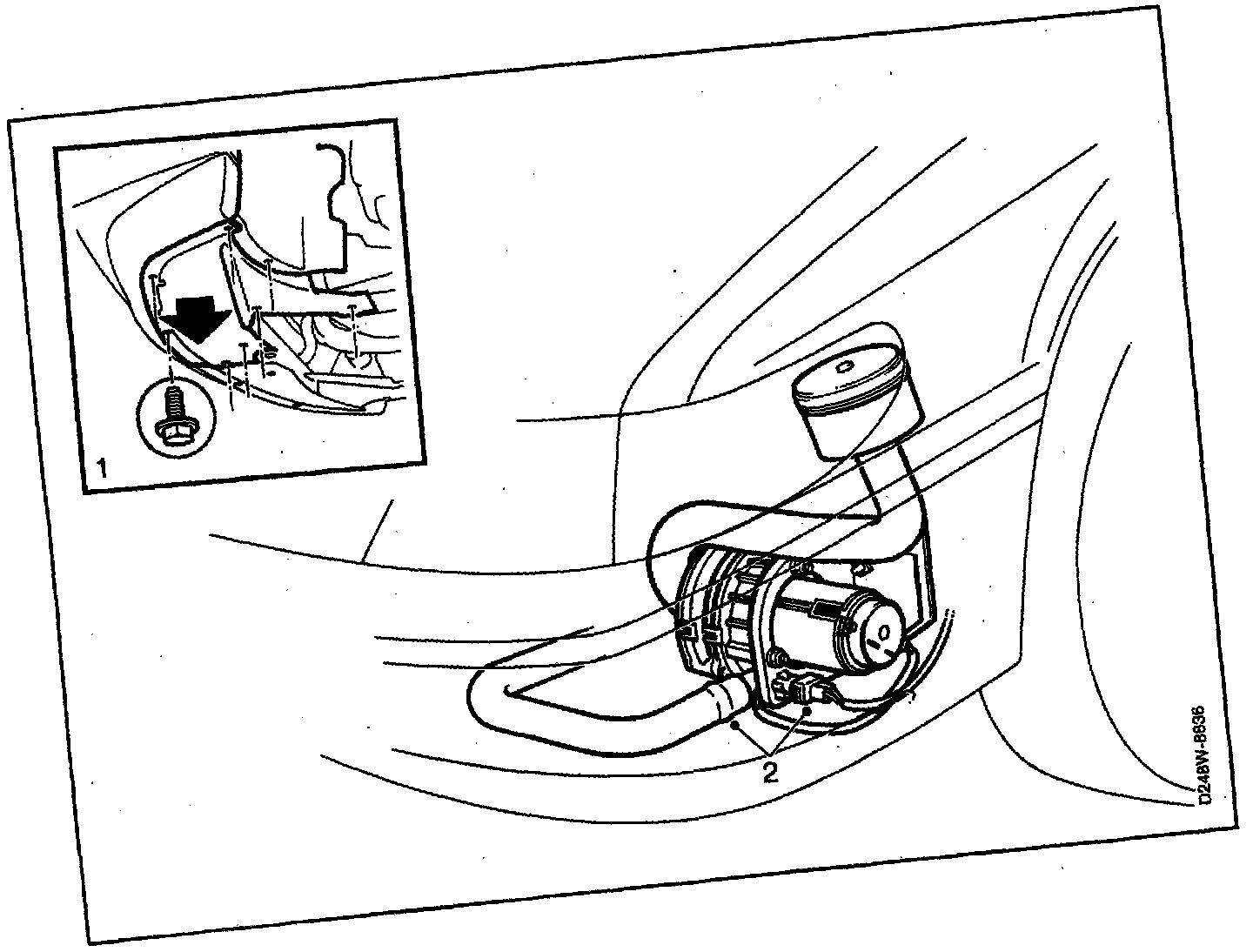

To Remove 1
Remove the lower section and the bottom half of the left-hand side of the spoiler.
2
Remove the three retaining bolts, unplug the connector and disconnect the hoses from the pump.
3
Lift out the pump.
4
Undo the filter retaining bolt and remove the filter with hose
To InstallInstall in reverse order.
NOTE: The arrow on the valve should point in the direction of the airflow.
