Electronic Control Module

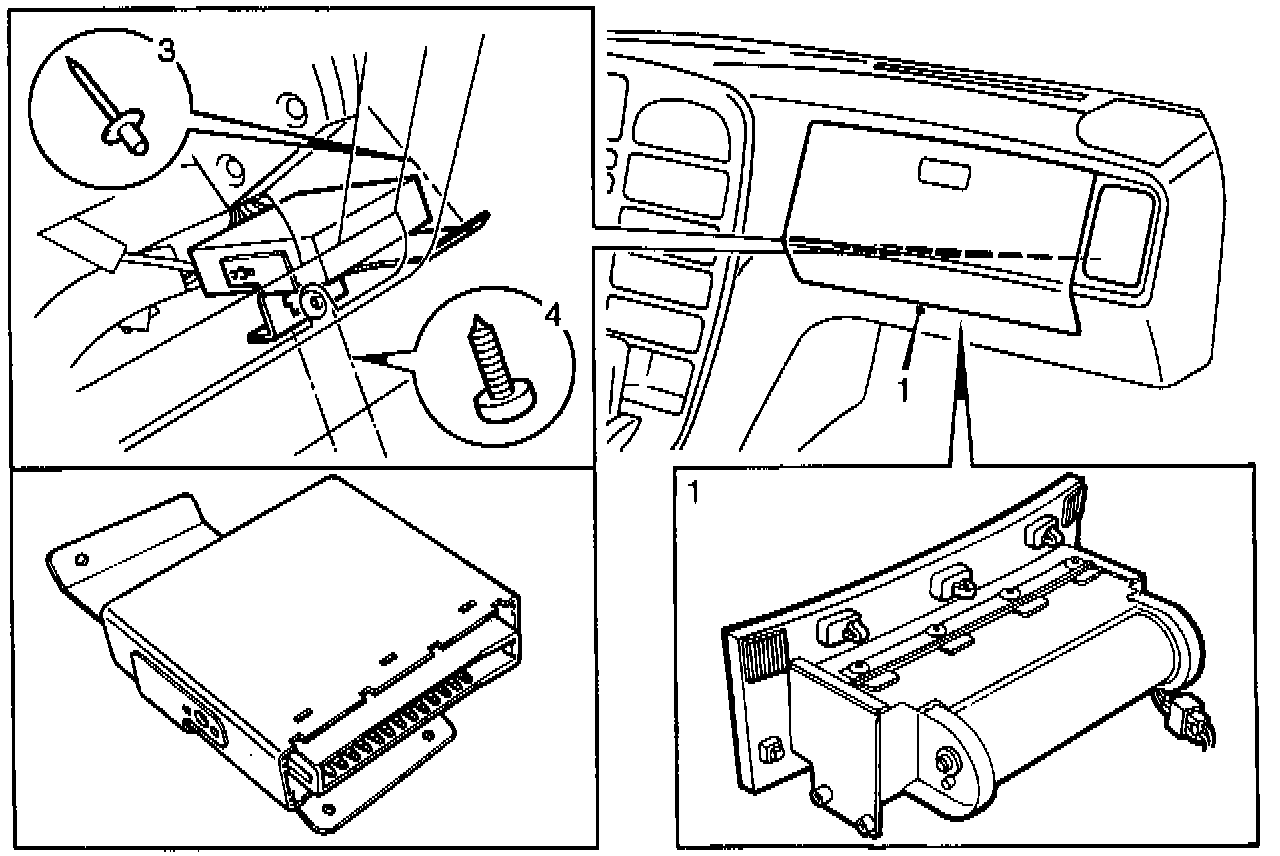

1 Car without passenger airbag
Remove the glove box and air distribution flap.
Car with passenger airbag
Remove the complete airbag, including bracket and air distribution flap.
2 Carefully press the air duct upwards on the passenger's side.
3 Drill out the pop rivet securing the control module. Use a drill with a bit stop.
4 Remove the two control module retaining screws (from below). Lift out the control module.
5 Unplug the electronic control module connector.
6 Install in reverse order.
