Electronic Control Module

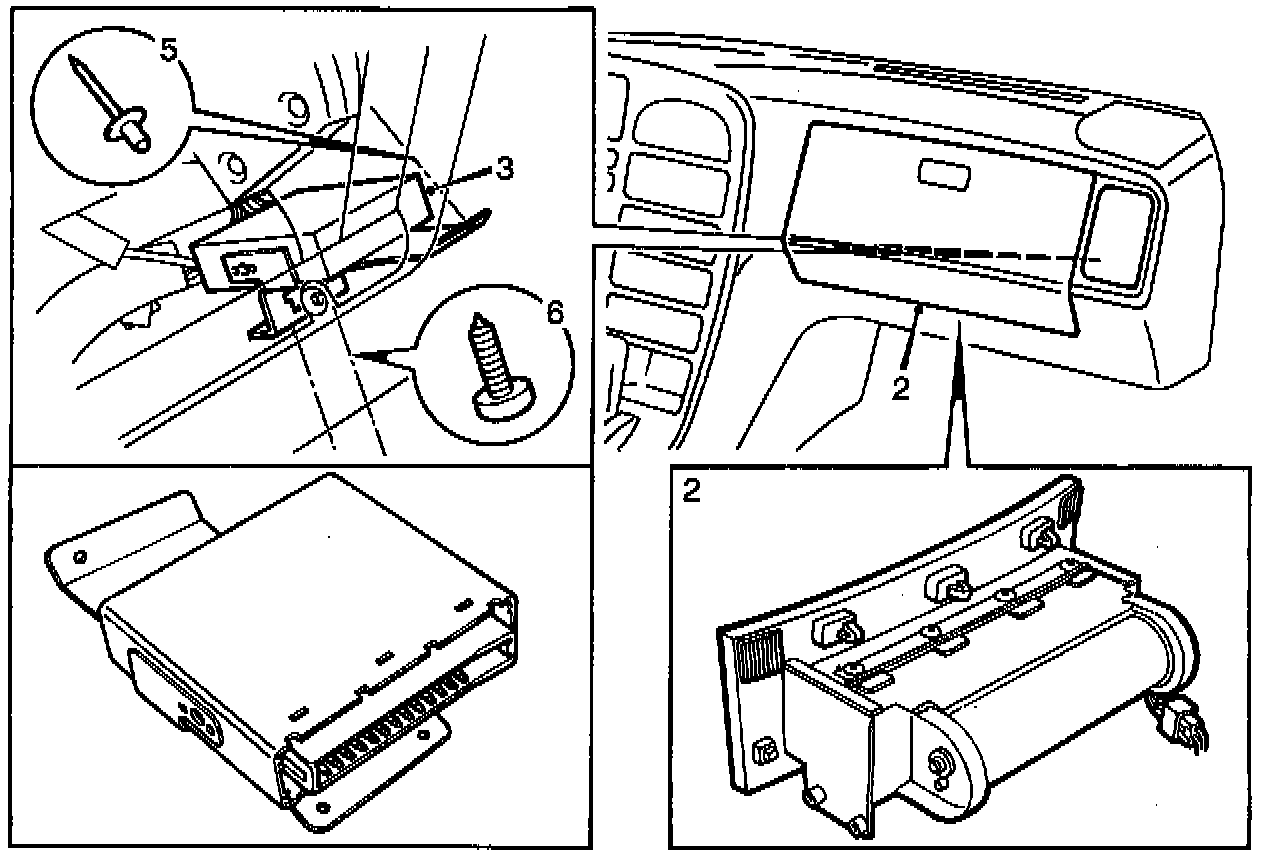

1 Disconnect the negative (-) cable from the battery.
2 Car without passenger airbag
Remove the glove box and air distribution flap.
Car with passenger airbag
Remove the complete airbag, including bracket and
air distribution flap.
3 Remove the control module from below.
4 Plug in the 25-pin control module connector.
5 Install the pop rivet.
6 Secure the control module in place by means of the two screws.
