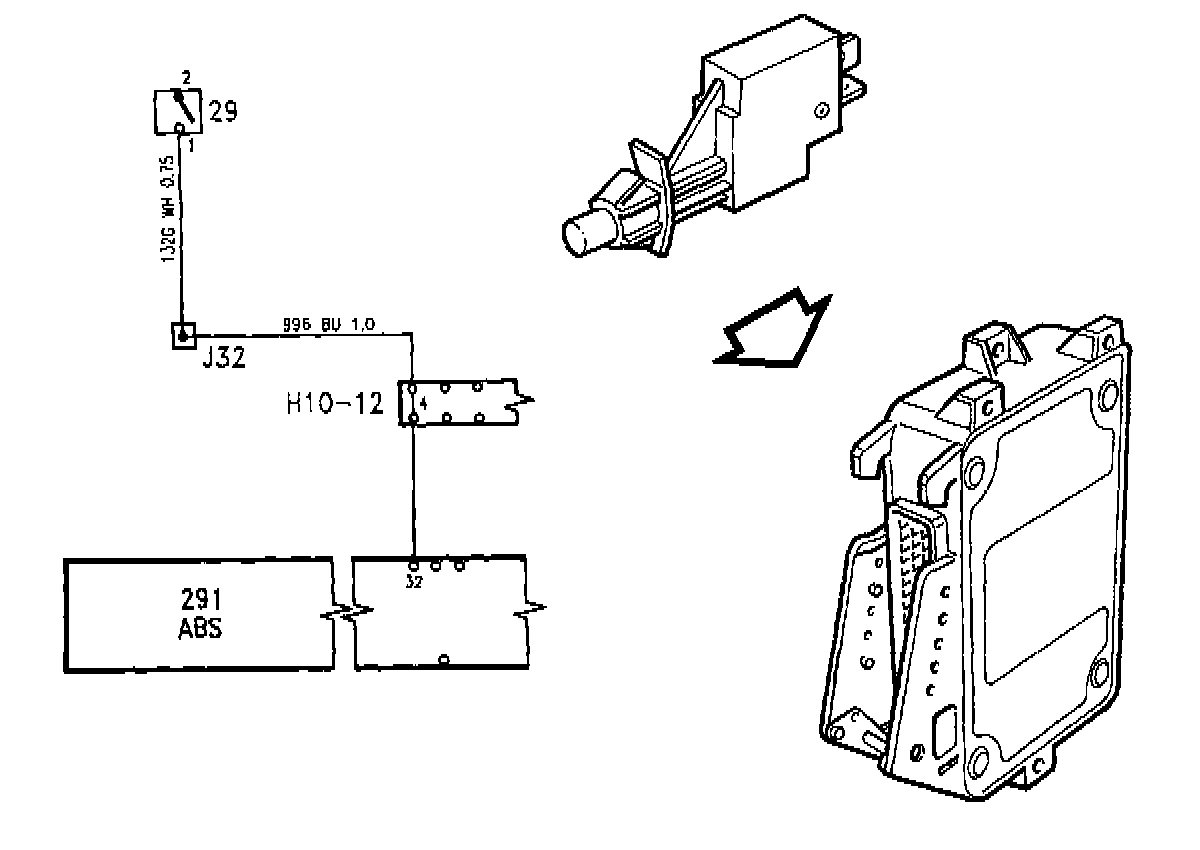

Brake Light Switch







Brake Light Switch
The Electronic Control Unit (ECU) receives + 12 V when the brakes are applied.

The signal is for fault-tracing in the ECU with regard to the pump and travel sensor.
