ISAT







ISAT

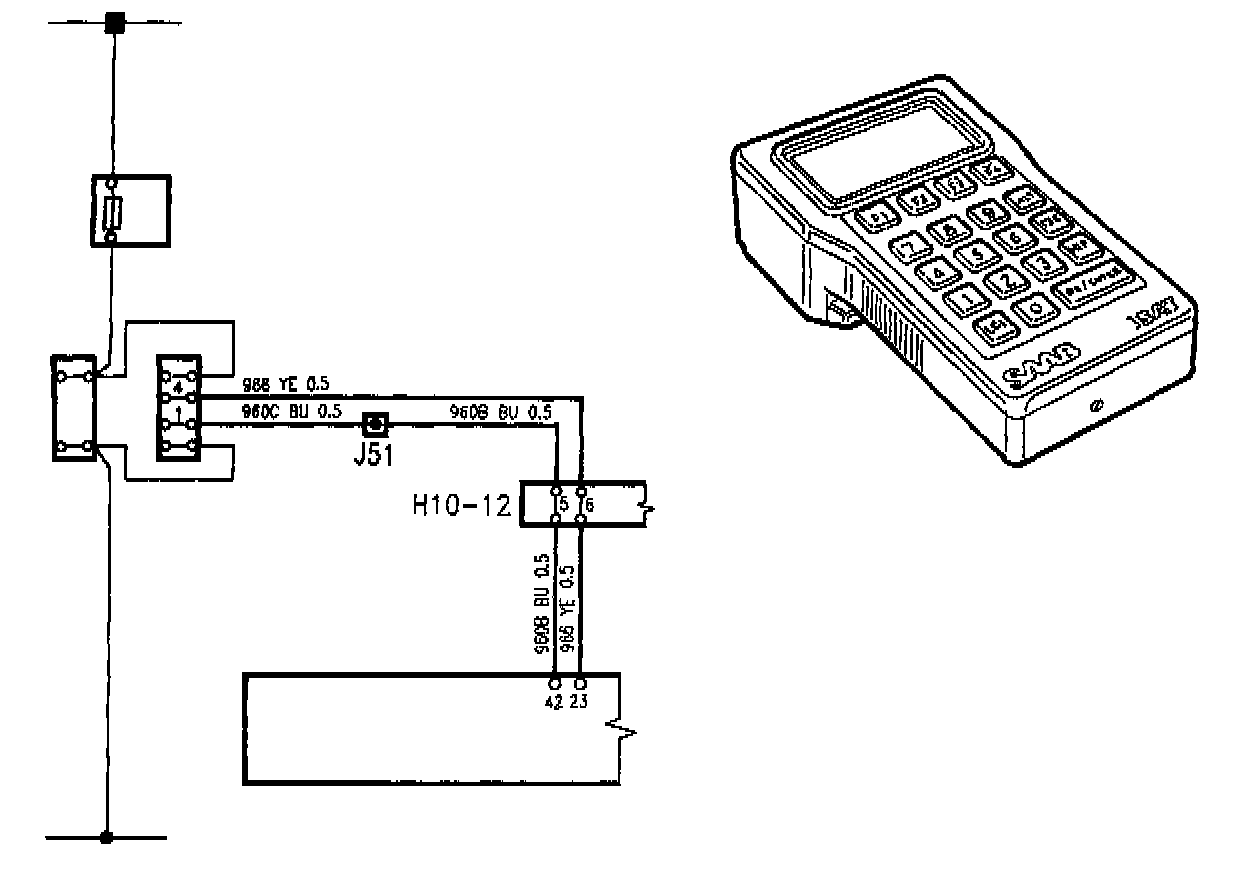

The ISAT can communicate with the Electronic Control Unit (ECU) through pin 23. Lead L.

The communication will be shown as trouble codes and command codes on the ISAT display.

Connect the ISAT to the green connector, right-hand side No. 3 Antilock Brake System (ABS)
