Output Signals: Overview

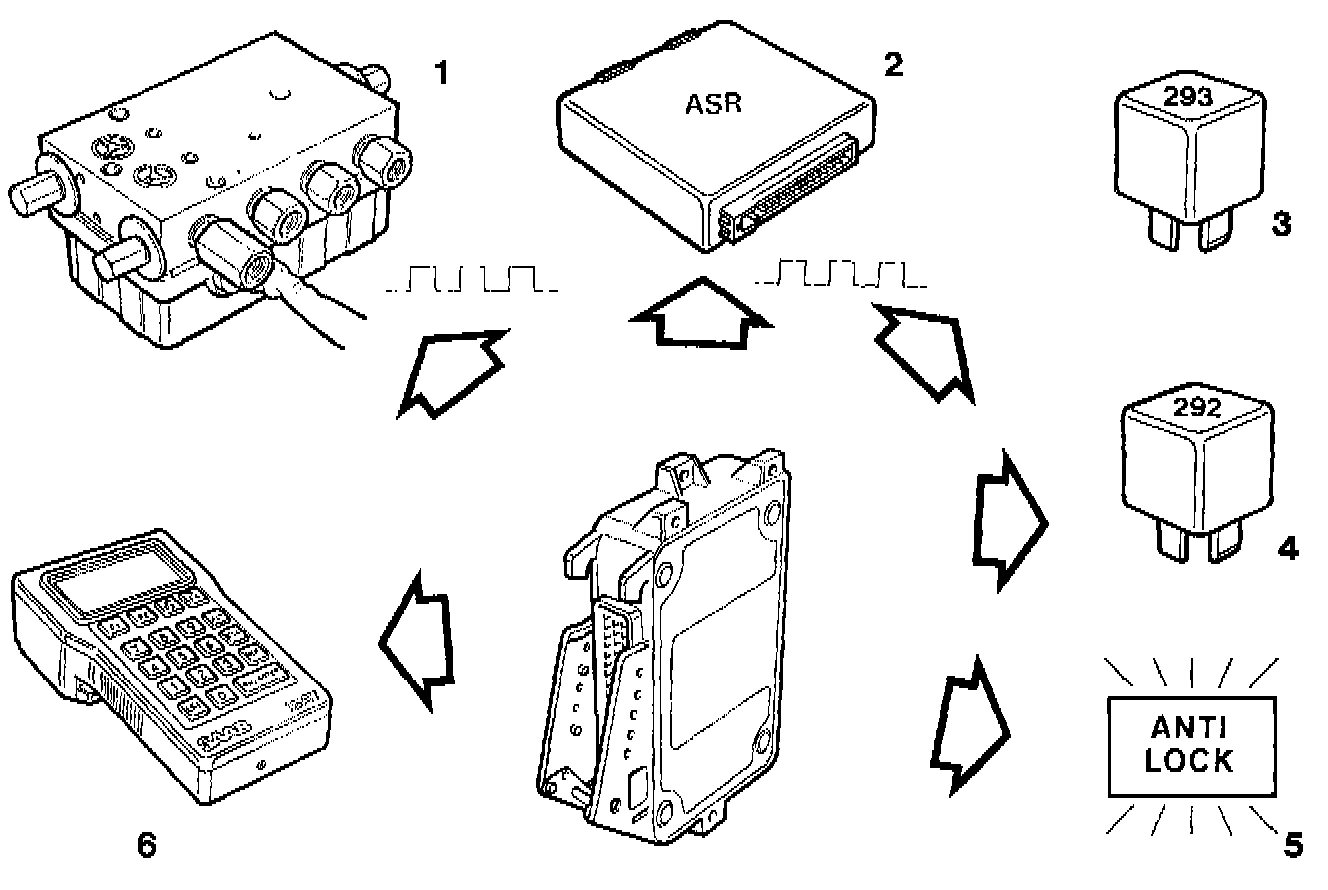

Legend 1
Valve body
Outlet valve
Pins: 2, 18, 36, 21
Inlet valve
Pins: 20, 38, 54, 55
2
Automatic Slip Regulation
(ASR) wheel speed
Pins: 9 (right rear), 10 (left front), 11 (right front), 12 (left rear)
3
Pump relay
Pin: 15
4
Main relay
Pin: 34
5
ANTI LOCK light
Pin: 52
6
To ISAT
Pin: 42
