Valve Block







Valve Block

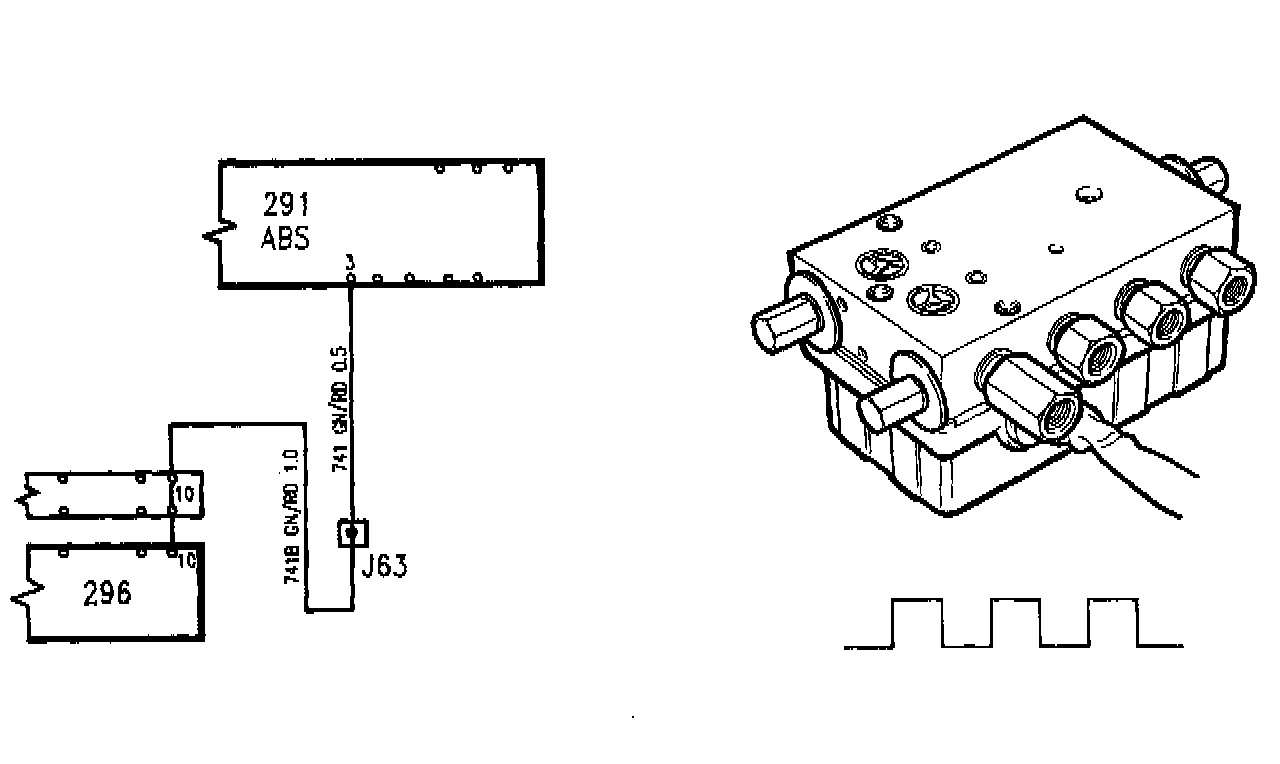

The Electronic Control Unit (ECU) receives + 12 V on pin 3.
- This also provides current to the valves on the valve block, pins 1 and 10.

The valves are grounded, if necessary, through the valve block by a Pulse Width Modulation (PWM) signal.

The frequency depends on how long the valves are activated.
