Diagnostics Mode W/O ISAT

System diagnostics performed without ISAT scan tool.
Start fault diagnosis by checking:
1 Fuses
2 Ignition
3 Grounding
4 The pins of the control module connector for possible slide-out.

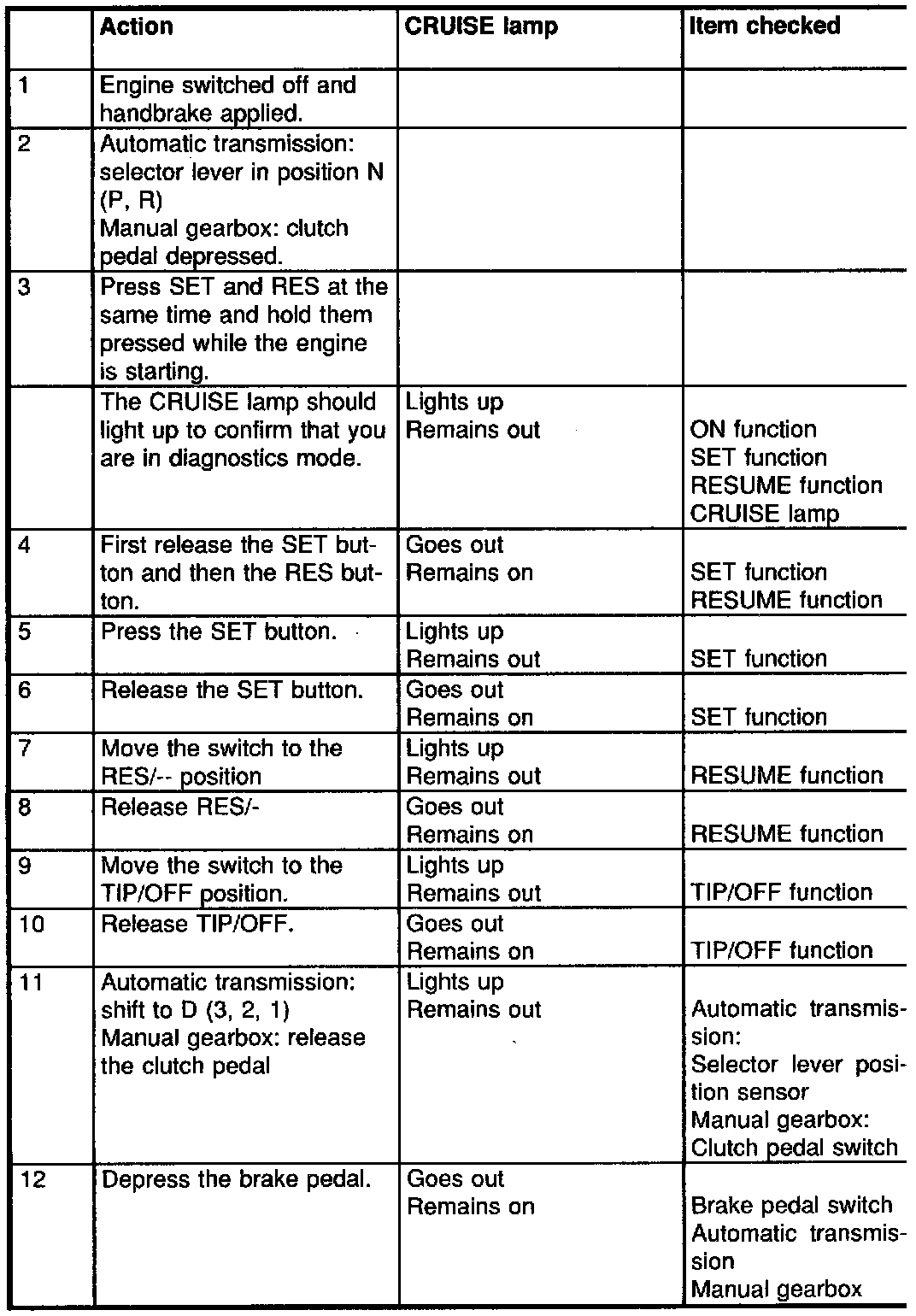

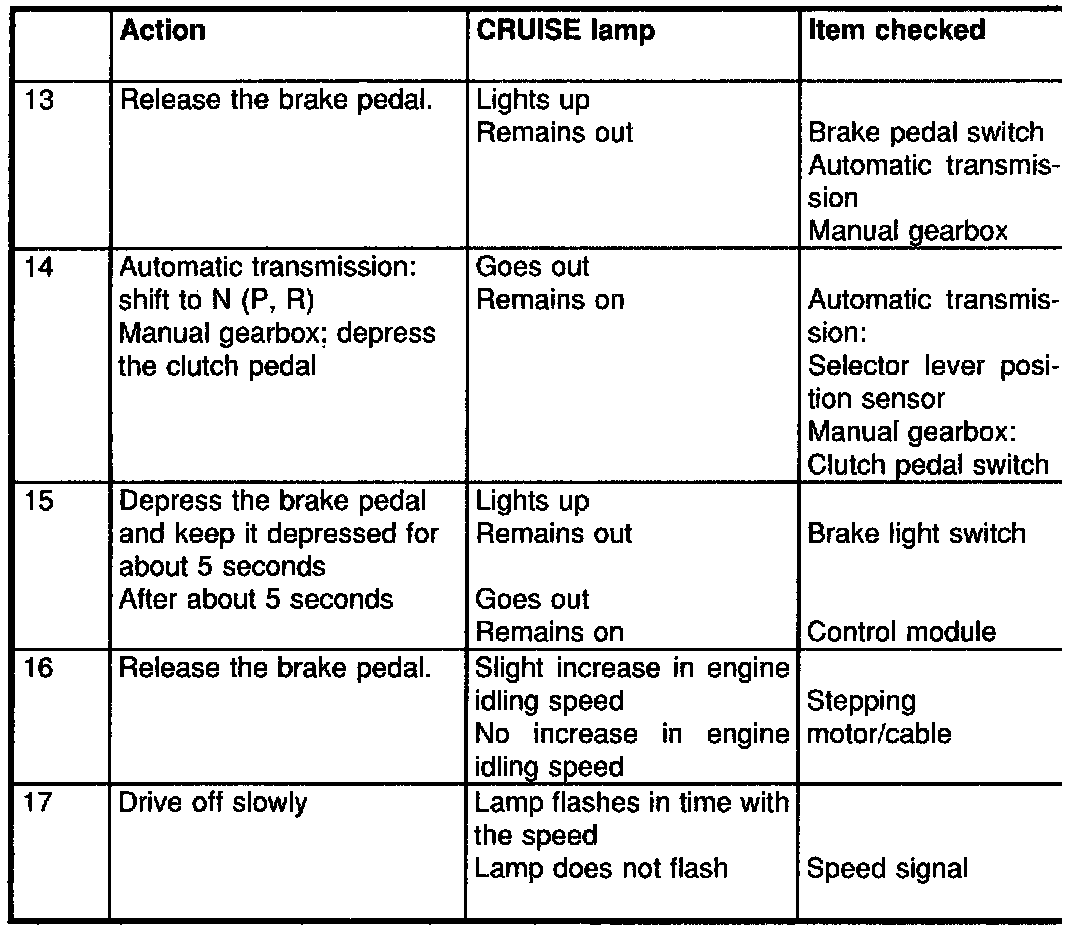

Fault diagnosis is carried out in the diagnostics mode. To enter the diagnostics mode, see the table below.

To leave the diagnostics mode, increase speed to above 32 km/h (20 mph) or turn the ignition switch to the OFF position.

If you happen to make a mistake in the diagnostics mode, you will automatically be returned to point 5 and will have to continue from there.
