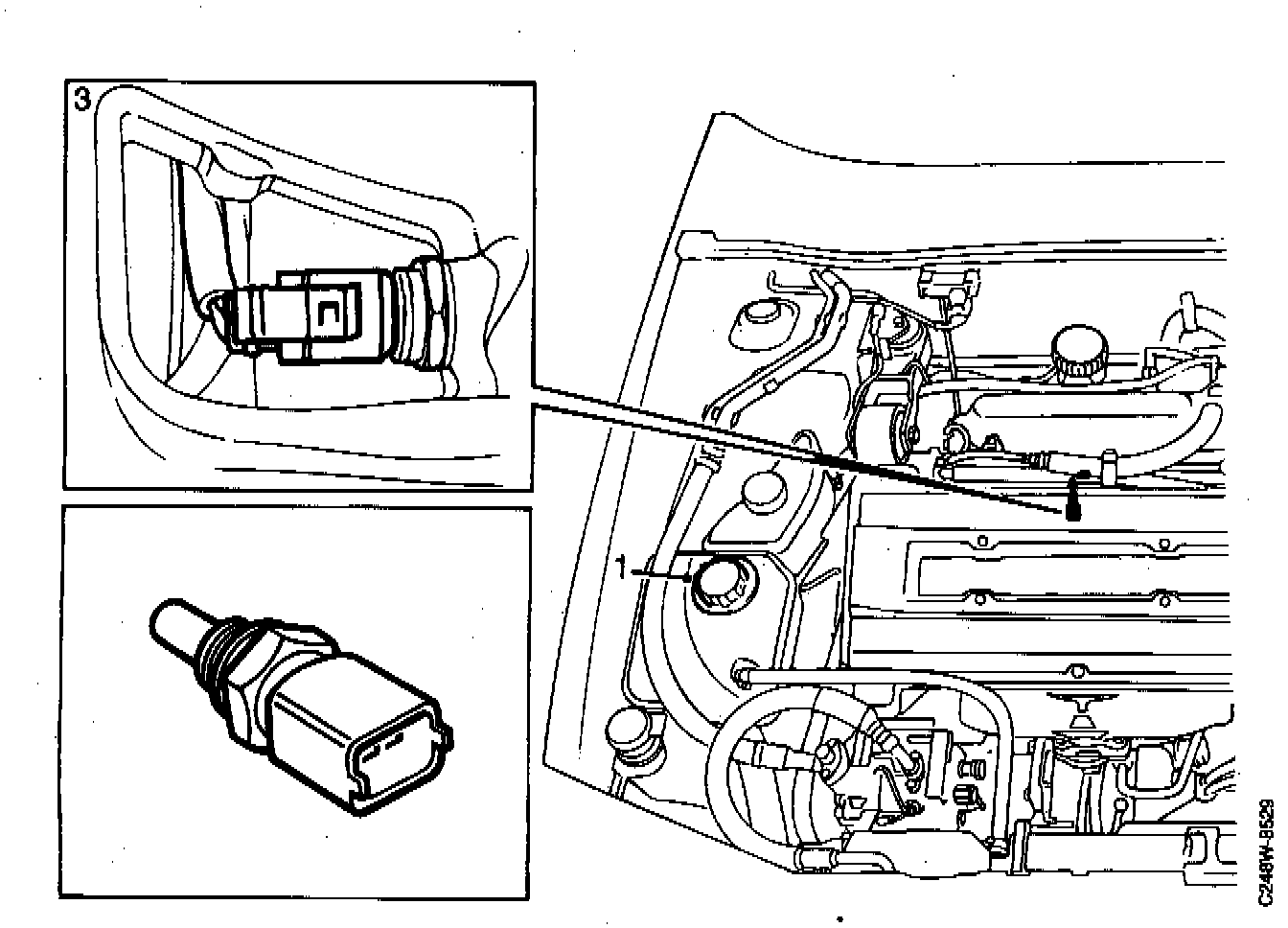

Coolant Temperature Sensor/Switch (For Computer): Service and Repair
To Remove 1
Unscrew the expansion tank filler cap to release the pressure in the cooling system. Screw the cap back on again.
2
Unplug the connector and remove the sensor.
To FitFit in reverse order.
Tightening torque:
13 Nm (9.5 ft lbs)WARNING: Coolant escaping under pressure can cause serious injury.
