Data Link Connector - Production Relocation

CATEGORY
Electrical

SECTION PAGE
3 88

ISSUE CODE
10/95-0625 000

Subject: Repositioned 9000 Data Link Connector

Application: 1996 9000 Models

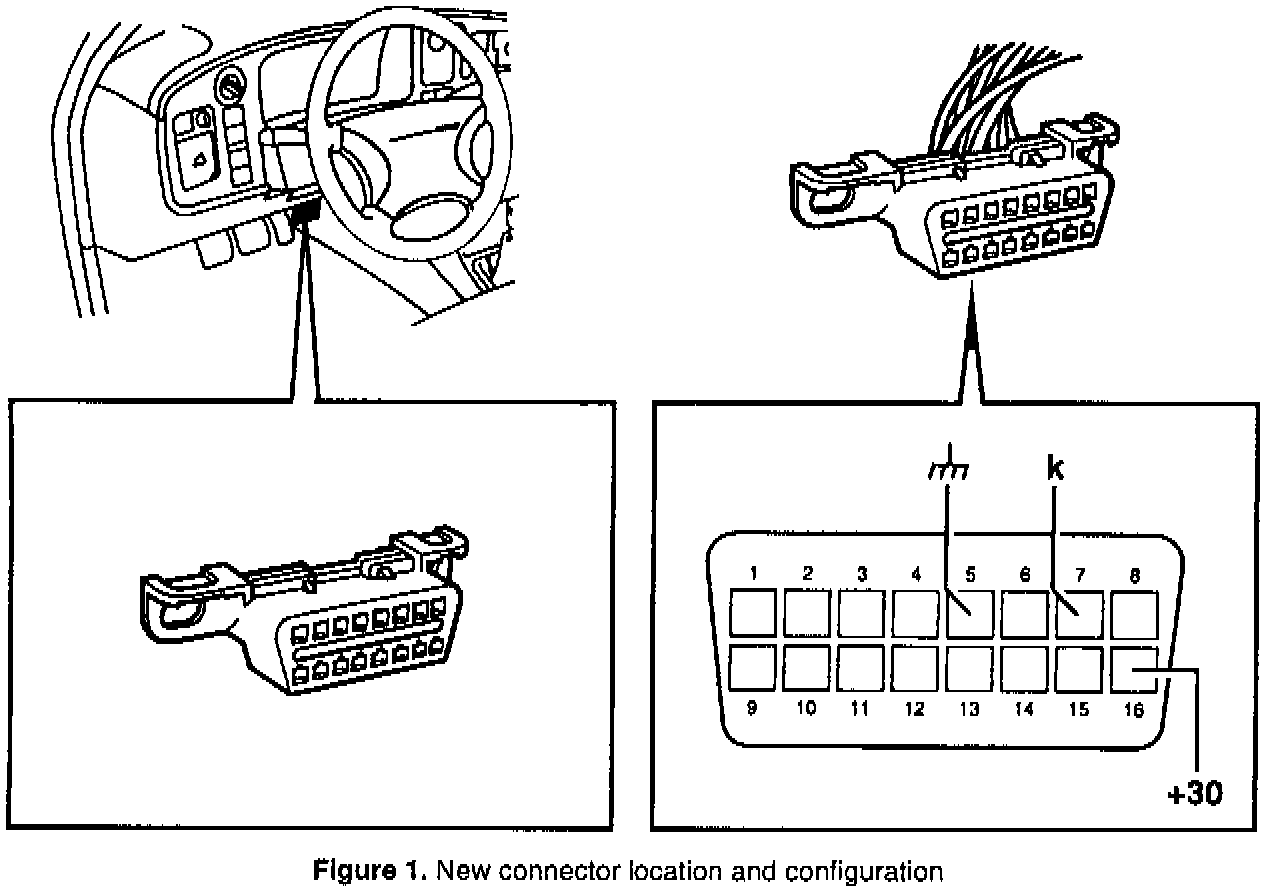

On all 1996 9000 models, the data link connector has been moved from below the front passenger seat to a position under the steering wheel. This new connector is required in order to comply with 1996 OBD II regulations. The same ISAT diagnostic cable that is used on 1994- 900 models can now also be used on all 1996 9000 models.

Cars Affected:

All 1996 9000 models.
