Saab Trionic OBD II

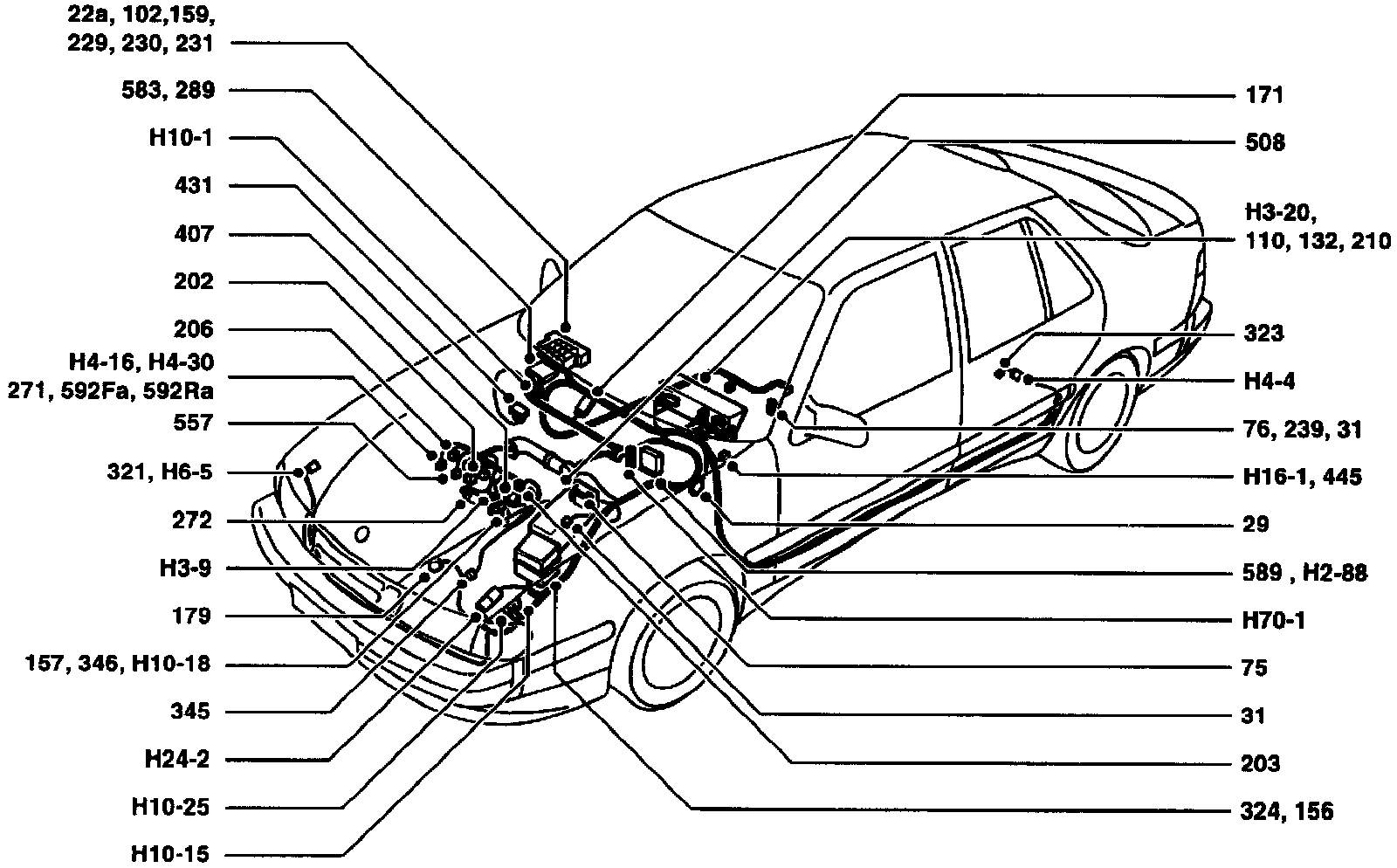

Trionic OBDII Engine Management System: Component Location:

COMPONENT LOCATION VIEW

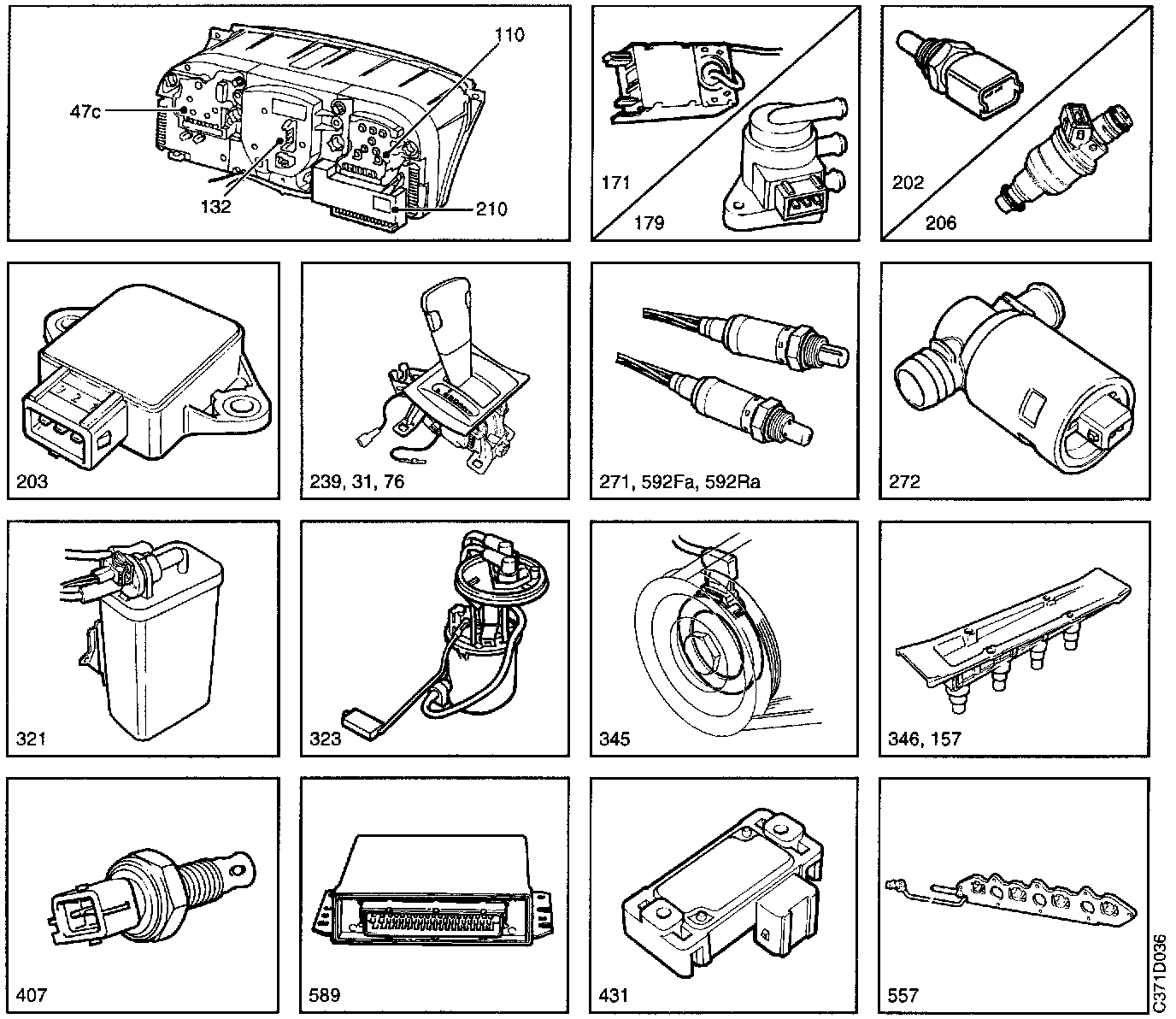

Trionic OBDII Engine Management System: Component ID:

COMPONENT ID
592Fa Oxygen sensor before the catalytic converter on the exhaust pipe adjacent to the manifold.
592Ra Oxygen sensor after the catalytic converter on the exhaust pipe adjacent to the manifold.

4-Pin Connectors
H4-16 In the engine bay under the intake manifold (black).
H4-30 In the engine bay under the intake manifold (grey).
