Speaker

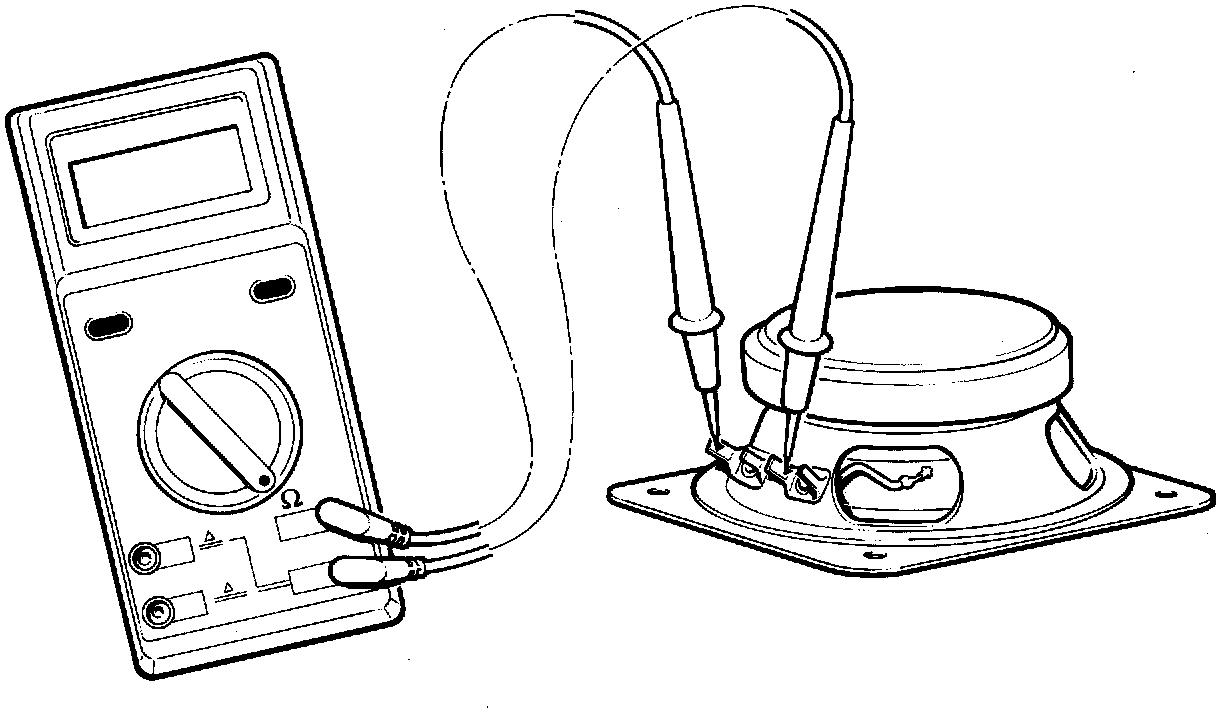

Coil resistance is measured between the speaker connector pins with connectors, filters and capacitors removed.
Audio System Premium Speaker Measurement result Front
mid-range
3 - 4.5 ohm
treble
5 - 7
ohm
Rear
bass
3 - 4.5 ohm
treble
3 - 4.5 ohm
Audio System Prestige Speaker Measurement result Front
mid-range
3 - 4.5 ohm
treble
3 - 4.5 ohm
Rear
bass
2 - 3
ohm
mid-range
3 - 4.5 ohm
treble
3 - 4.5 ohm
