Air Temperature Sensor ( Ambient / Intake ): Service and Repair

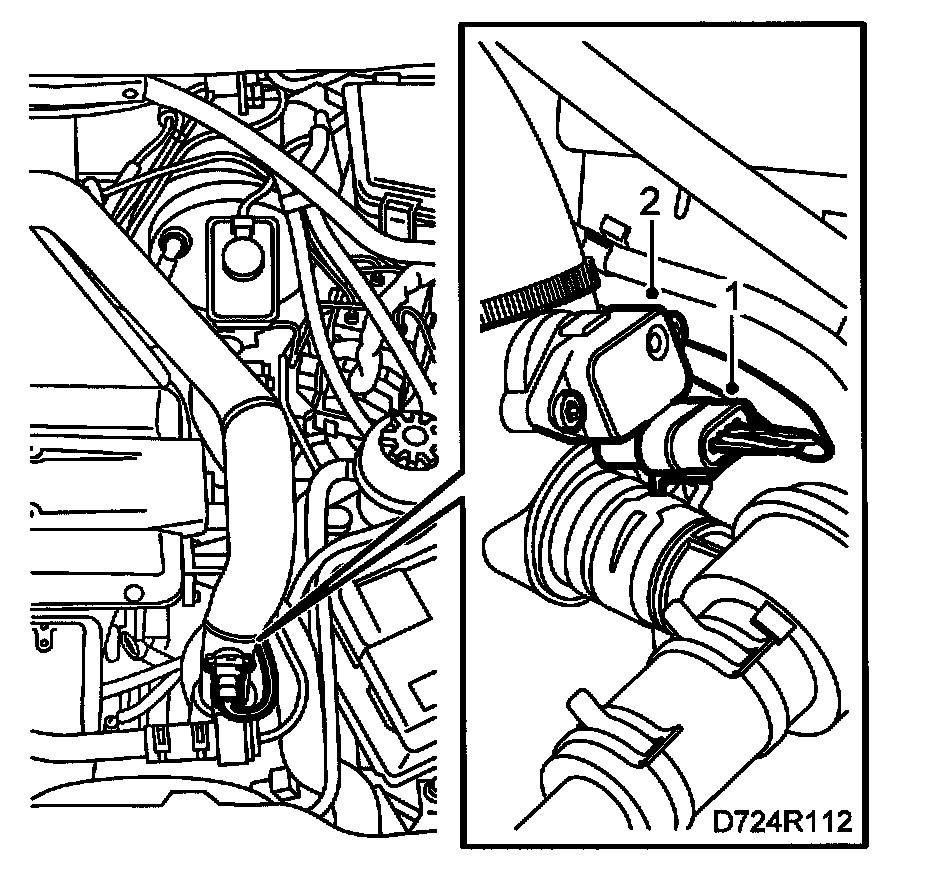

Pressure/temperature Sensor, Charge AirTo remove 1.
Unplug the sensor connector.
2.
Undo the connector.

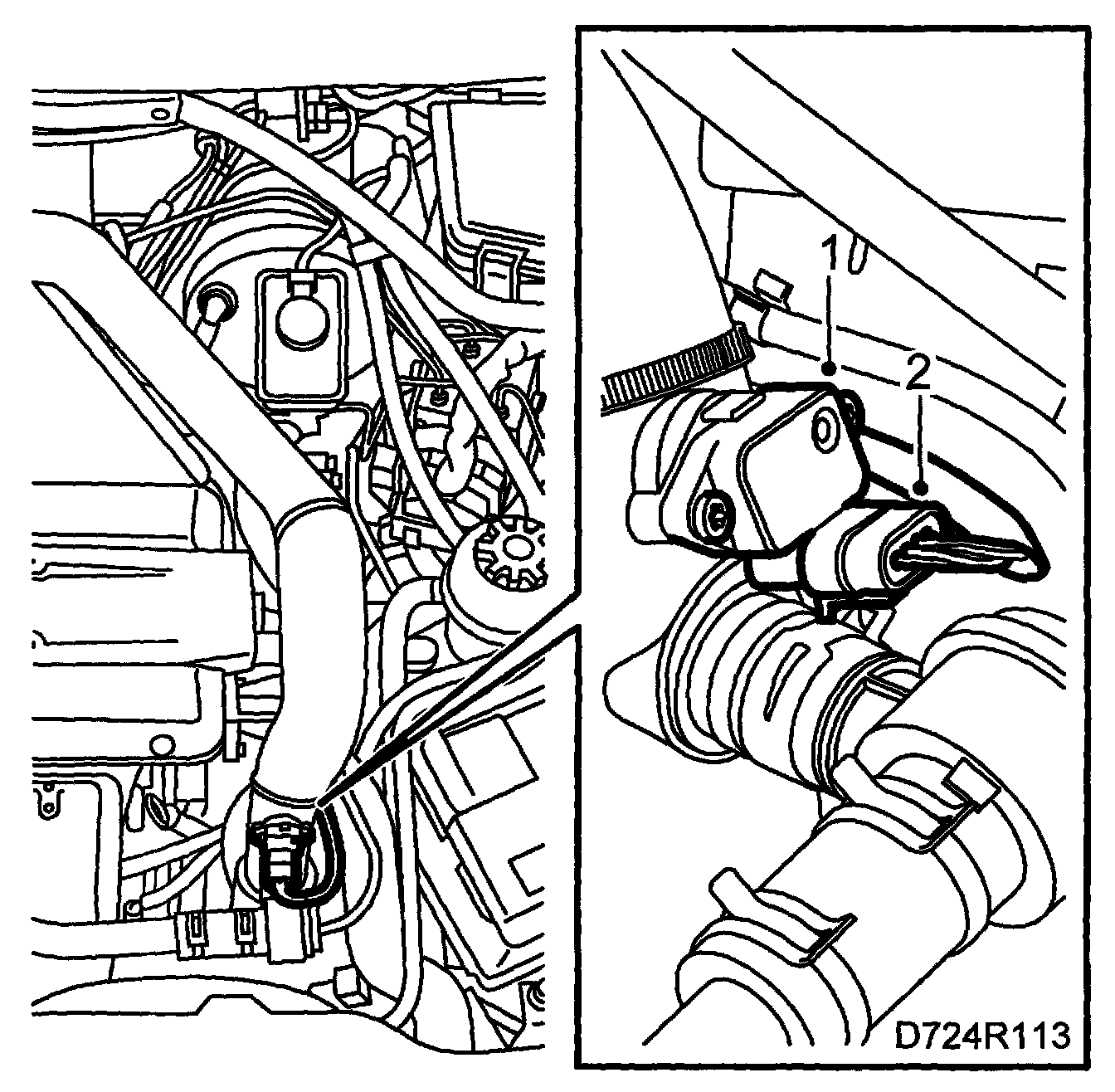

To fit 1.
Apply petroleum jelly (part no.30 04 520) or the equivalent sparingly to the sensor O-rings. Fit the sensor.
2.
Spray the connector with Kontakt 61 (part no.30 04 520). Plug in the connector.
