Gear Selector Position Sensor
Selector Lever Position Sensor Component Illustration:

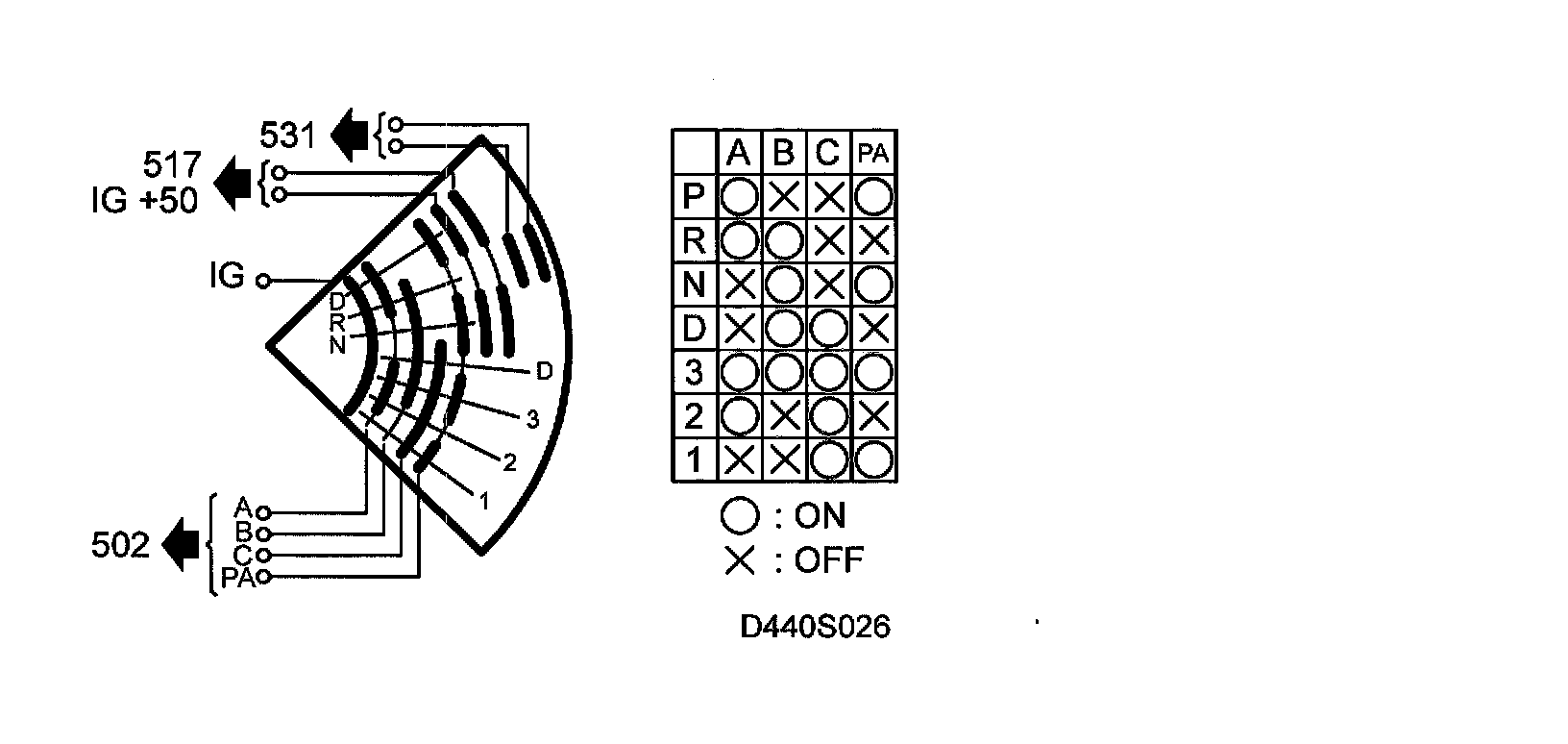

Internal Connection Diagram:
Location
On the gearbox
To fit
Adjustment required for proper operation
Type
lip contacts
Power supply (+15 circuit)
IG contact
Function:
Selector lever position
A, B, C and PA contacts
Starter motor interlock
SR contact
Reversing lights
RL contact
Resistance:
Open contact
OL (�)
Closed contact
<5 Ohm
