Control Module

Control module

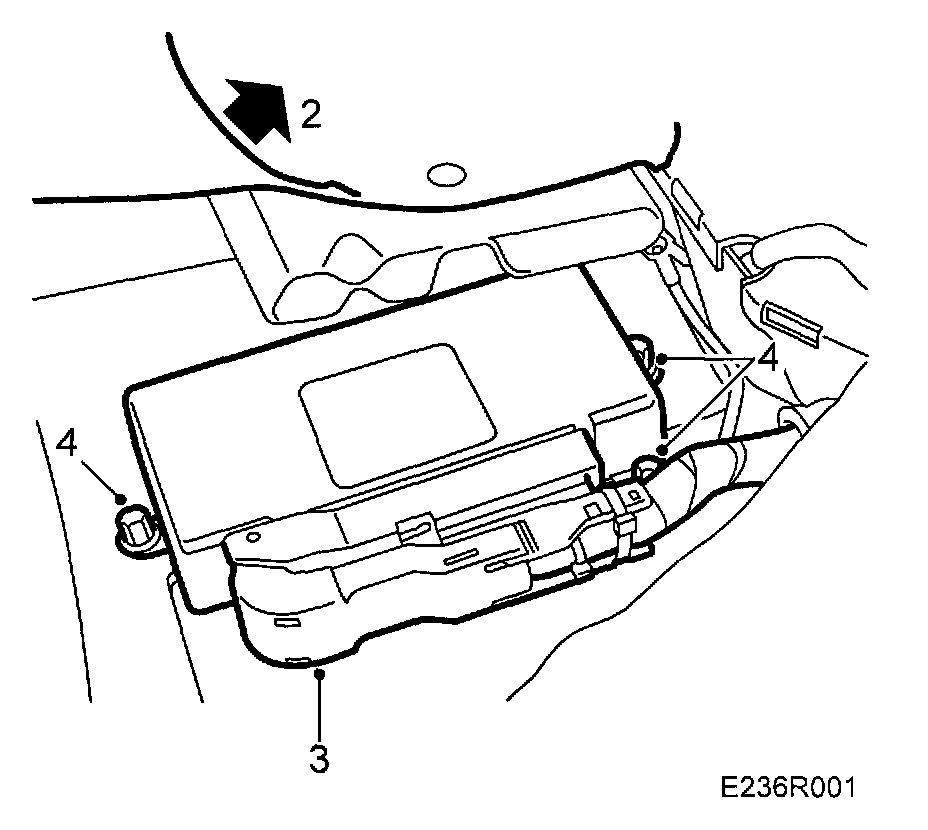

To remove
1. Undo and lift out the left-hand front seat.







2. Lift the carpet and fold aside.
3. Unplug the connector to the module.
4. Remove 3 plastic nuts and lift out the module.

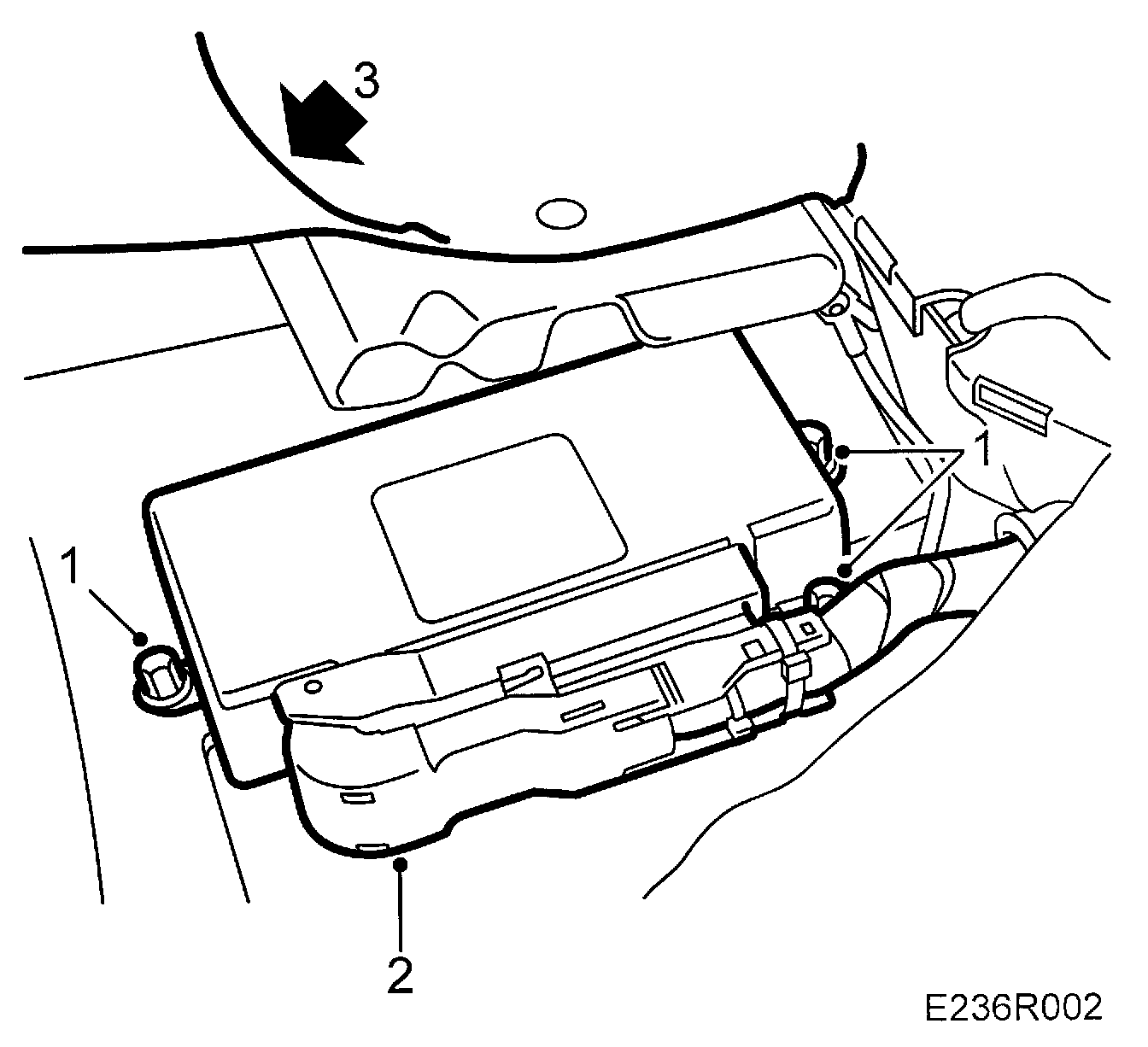

To fit







1. Position the module and fasten it with the 3 plastic nuts.
2. Plug in the connector on the module.
3. Replace the carpet.
4. Refit the front seat.
5. Once the TWICE control module has been changed, it must be programmed in the car.
