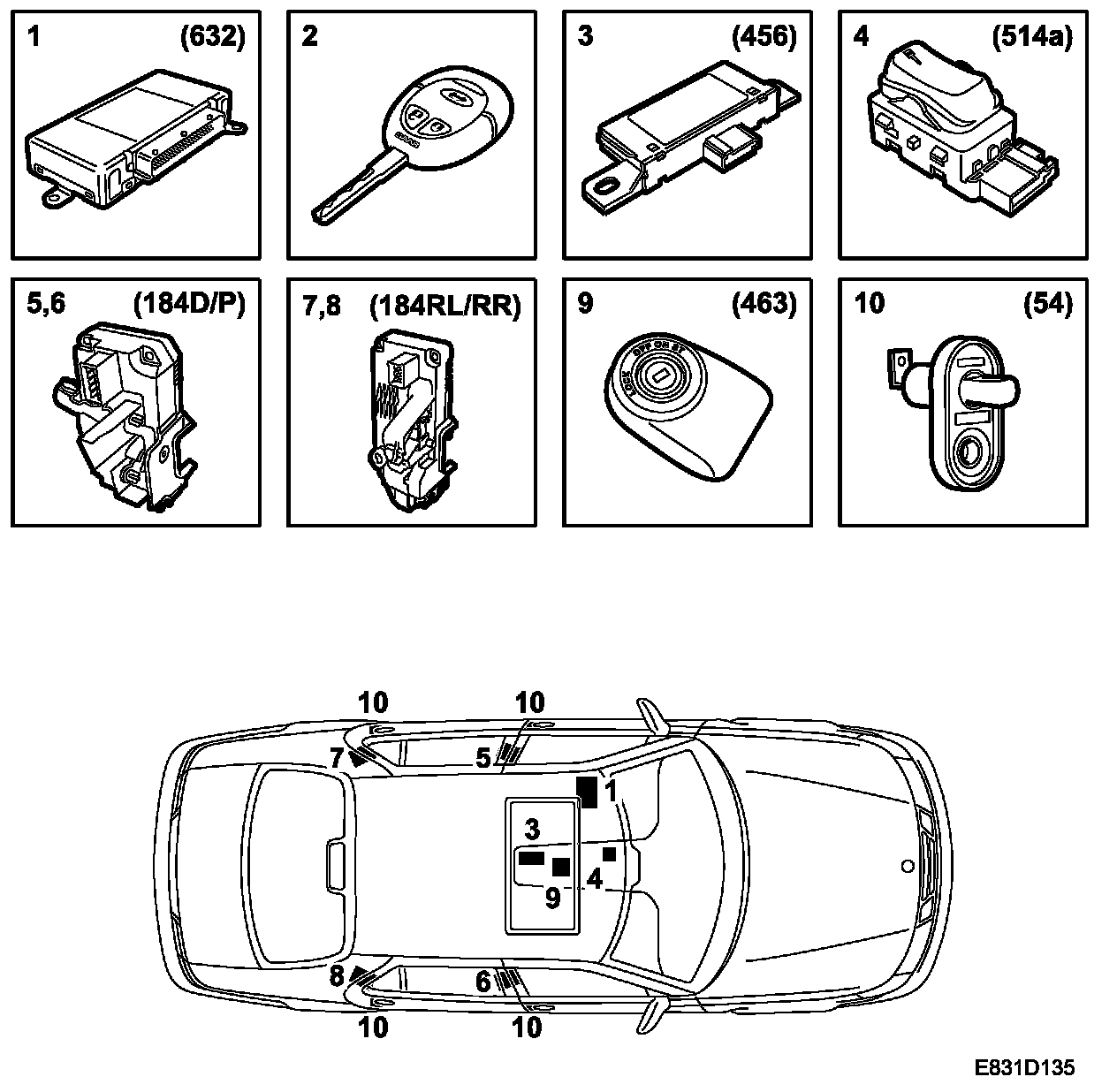

Main Components, Central Locking System
Main Components, Central Locking System 1.
Control module, TWICE
2.
Remote control
3.
Receiver, remote control
4.
Switch, centre console
5.
Central locking system unit with motor, driver
6.
Central locking system unit with motor, passenger
7.
Central locking system unit with motor, rear left
8.
Central locking system unit with motor, rear right
9.
Antenna unit, immobilizer
10.
Door switch
