Control Module, PMM

Control Module, PMM

To remove


IMPORTANT
ESD-SENSITIVE COMPONENT
Earth yourself by touching the car body before plugging in / unplugging components. Do not touch the component pins. Read Before changing a control module before changing a control module. Before Changing A Control Module


1. Remove the glove box.
2. Remove the air duct.

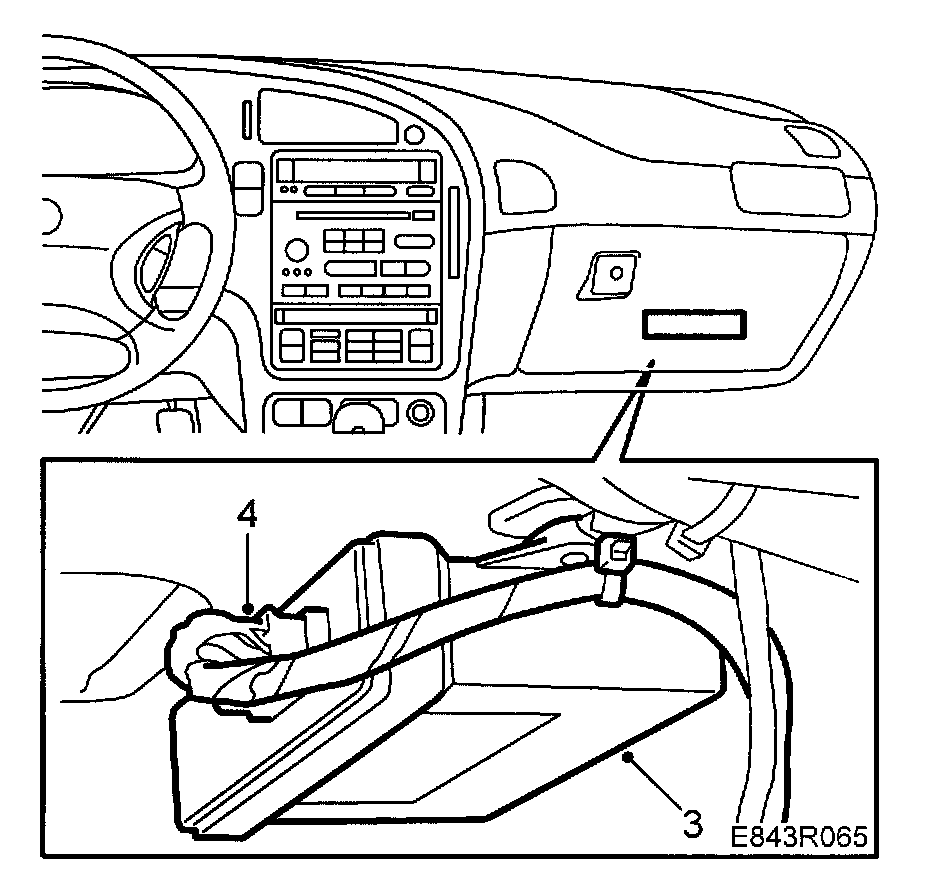

3. Unhook the control module from the plastic clip.
4. Unplug the connector.

To fit


IMPORTANT
ESD-SENSITIVE COMPONENT
Earth yourself by touching the car body before plugging in / unplugging components. Do not touch the component pins. Read "Before changing a control module" before changing a control module.

1. Plug in the connector.
2. Fit the control module.
3. Refit the air duct.
4. Fit the glove box.
