System Relay: Service and Repair
Relay, A/CTo remove 1

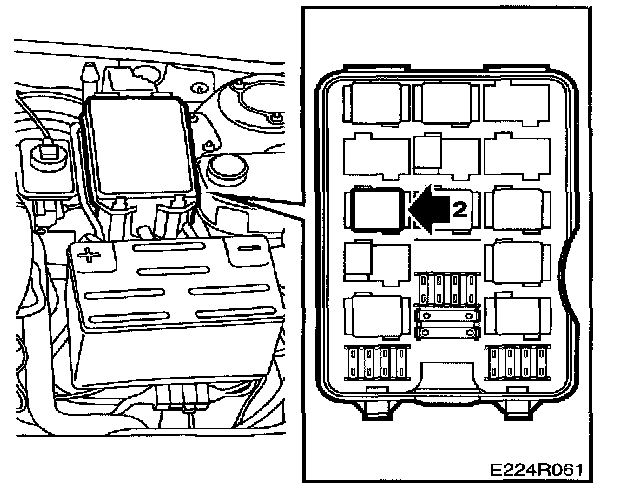

Take the cover off the box for relays and fuses in the engine bay.
2
Remove the relay by carefully moving the catch aside and then pulling the relay straight up.
To fit 1
Spray the contacts in the relay holder with Kontakt 61 contact cleaner (part No. 30 21 763).
2
Fit the relay.
3
Put the cover back on.
