Mixed-Air Temperature Sensor, ACC
Mixed-Air Temperature Sensor (217 LH/RH):

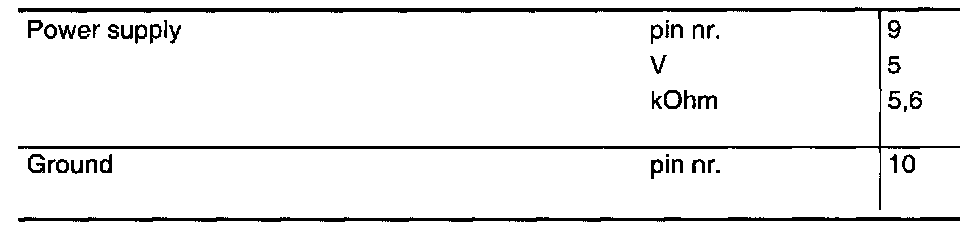

5V power supply through
5.6 kohm resistor in the control module.

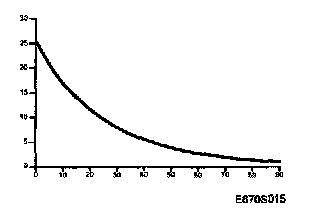

°C (F°) kOhm0 (32)
25,5-30,5
10 (50)
16,8-19,7
20 (68)
11,3-13,0
30 (86)
7,8-8,8
40 (104)
5,4-6,1
50 (122)
3,9-4,3
60 (140)
2,8-3,2
70 (158)
2,1-2,3
80 (176)
1,5-1,7
90 (194)
1,1-1,3
