Control Module Bus Inputs
Control Module Bus Inputs -

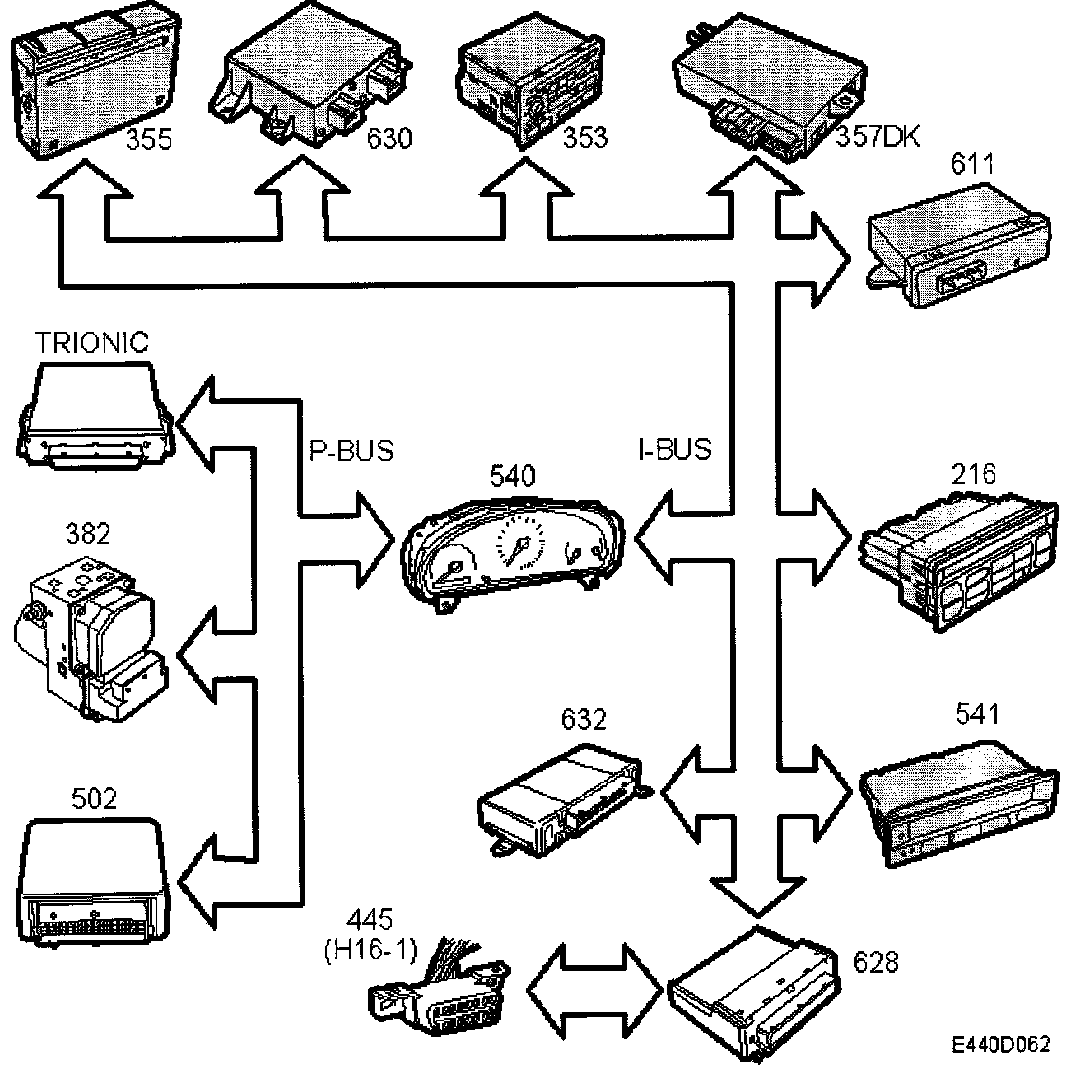

Bus communication
-
Accelerator position (Bus from Trionic) (430/600)
-
Engine torque (Bus from Trionic) (430)
-
Kickdown (Bus from Trionic) (430/600)
-
Engine speed (Bus from Trionic)(430/600)
-
Brake lights (Bus from TWICE) (632)
