Level Sensor

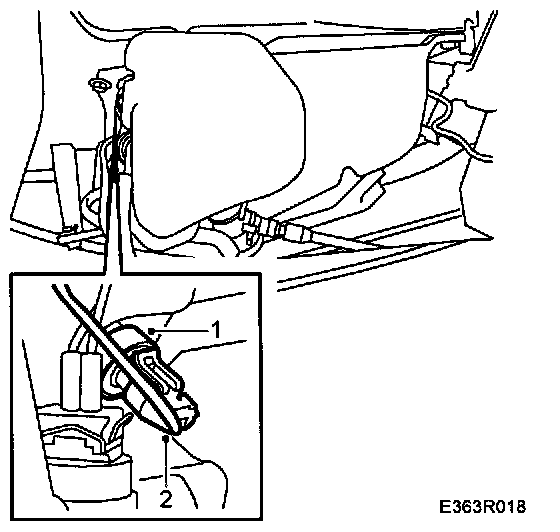

Level sensor
To remove 1.
Drain the washer fluid reservoir.
2.
Raise the car.
3.
Unplug the connector.
4.
Pull out the level sensor from the washer fluid reservoir.
To fit 1.
Press the level sensor into the washer fluid reservoir with the float hanging downwards.
2.
Plug in the connector.
3.
Lower the car.
4.
Fill with
washer fluid
