Control Module Inputs, Outputs, Bus For the Immobilizer

Control Module Inputs For The Immobiliser







- Car key
- Antenna unit, immobiliser (463)
- Antenna, remote control (456)
- Ignition switch (20)

Control Module Inputs For The Immobiliser, Bus







- Identification number from (540)
- Diagnostics communication

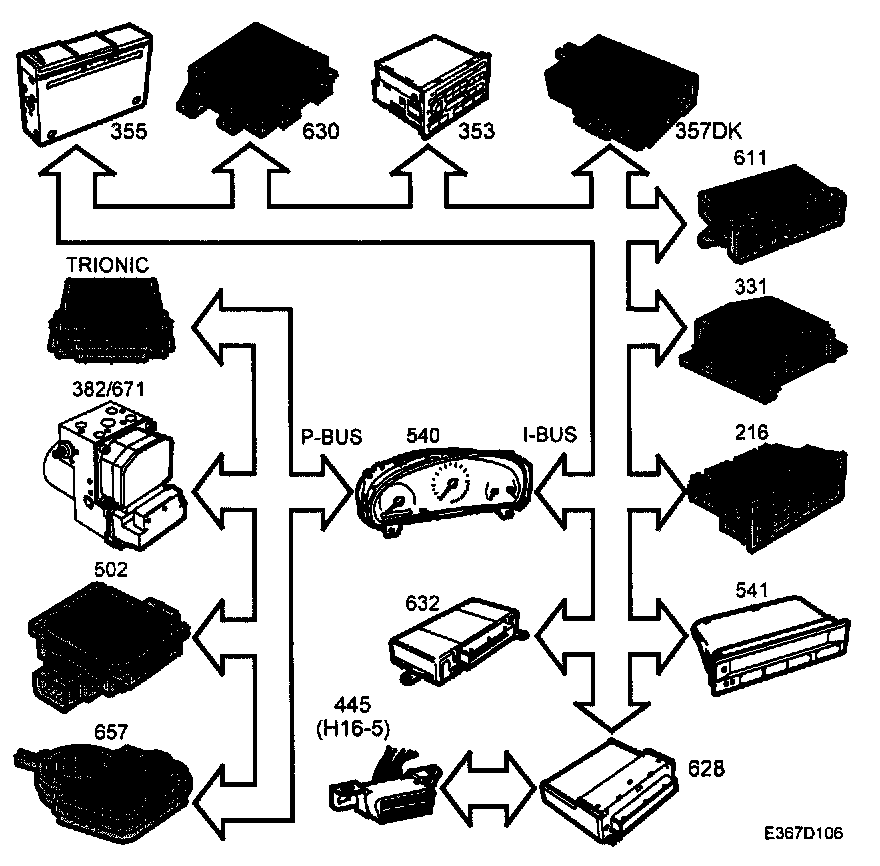

For a further description of the input information from the bus to the control module Bus Communication
For a further description of diagnostics, see Bus and diagnostics communication. See Powertrain Management/Computers and Control Systems/Information Bus.

Control Module Outputs For The Immobiliser







- Starting relay (517)
- Antenna unit, immobiliser, power supply (463)

Control Module Outputs For The Immobiliser, Bus







- Immobiliser (on/off) used by Trionic
- Key Correct (on/off) used by Audio system (353), CD changer (355)
- Text message used by SID (541)
- Diagnostics communication

For a further description of the input information from the bus to the control module Bus Communication
For a further description of diagnostics, see Bus and diagnostics communication. See Powertrain Management/Computers and Control Systems/Information Bus.
