Load Angle Sensor, Front

Load Angle Sensor, Front

To remove
1. Raise the car.
2. Remove the belt cover.

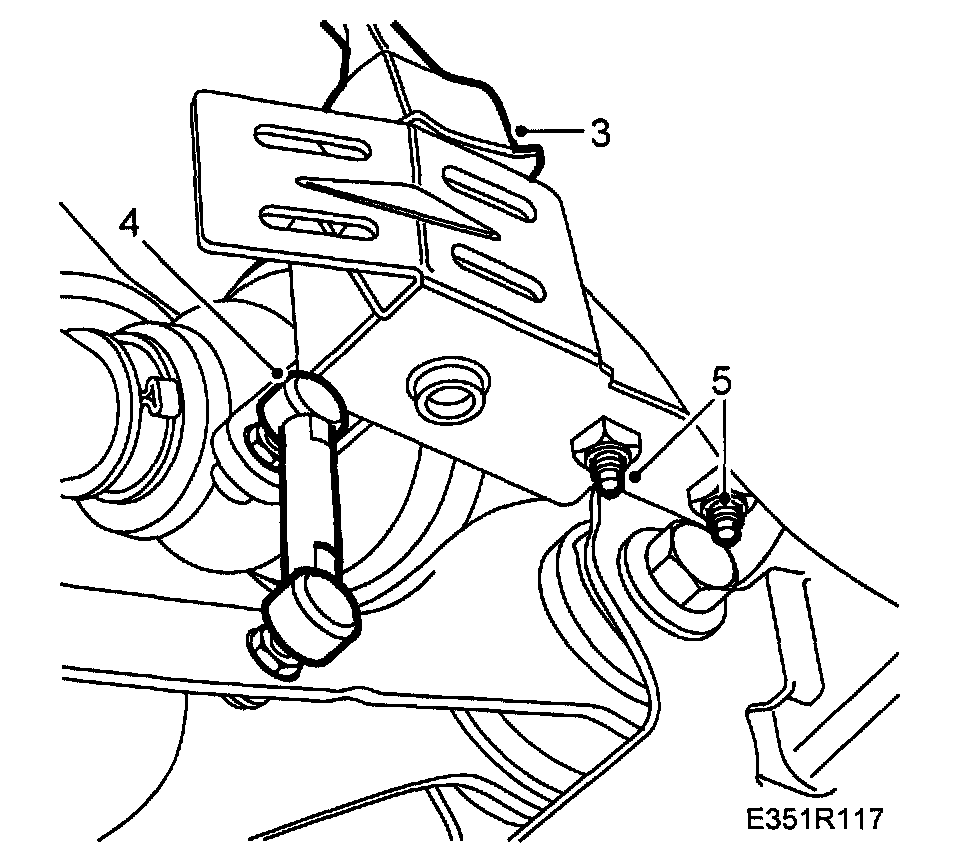

3. Unplug the sensor.
4. Loosen the upper link arm ball joint.
5. Remove the bracket with sensor by undoing the screws.

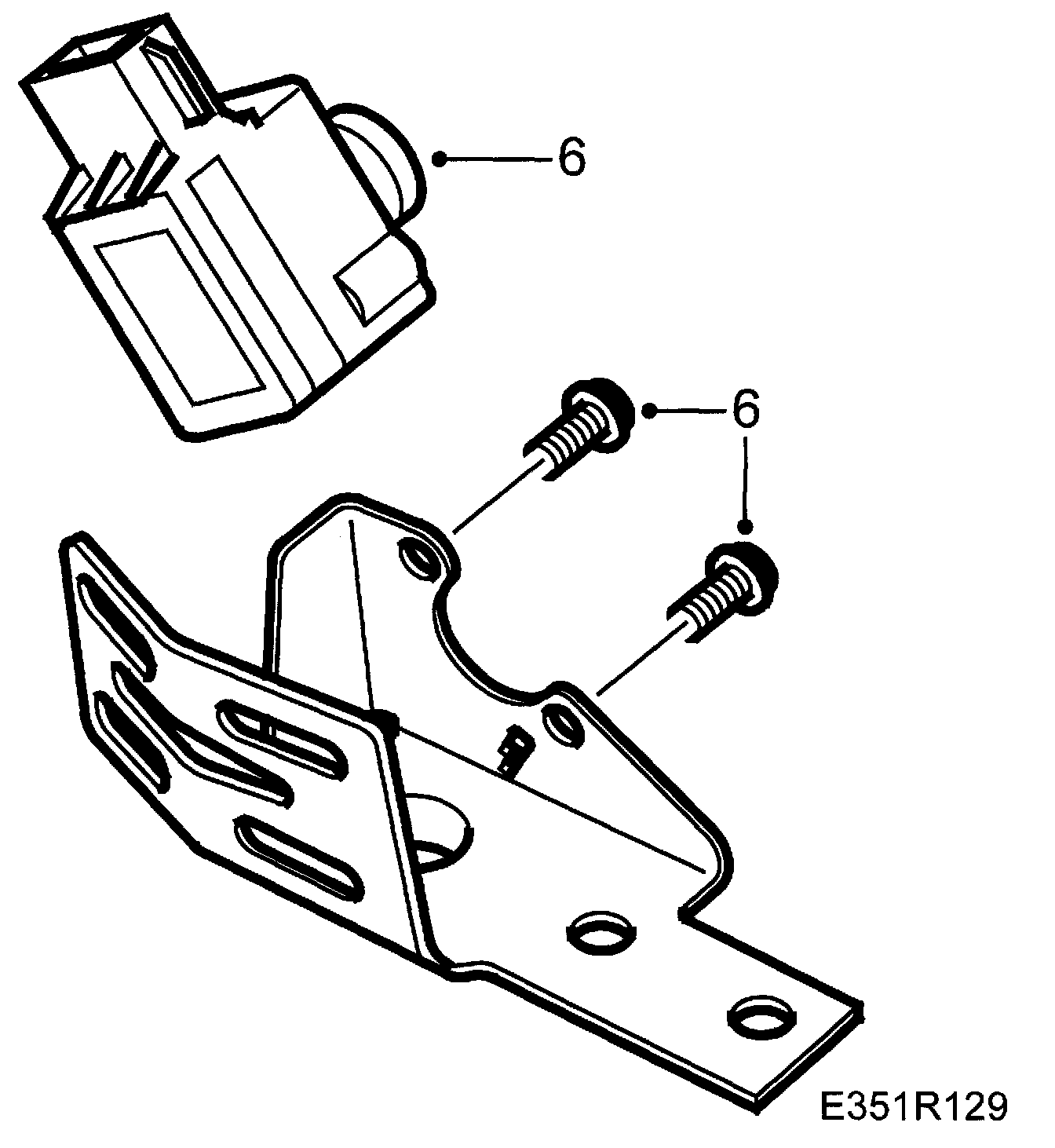

6. Remove the sensor from the bracket by undoing the screws.

To fit

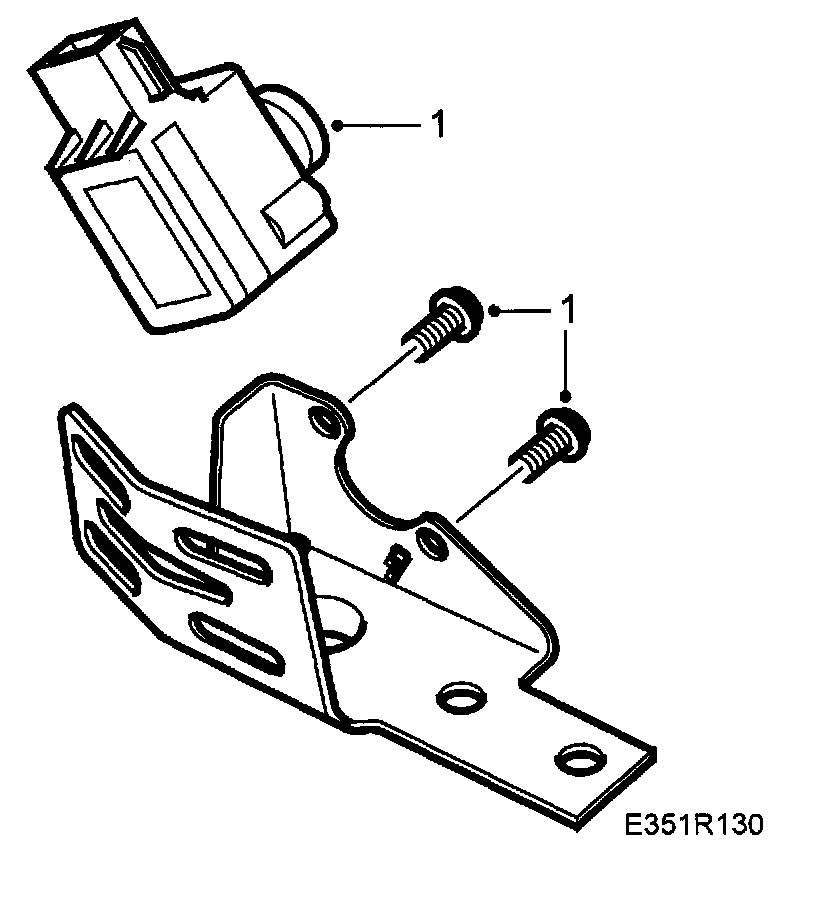

1. Fit the sensor to the bracket by screwing in the screws.

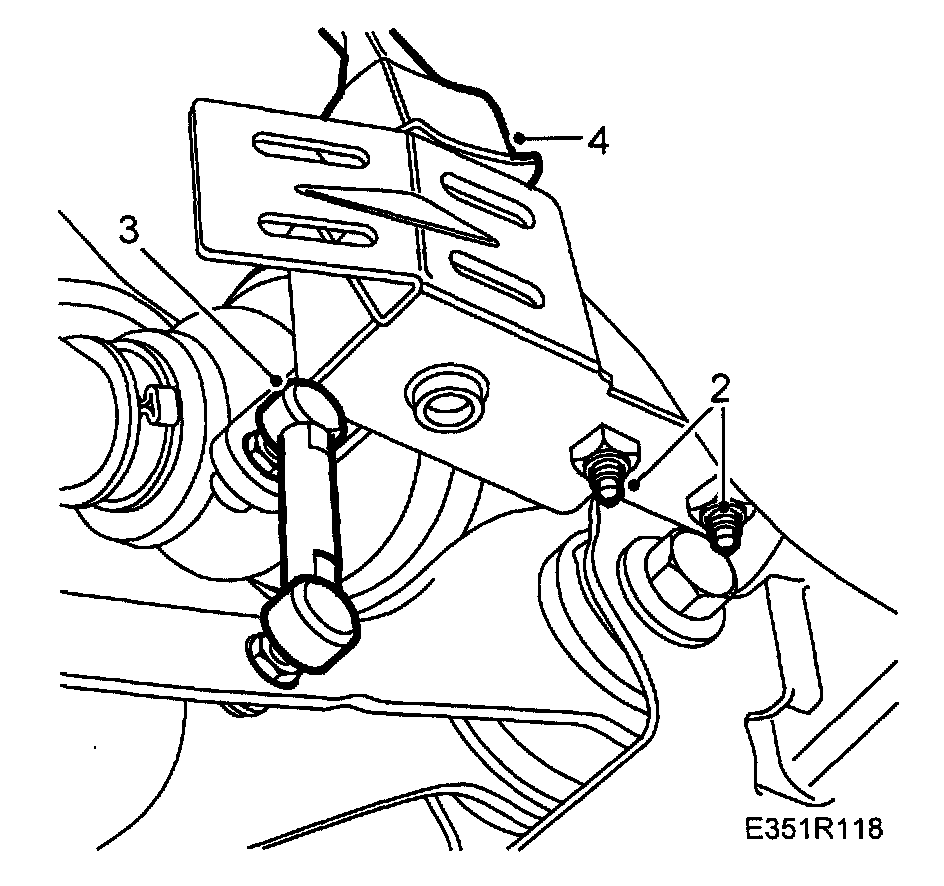

2. Fit the screws and bracket with level sensor.
3. Fit the link arm ball joint.
4. Plug in the connector.
5. Fit the belt cover.
6. Calibrate both AHL control modules.
7. Align the headlights.
8. Clear any trouble codes.
