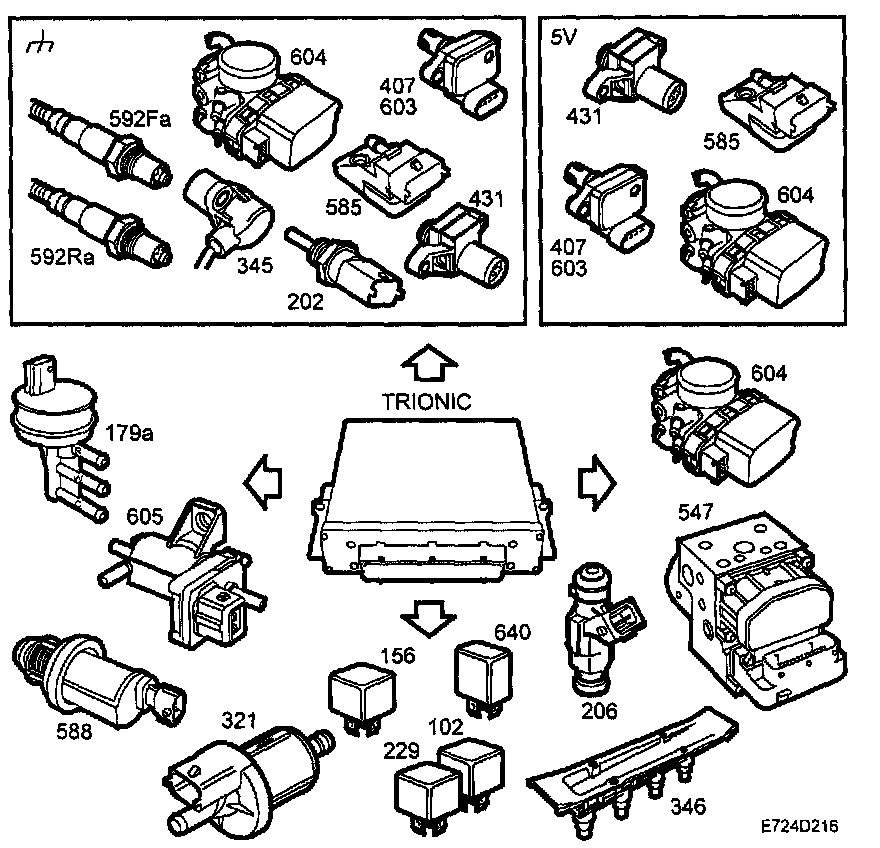

Control Module Outputs




Control Module Outputs







- Sensor ground, reference ground, see Ground
- 5V supply to sensor, see 5 V supply
- Main relay and fuel pump relay, see Main relay/Fuel pump relay
- A/C relay (156), see A/C relay
- Throttle motor, see Throttle control
- Relay, limp-home solenoid (640), see Throttle control
- Charge air control valve (179a), see Turbo control
- Control valve, bypass (605), see Control valve, bypass
- EVAP canister purge valve (321), see Purging
- EVAP canister shut-off valve (588), see Purging
- Injectors (206), see Injectors
- Ignition discharge module (346), see Ignition discharge module
