Pistons

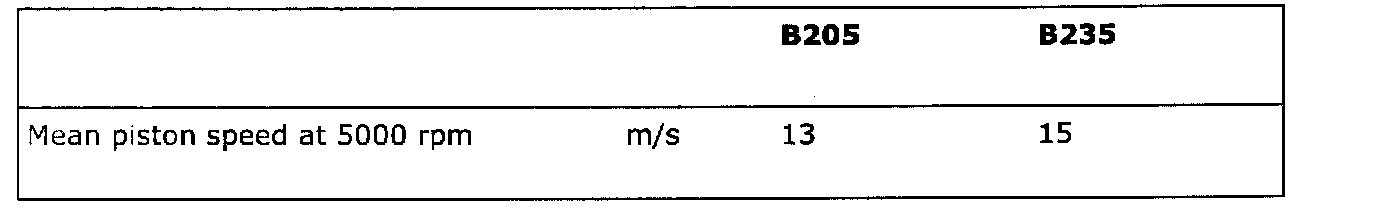

Pistons General data

Specification Table:

Important: Different makes of piston must not be fitted in the same engine.

Piston Types

Component Illustration (B235E/R):

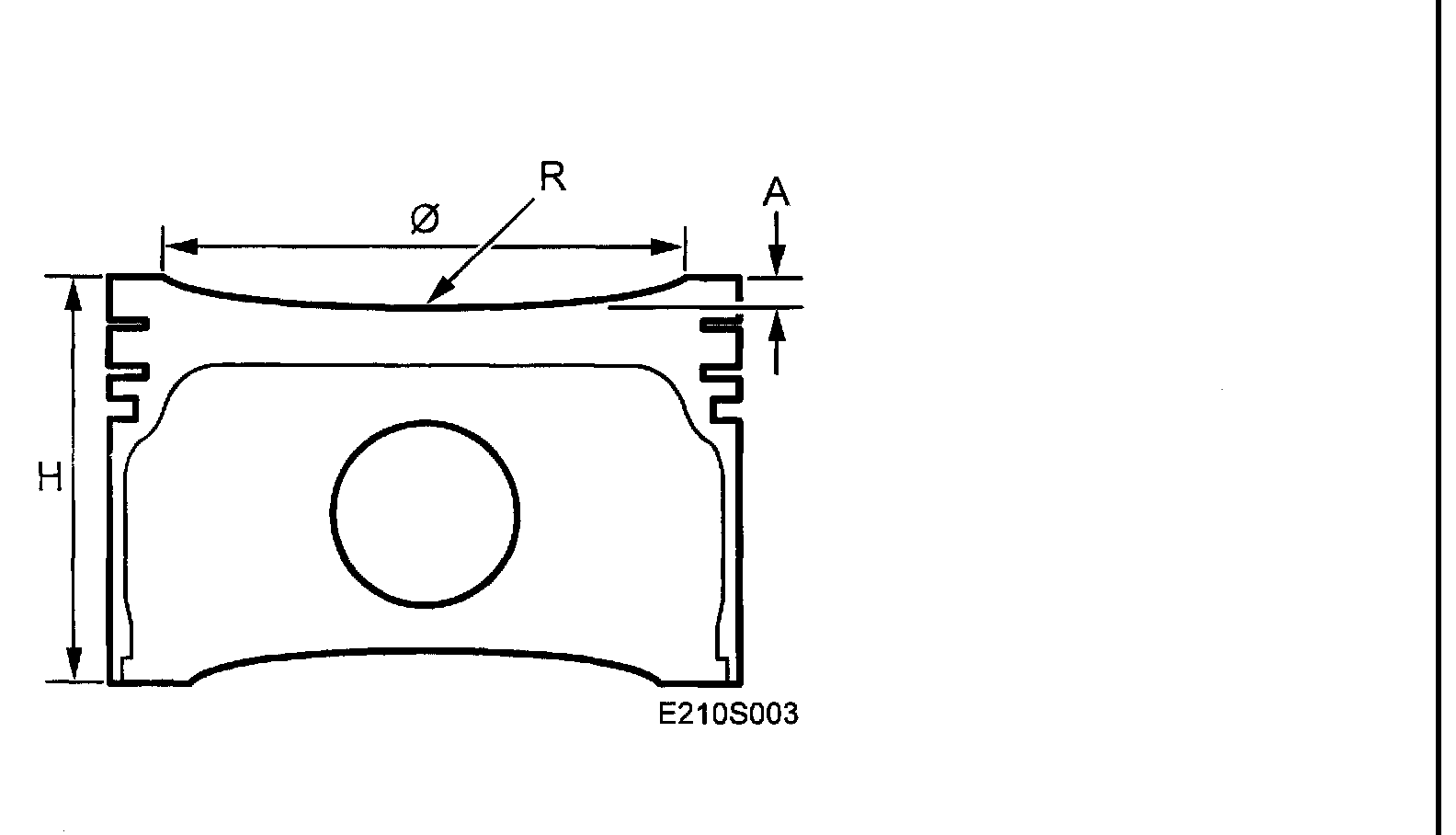

Component Illustration (B205E):

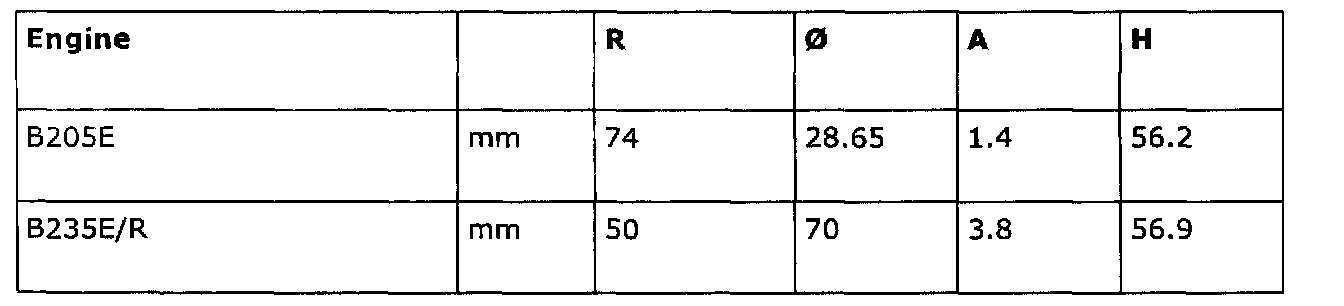

Specification Table:

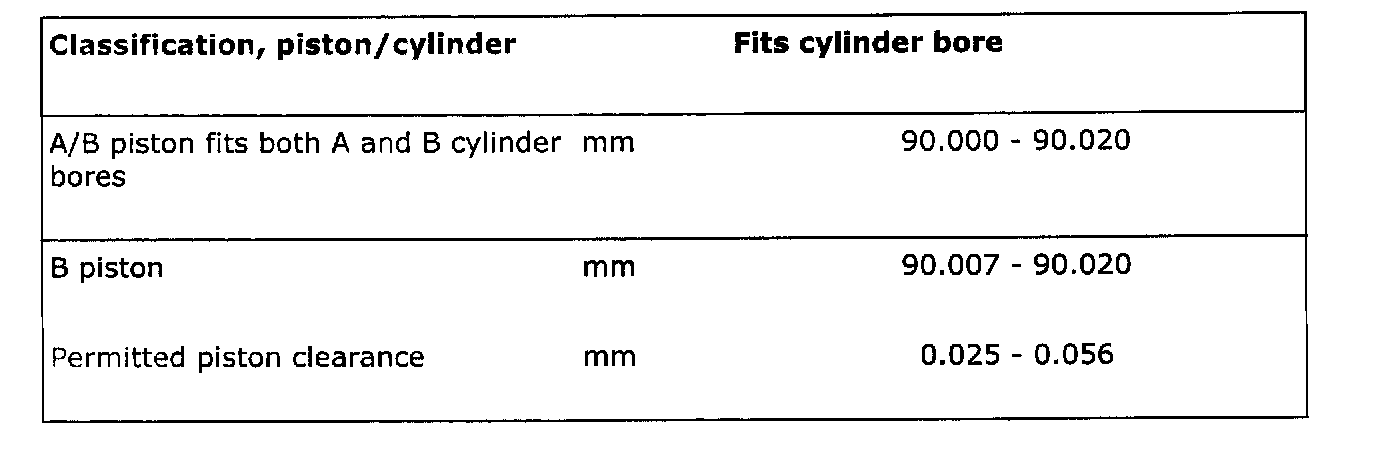

Classification Of Pistons And Cylinder Bores
The piston classification is stamped on the piston crown roof. The piston classes for service are B
First oversize (+0.5)
Second oversize (+1.0)

Piston Classification

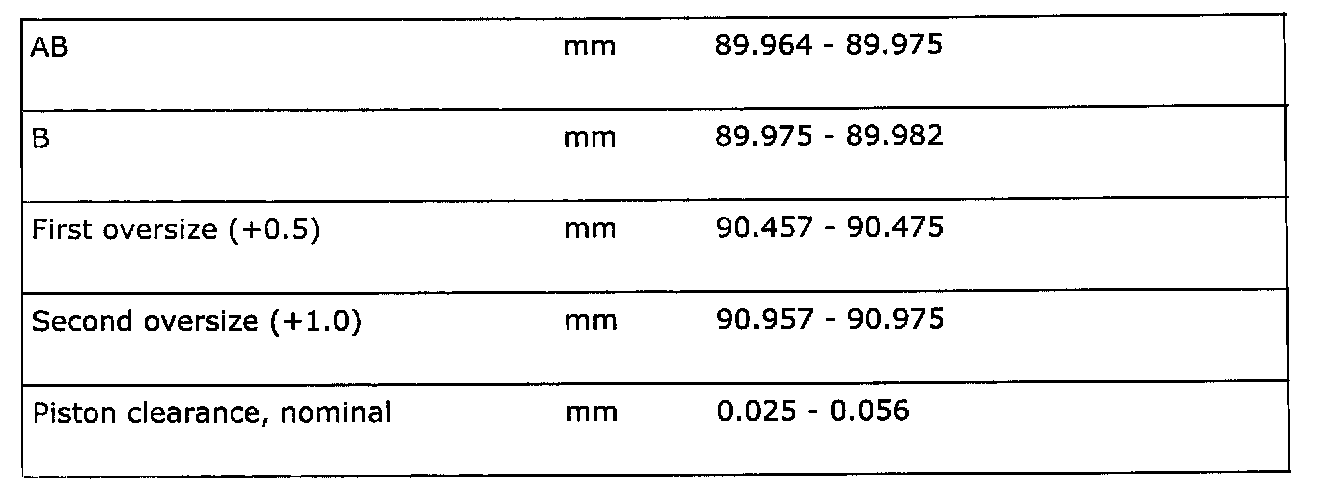

Specifications Table:

Piston diameter

Specifications Table:

Piston diameter is measured at right angles to the gudgeon pin holes, 11 mm from the bottom of the piston.

Piston Rings

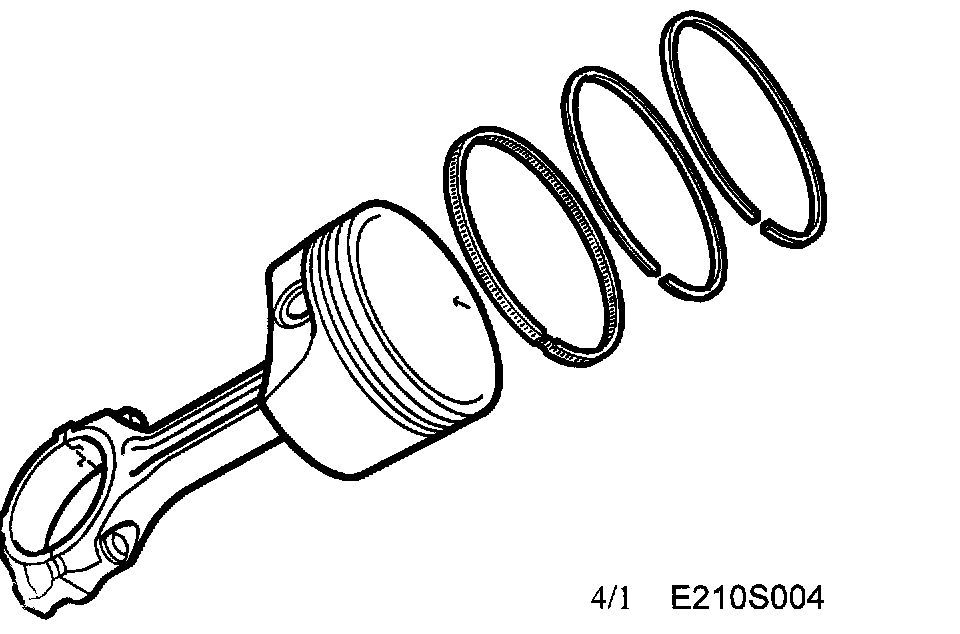

Component Illustration:

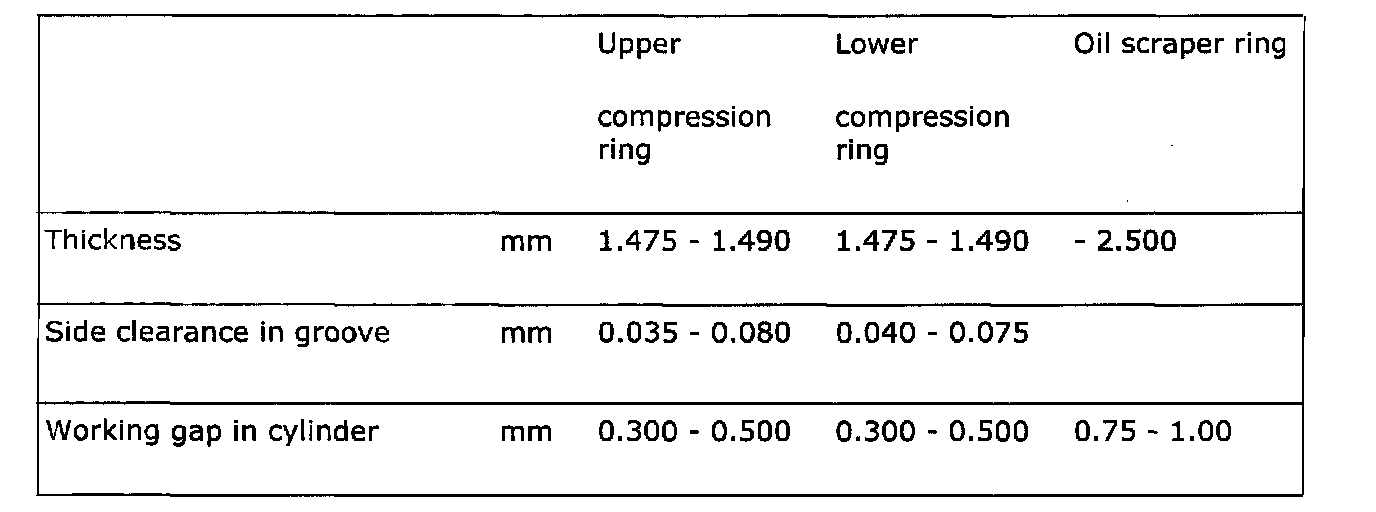

Specifications Table:

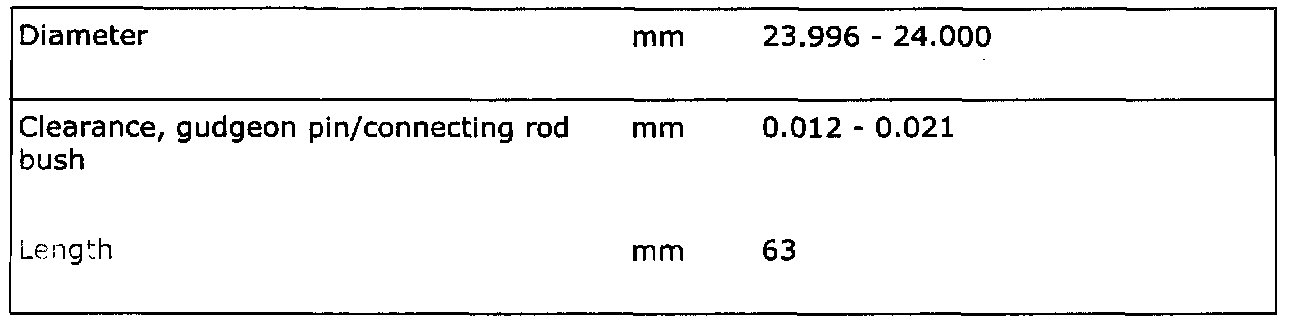

Gudgeon Pins
