Valve Gear

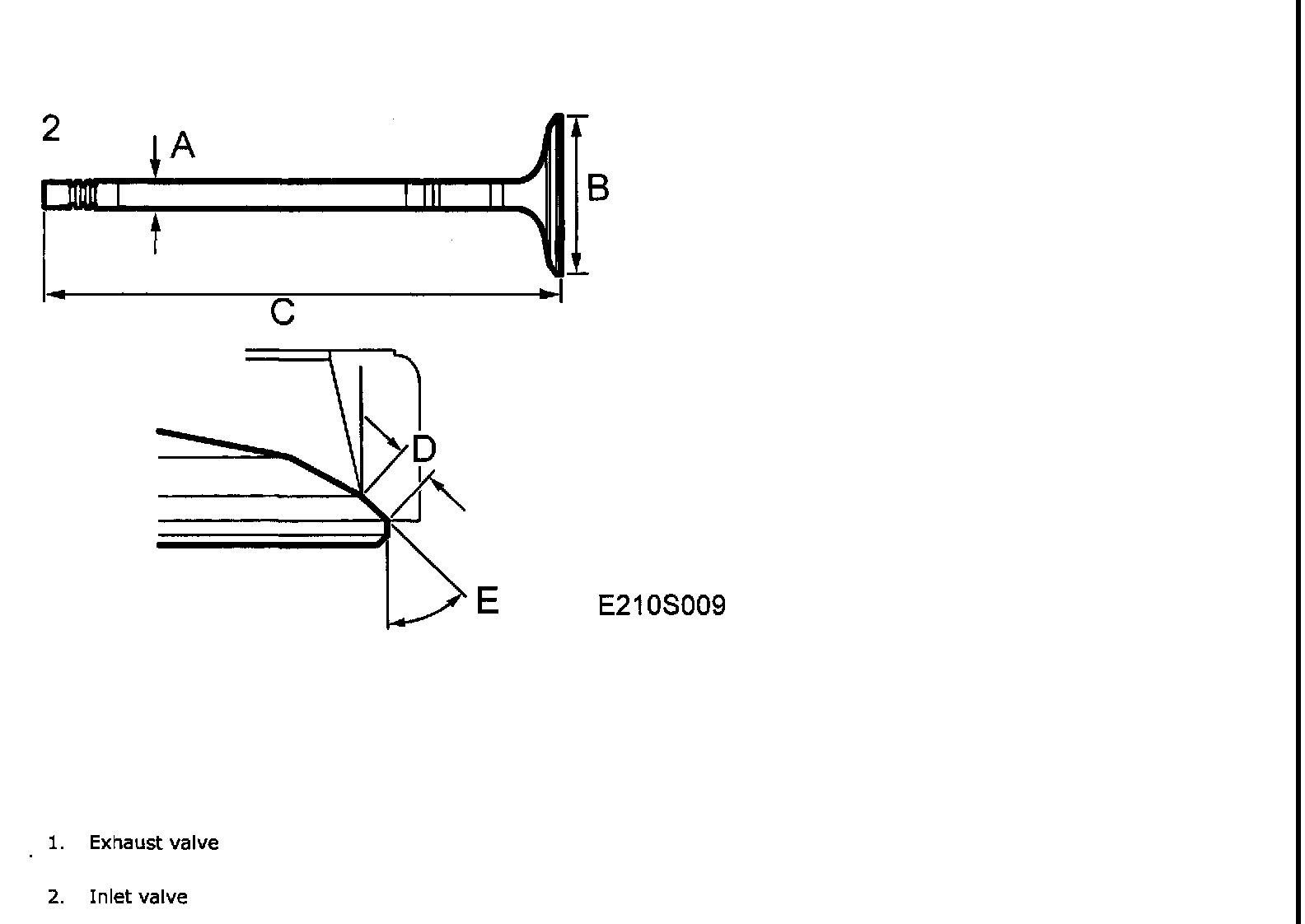

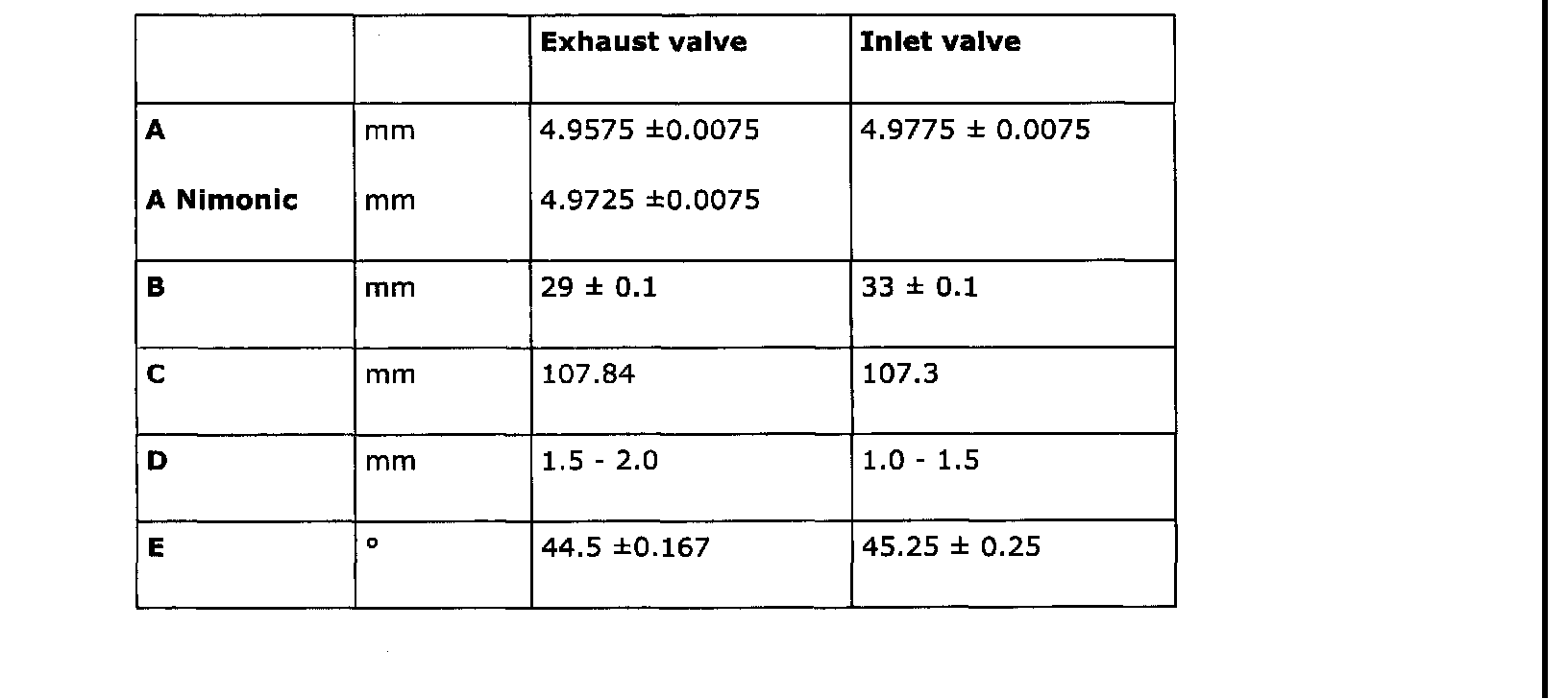

Valve Gear 1.
Exhaust valve
2.
Inlet valve

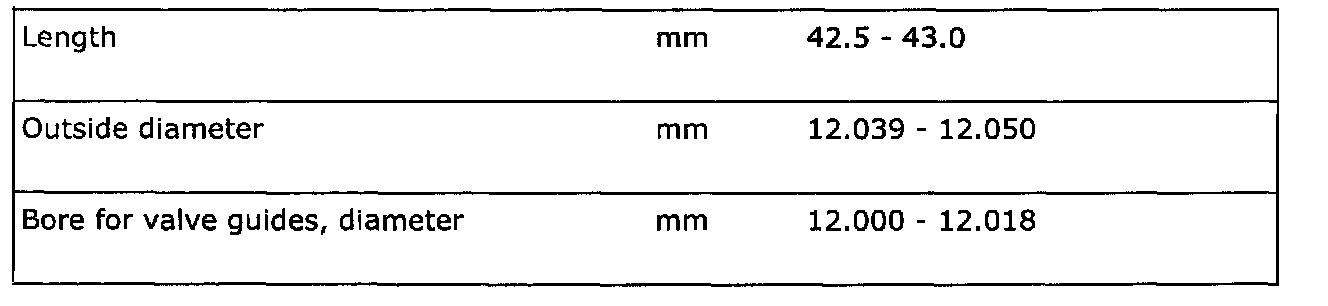

Valve Guides Maximum Lateral Clearance Between Valve Stem And Valve Guide Specifications Table:
Clearance is measured at the disc with the valve pulled out 3 mm from the seat.

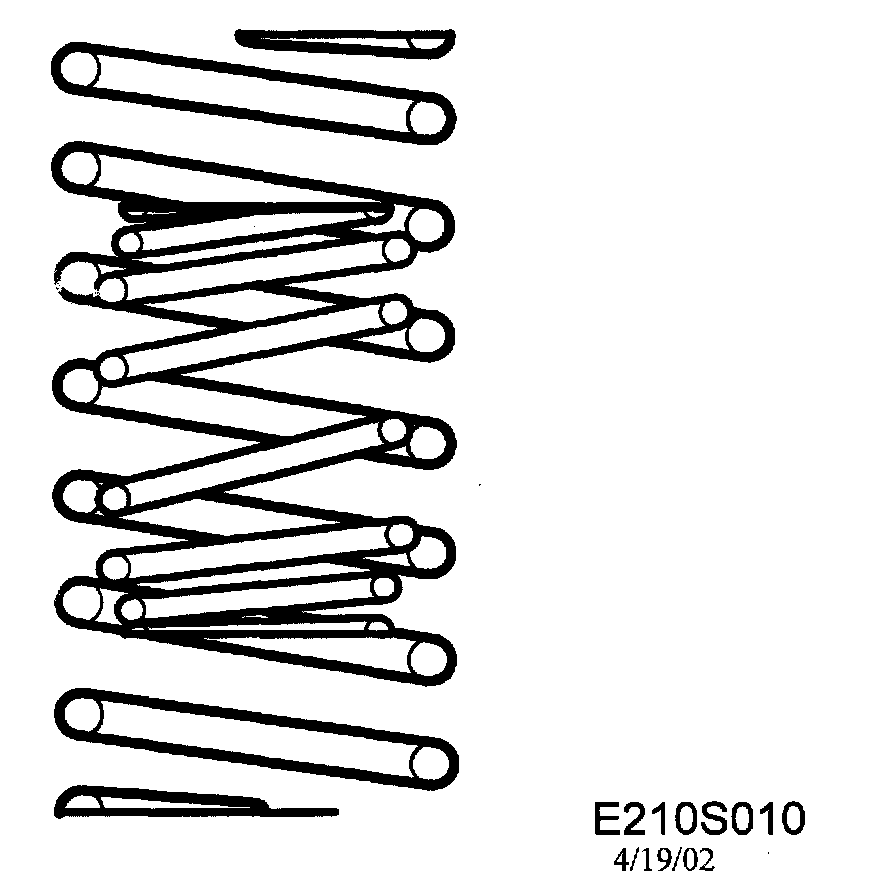

Valve Springs (Double Springs) Component Illustration:

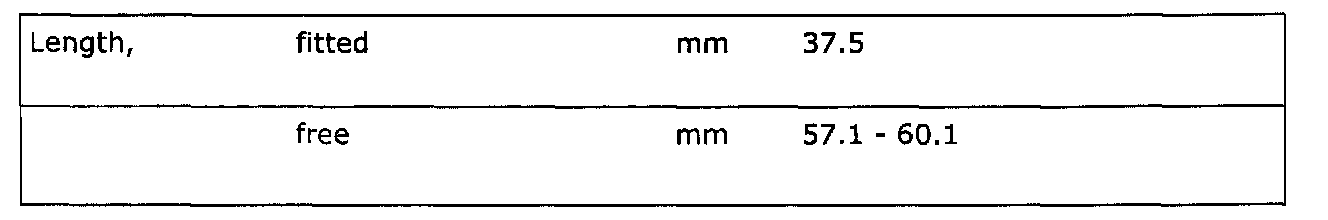

Specifications Table:

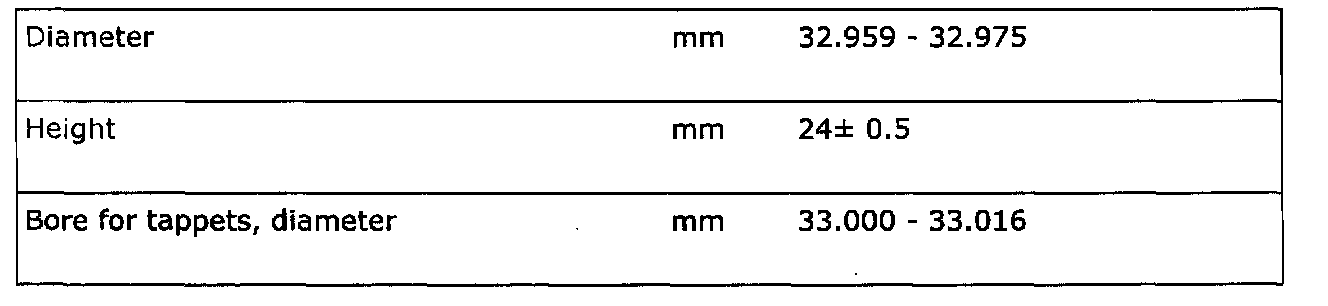

Tappets Specifications Tables:
