Alignment
Wheel Geometry This article has already been updated by Technical Service Bulleting (TSB) 631-2445 dated February 2004.
Standard Chassis Note: After wheel geometry adjustment, complete Steering Angle Sensor calibration.

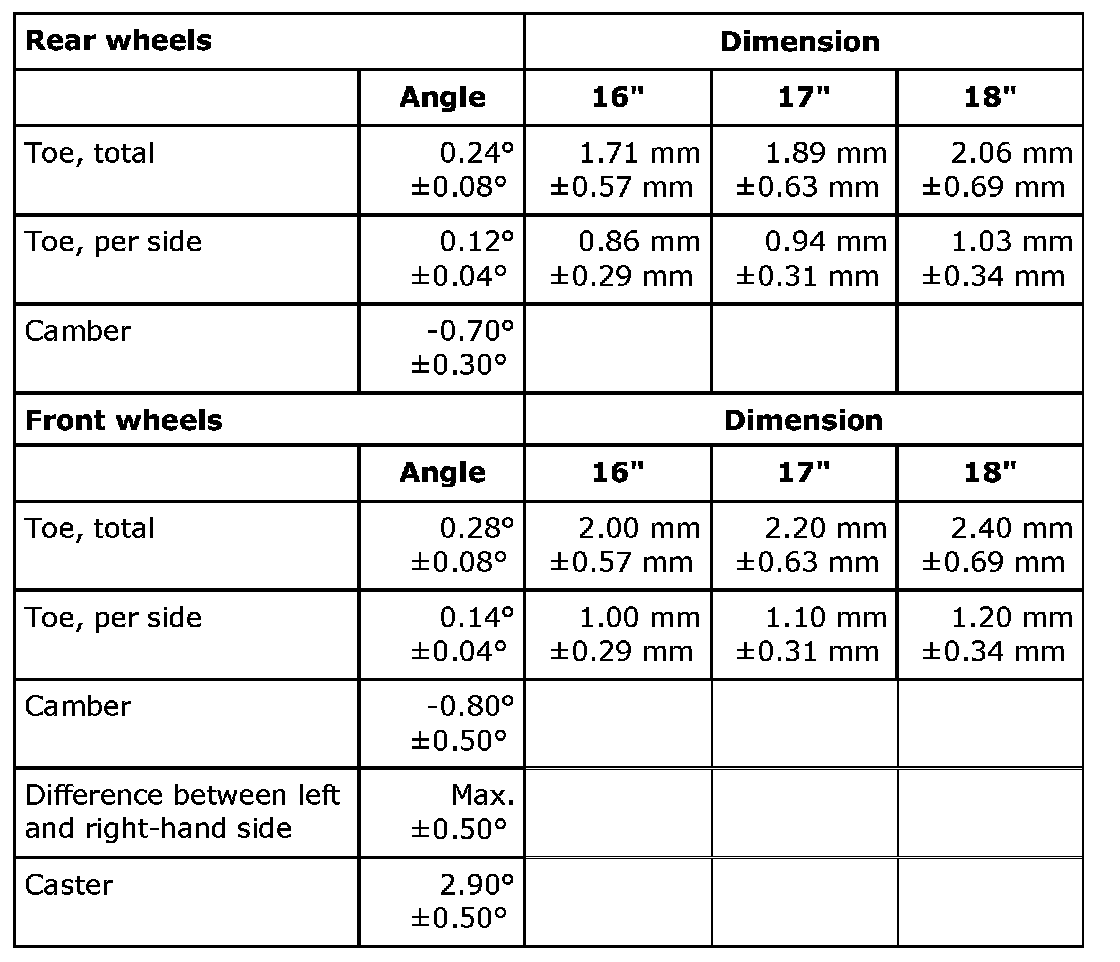

Standard Chassis:
Alignment
Sport Chassis Note: After wheel geometry adjustment, complete Steering Angle Sensor calibration.

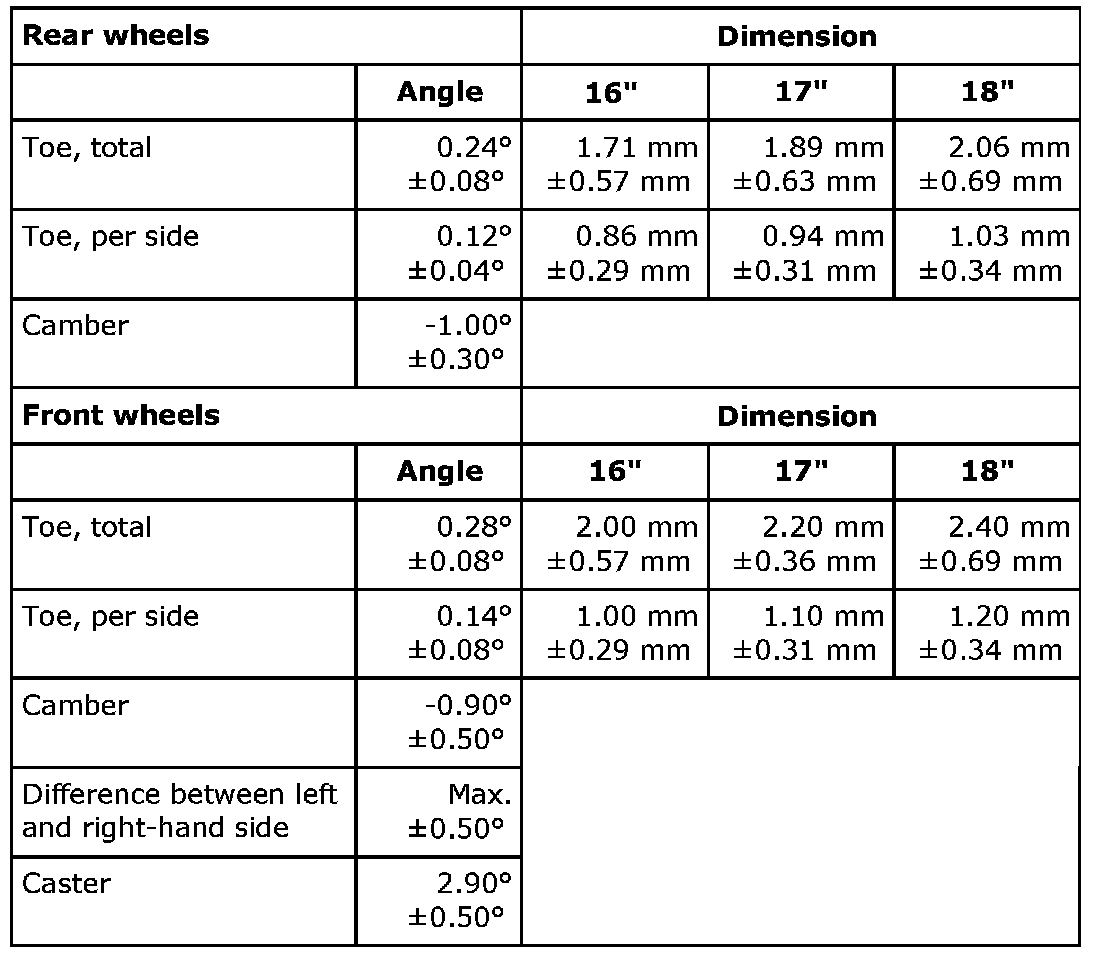

Sport Chassis:
Alignment
