Flex Plate

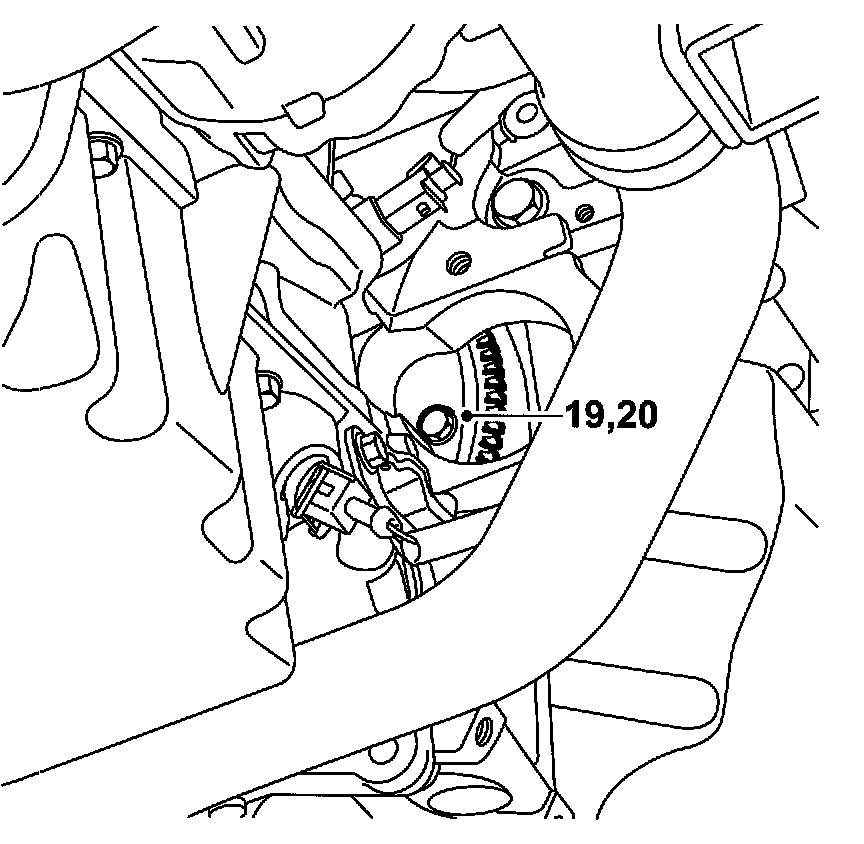

19.
Apply 74 96 268 Thread locking adhesive to the bolts holding the torque converter to the driver plate.
Note: Use the original bolts and washers. Using longer bolts will damage the torque converter.
20.
Fit the 6 bolts without tightening them.
Rotate the engine clockwise with the pulley and tighten the bolts once they are all in place.
Tightening torque
30 Nm (22 ft. lbs.)
