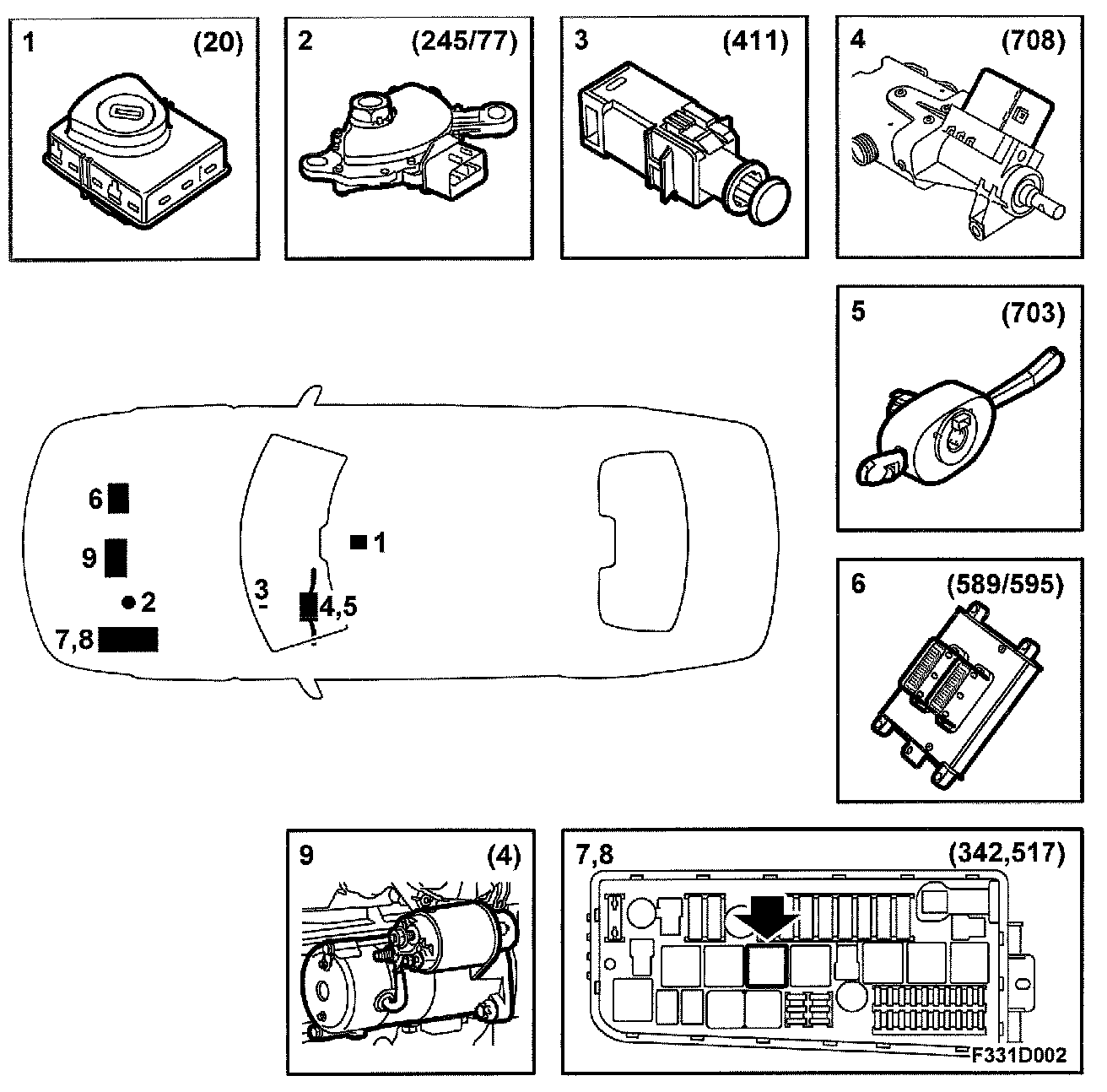

Main Components
Main Components:
Main Components 1.
Unit,
ignition switch, ISM (20)
2.
Transmission range switch/immobiliser switch, automatic (245/77)
3.
Switch, coupling, immobiliser (411)
4.
Steering Column Lock (708)
5.
Column Integration Module, CIM (703a)
6.
Engine Control Module (ECM)
7.
Relay, +50 (517)
8.
Underhood Electrical Centre, UEC (342)
9.
Starter motor (4)
